Removal Procedure

  1. Remove the case side cover. Refer to Case Side Cover Replacement  .
  2. Use a small flat-bladed tool in order to remove the wiring harness from the solenoid valve(s) (315A, 315B, 322, 334 and/or 440), TFP manual valve position switch (395) and/or the temperature sensor (391).

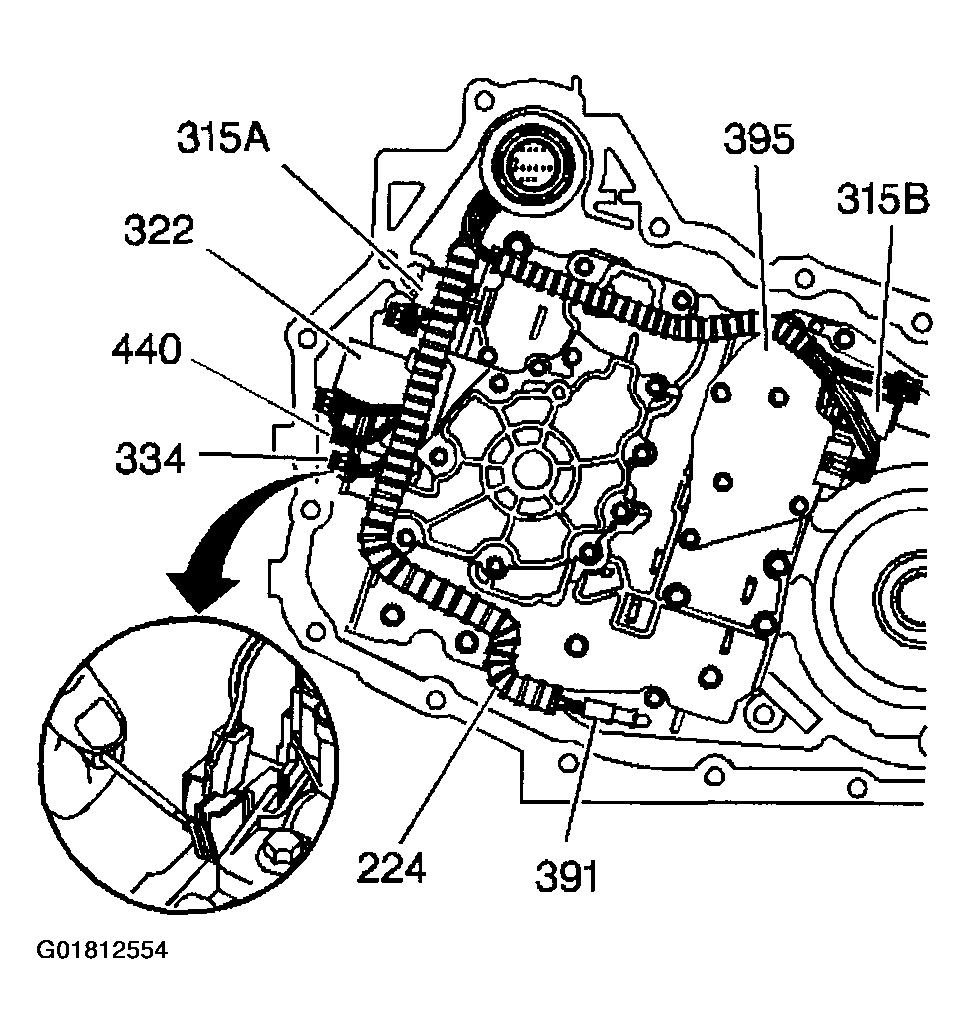

    Fig 1: Removing Wiring Harness From Solenoid Valves
    G01812554Courtesy of GENERAL MOTORS CORP.
  3. Remove the wiring harness (224).
  4. Remove the clips retaining the solenoid(s).

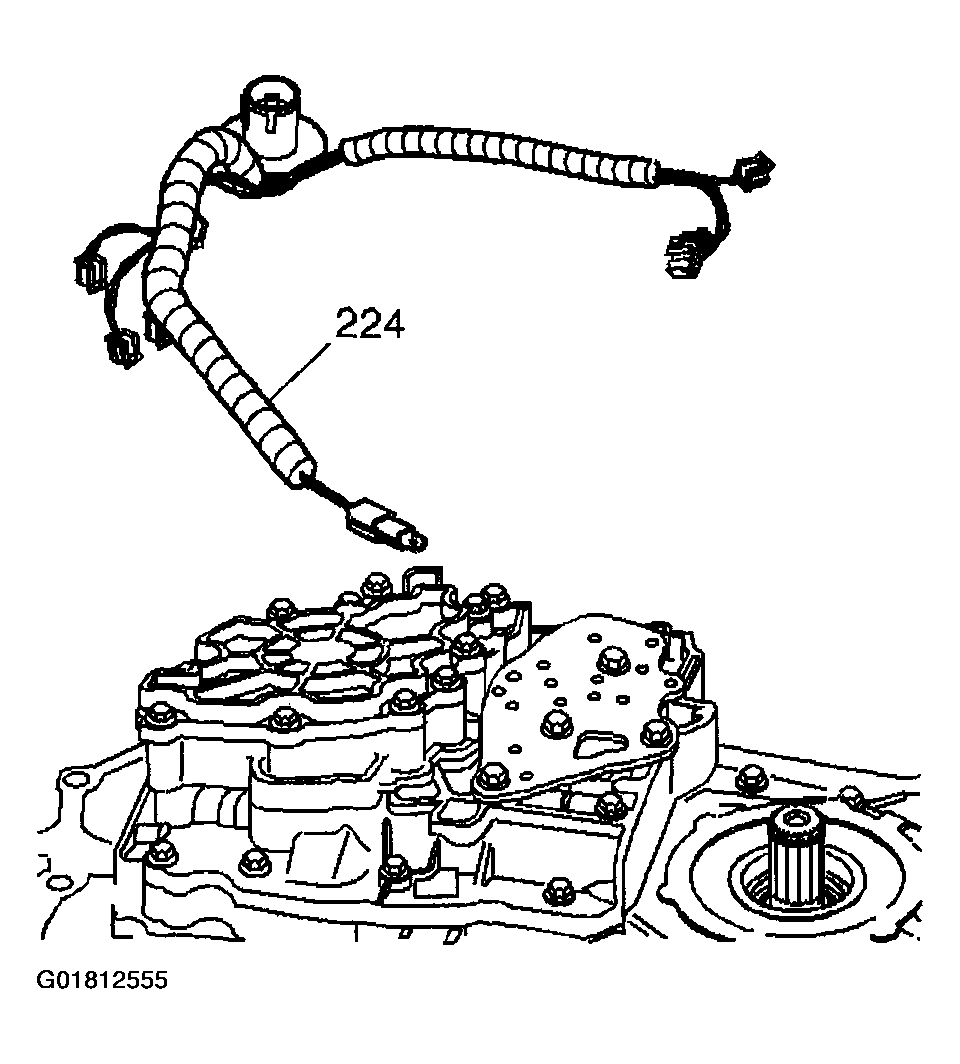

    Fig 2: Removing Wiring Harness
    G01812555Courtesy of GENERAL MOTORS CORP.
