Installation Procedure

  1. Connect the wiring harness (224).

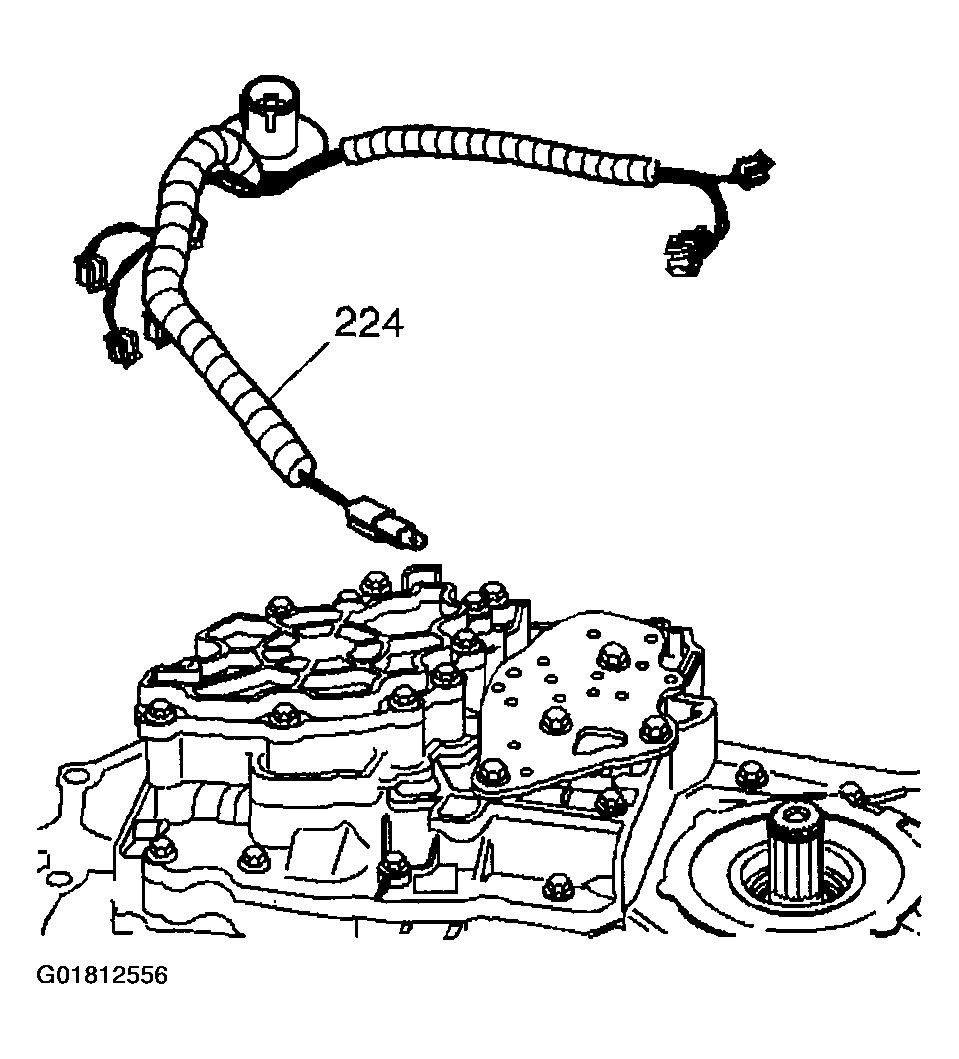

    Fig 1: Installing Wiring Harness
    G01812556Courtesy of GENERAL MOTORS CORP.
  2. Install the wiring harness to the solenoid valve(s) (315A, 315B, 322, 334 and/or 440), TFP manual valve position switch (395) and/or the temperature sensor (391).
  3. Install the case side cover. Refer to Case Side Cover Replacement  .

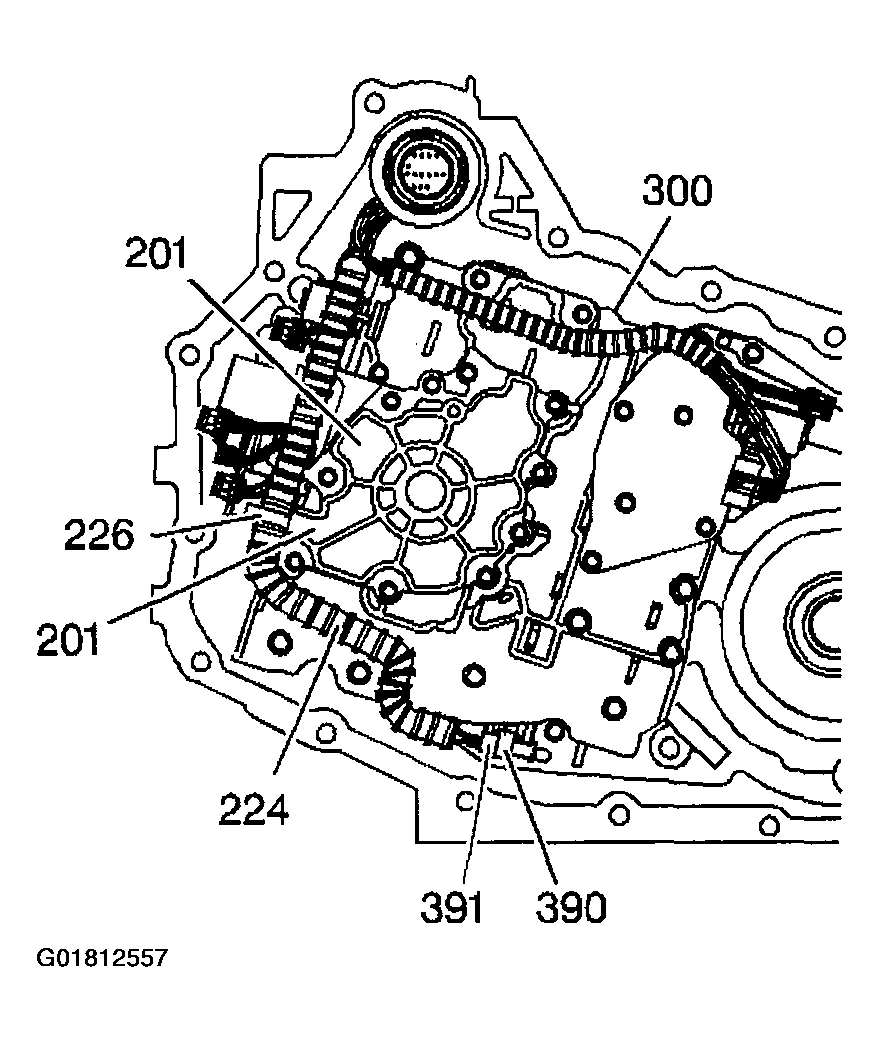

    Fig 2: Installing Wiring Harness From Solenoid Valves
    G01812557Courtesy of GENERAL MOTORS CORP.
