Installation Procedure

  1. Install the O-ring seal (11) to the vehicle speed sensor (10).
  2. Install the vehicle speed sensor to the extension case.
    NOTE: Refer to FASTENER NOTICE

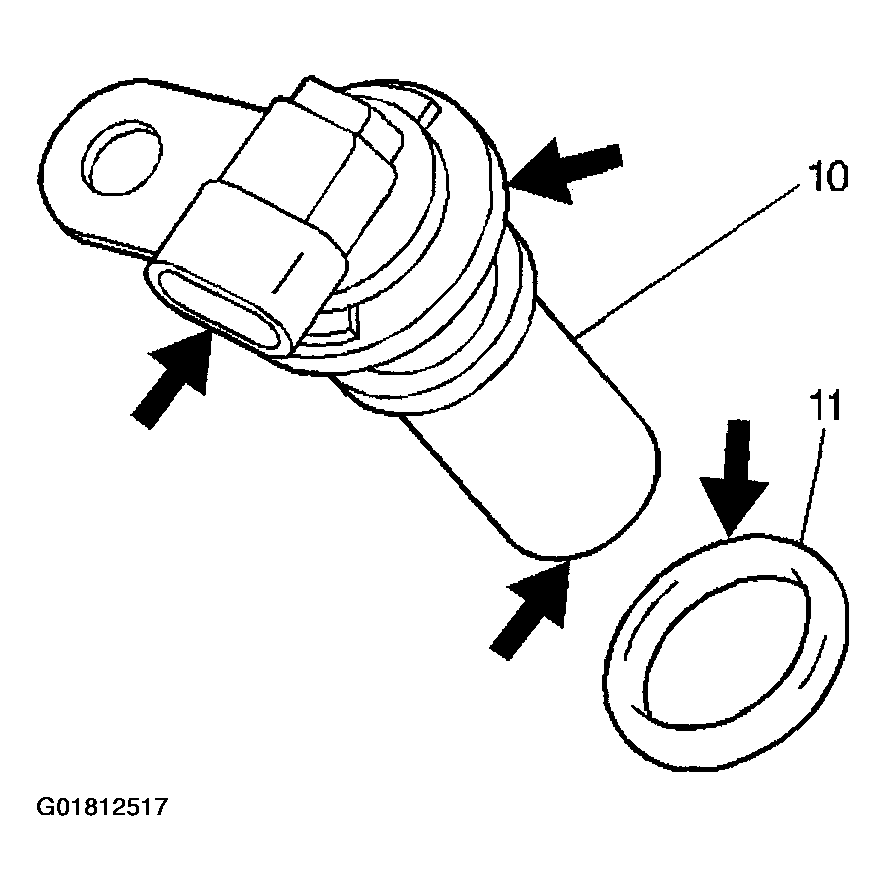

    Fig 1: Installing Vehicle Speed Sensor & O-Ring Seal
    G01812517Courtesy of GENERAL MOTORS CORP.
  3. Install the vehicle speed sensor bolt (9).

    Tighten

    Tighten the bolt to 12 N.m (106 lb in).

  4. Install the vehicle speed sensor wiring harness connector.

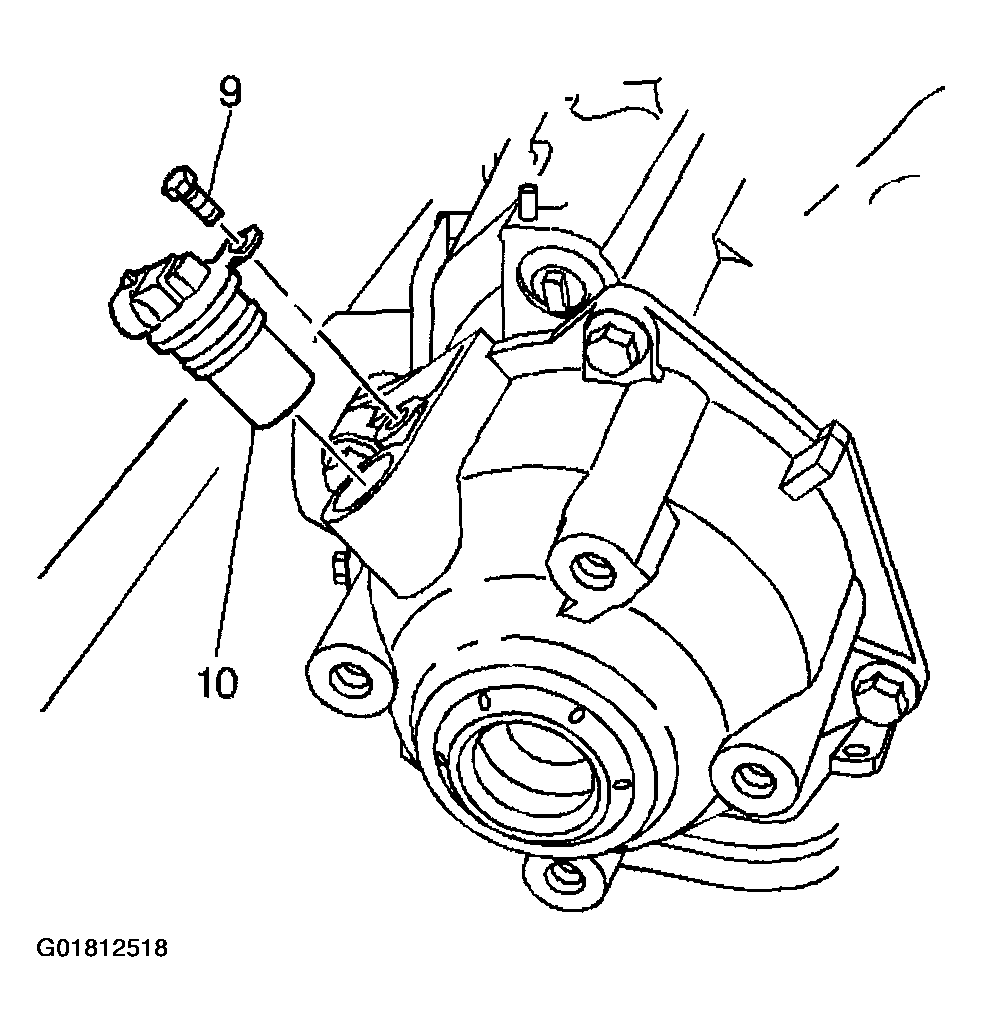

    Fig 2: Installing Vehicle Speed Sensor & Extension Case
    G01812518Courtesy of GENERAL MOTORS CORP.
  5. Install the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .
  6. Install the right front tire and wheel. TIRE AND WHEEL REMOVAL AND INSTALLATION .
  7. Lower the vehicle.

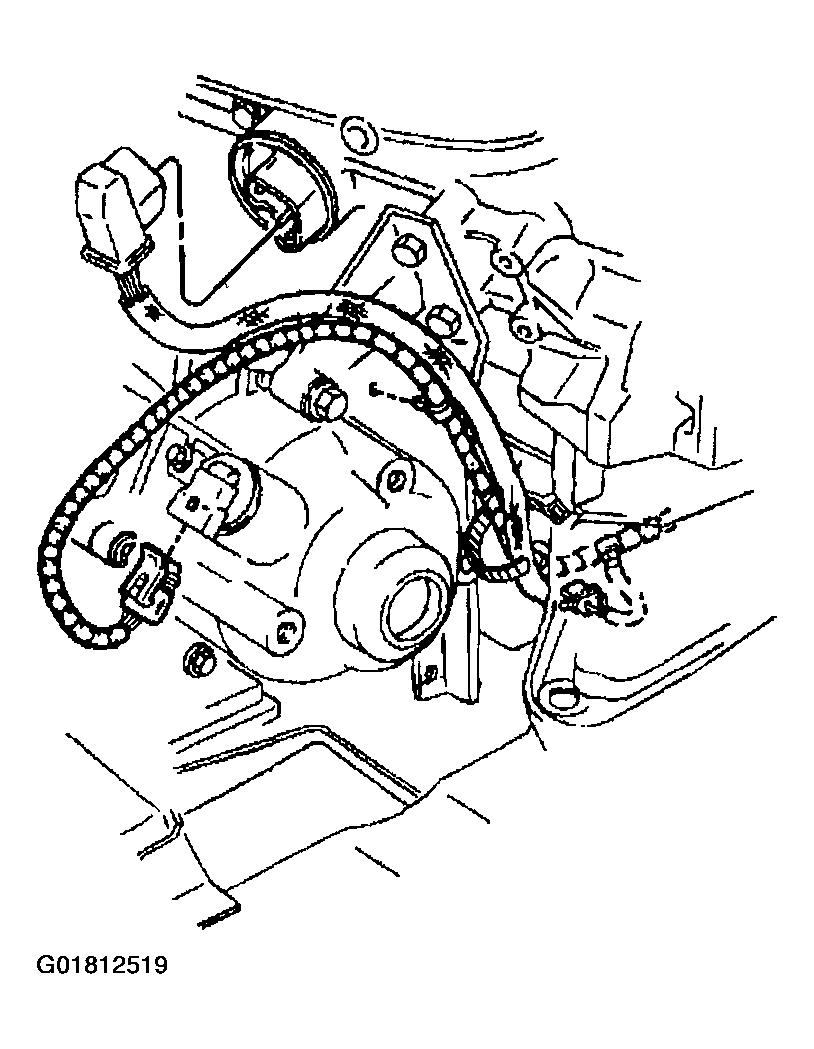

    Fig 3: Installing Vehicle Speed Sensor Wiring Harness Connector
    G01812519Courtesy of GENERAL MOTORS CORP.
