Home >> Chevrolet >> 2001 >> Venture Base, Van Passenger >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle -- 4T65-E - Service & Repair >> Repair Instructions >> Transmission Vent Replacement >> Removal Procedure

Removal Procedure

  1. Remove the air cleaner intake duct.
  2. Use a hammer and a chisel in order to raise the transaxle vent seat off of the transaxle.
  3. Use a flat-bladed tool in order to pry the transaxle vent (37) out of the transaxle.

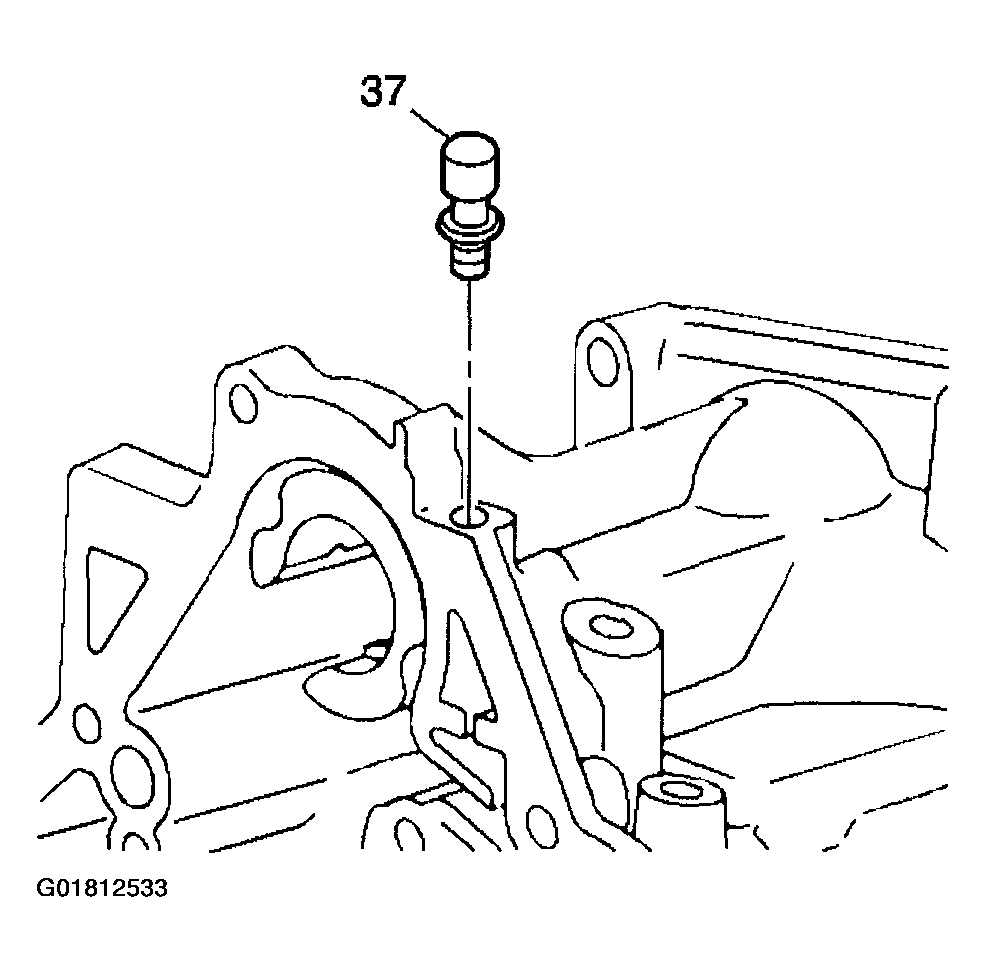

    Fig 1: Removing Transaxle Vent
    G01812533Courtesy of GENERAL MOTORS CORP.
