Installation Procedure

  1. Use a small hammer and a flat-bladed tool and tap down on the transaxle vent seat in order to install the transaxle vent (37).
  2. Install the air cleaner intake duct.

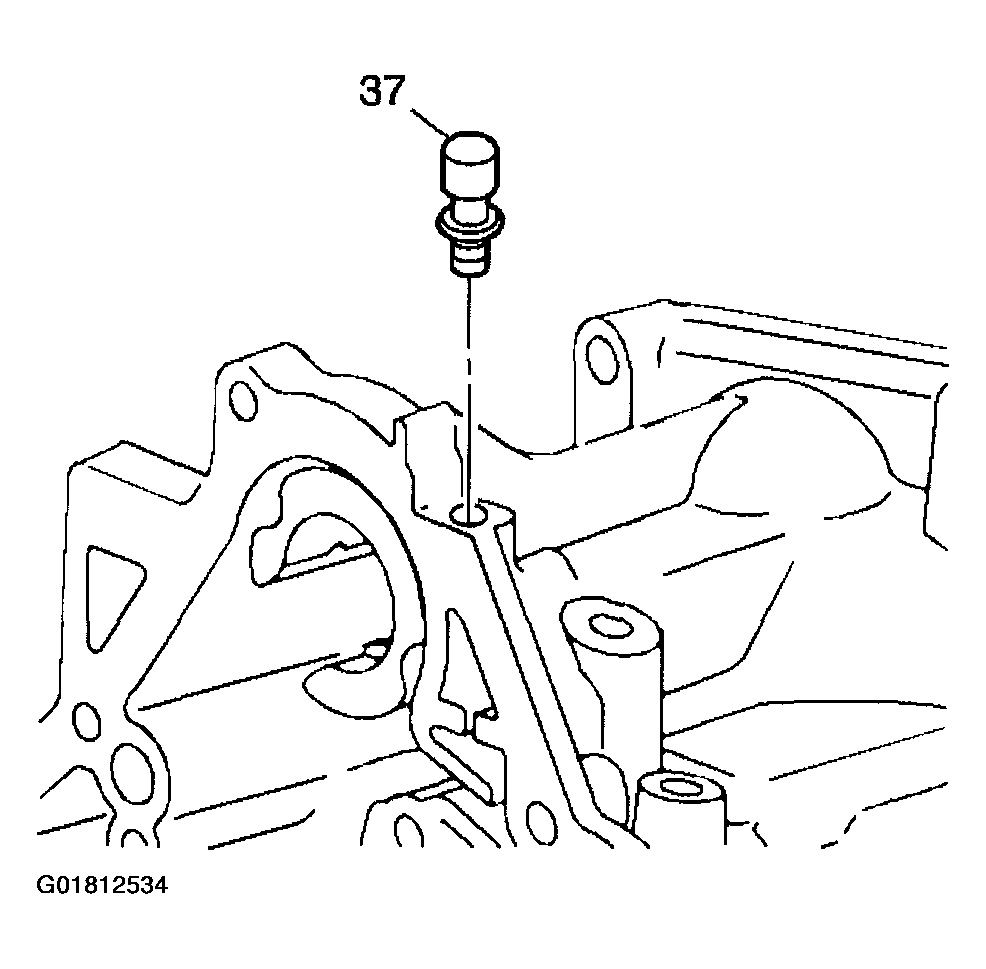

    Fig 1: Installing Transaxle Vent
    G01812534Courtesy of GENERAL MOTORS CORP.
