Removal Procedure

  1. Remove the case side cover. Refer to Case Side Cover Replacement  .
  2. Disconnect the transaxle wiring harness.
  3. Remove the control valve body bolts (375, 379 and 381) that mount the fluid pressure manual valve position switch to the control valve body (300).
  4. Carefully remove the fluid pressure manual valve position switch. Handle the switch carefully, the fluid pressure manual valve position switch is very delicate.

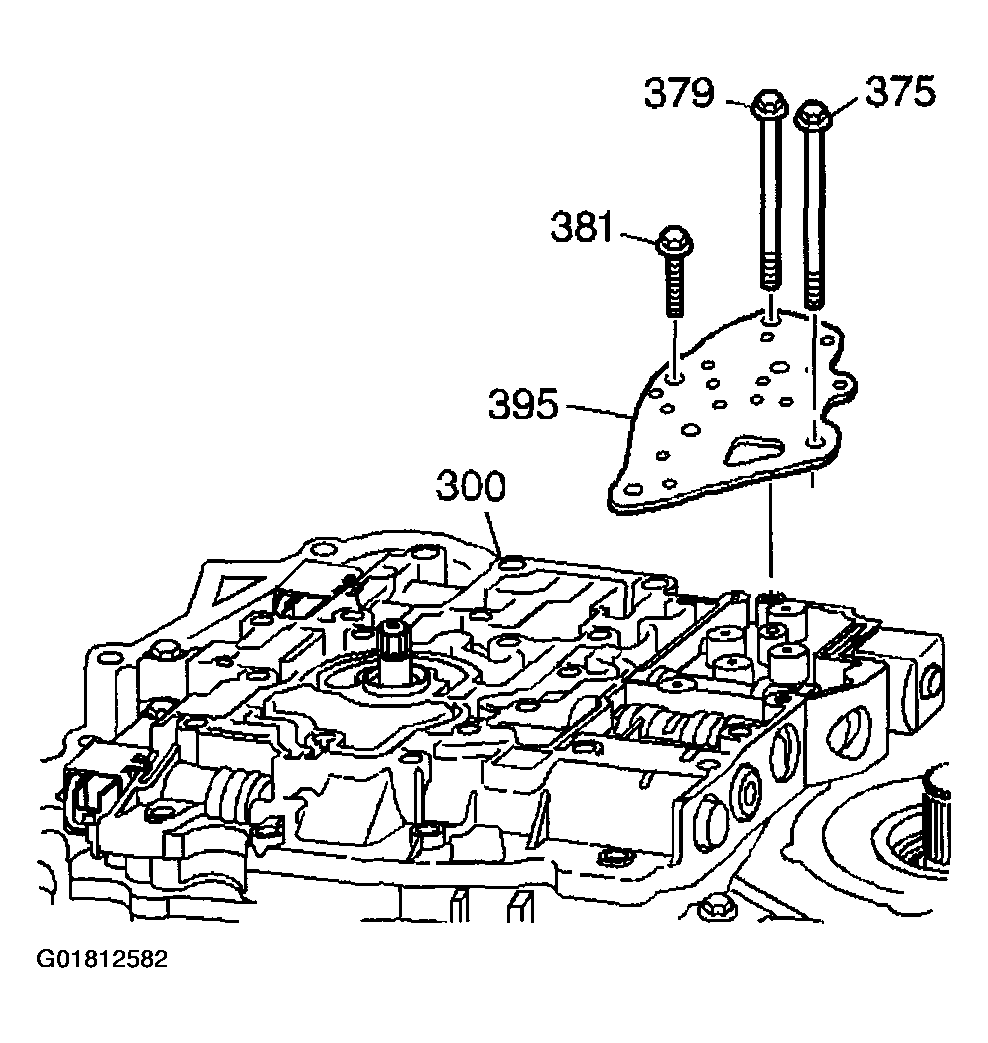

    Fig 1: Removing Control Valve Body & Bolts
    G01812582Courtesy of GENERAL MOTORS CORP.

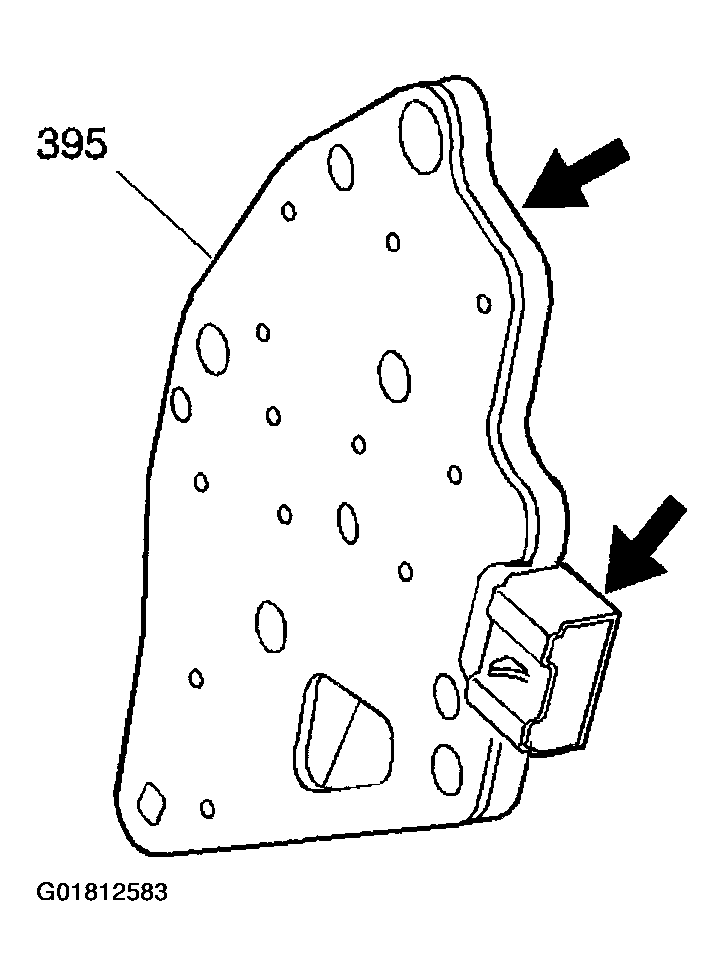

  5. Inspect the fluid pressure manual valve position switch (395) for the following conditions:
