Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the torque converter cover bolts.
  3. Remove the torque converter cover.

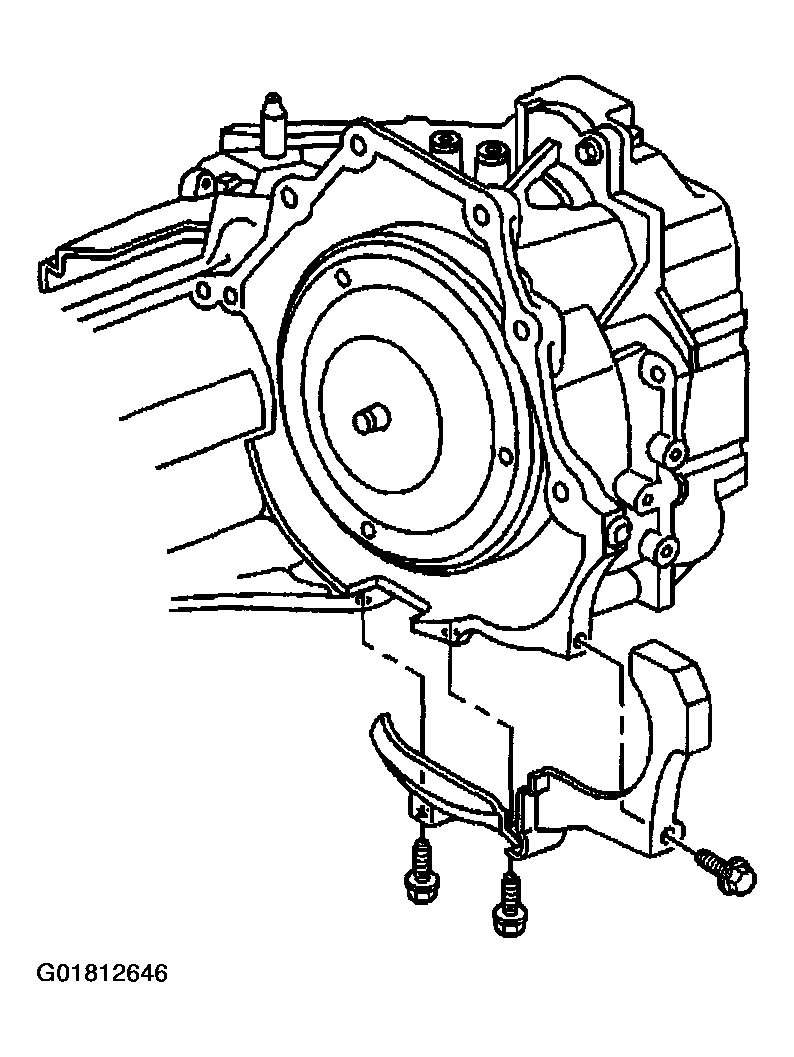

    Fig 1: Removing Torque Converter Cover & Bolts
    G01812646Courtesy of GENERAL MOTORS CORP.
