Removal Procedure

  1. Remove the case side cover. Refer to Case Side Cover Replacement  .
  2. Disconnect the transaxle wiring harness.
  3. Remove the torque converter clutch PWM solenoid (334).

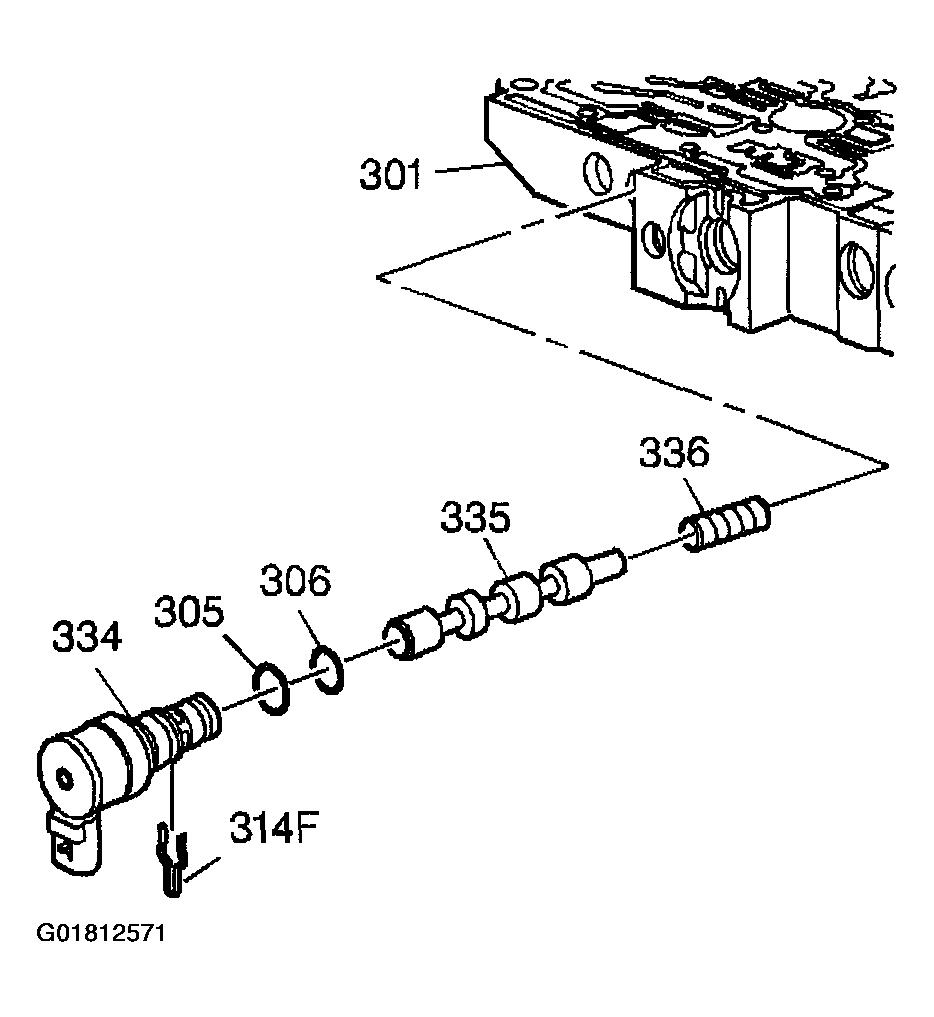

    Fig 1: Removing Torque Converter Clutch PWM Solenoid
    G01812571Courtesy of GENERAL MOTORS CORP.
