Installation Procedure

  1. Install the torque converter clutch PWM solenoid (334).
  2. Connect the transaxle wiring harness.
  3. Install the case side cover. Refer to Case Side Cover Replacement  .

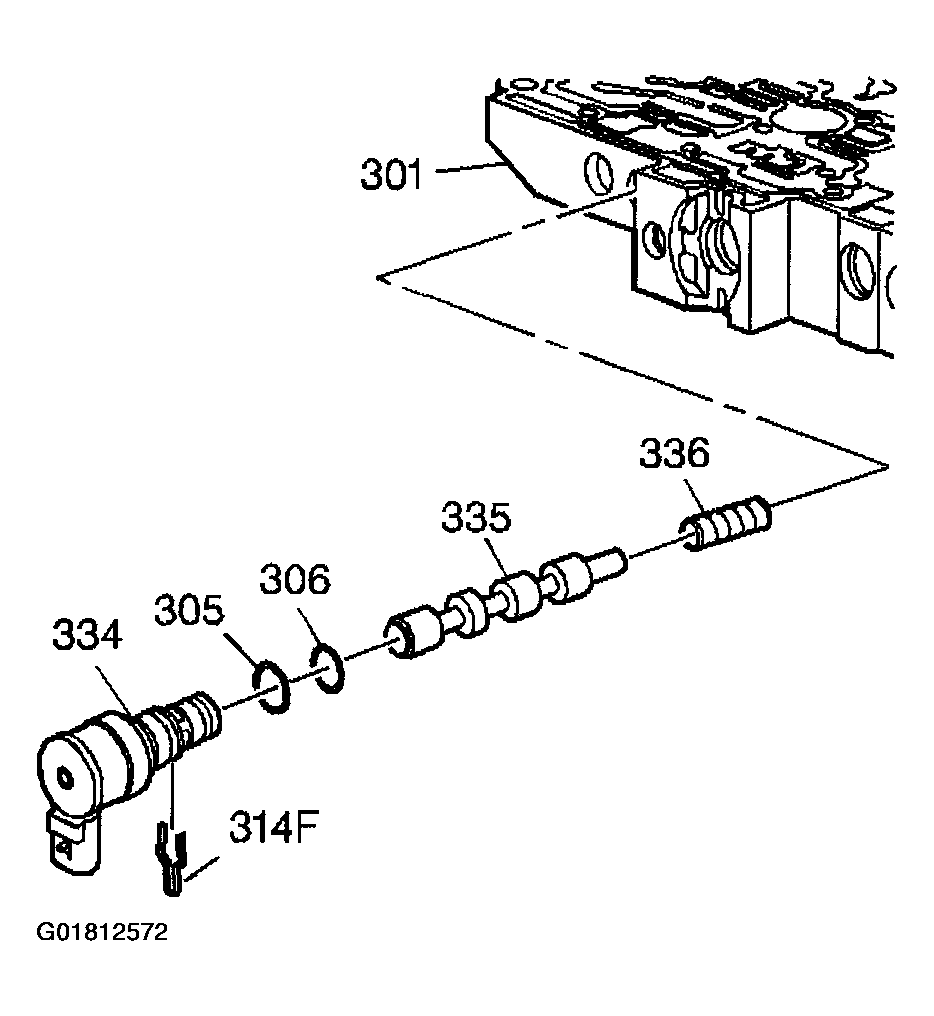

    Fig 1: Installing Torque Converter Clutch PWM Solenoid
    G01812572Courtesy of GENERAL MOTORS CORP.
