Removal Procedure

  1. Remove the case side cover. Refer to Case Side Cover Replacement
  2. Disconnect the transaxle wiring harness.
  3. Remove the pressure control solenoid (322).

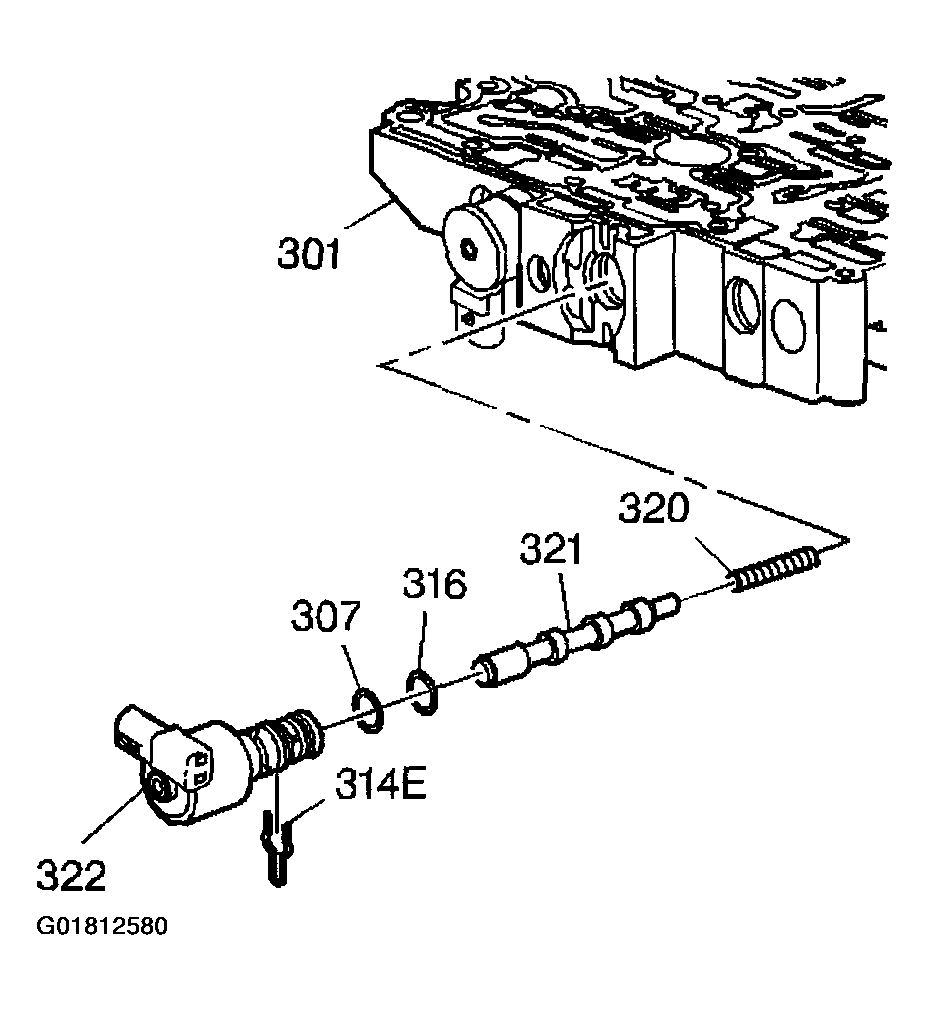

    Fig 1: Removing Pressure Control Solenoid
    G01812580Courtesy of GENERAL MOTORS CORP.
