Installation Procedure

  1. Install the pressure control solenoid (322).
  2. Connect the transaxle wiring harness.
  3. Install the case side cover. Refer to Case Side Cover Replacement  .

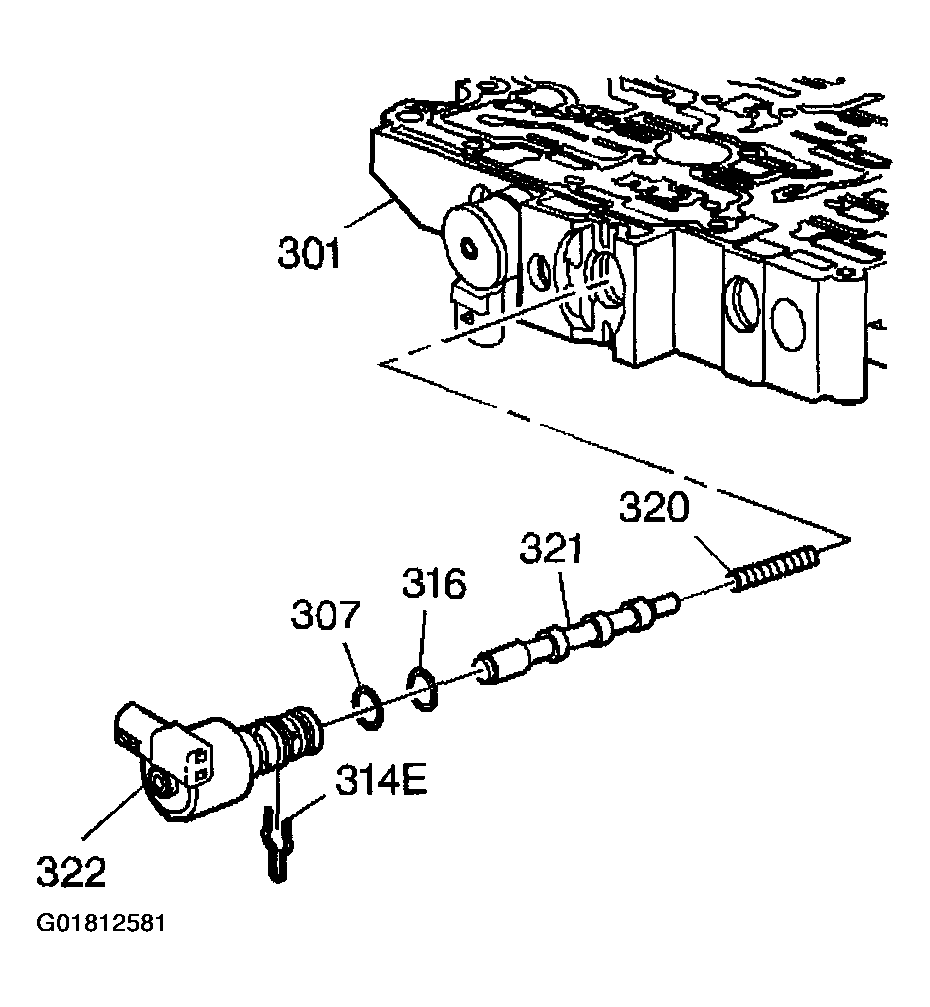

    Fig 1: Installing Pressure Control Solenoid
    G01812581Courtesy of GENERAL MOTORS CORP.
