Removal Procedure

  1. Apply the parking brake.
  2. Block the wheels.
  3. Shift the transmission into Neutral.
  4. Remove the throttle body air inlet duct.
  5. Use a flat-bladed tool in order to remove the automatic transaxle range selector cable from the cable lever.

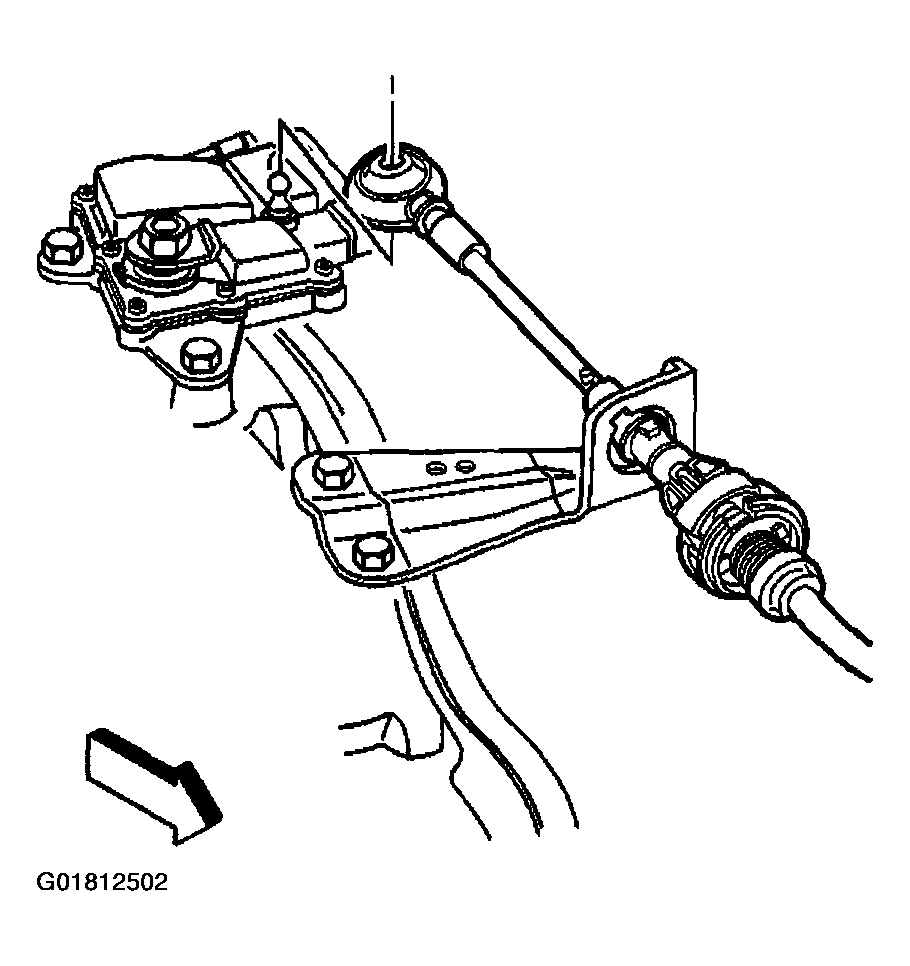

    Fig 1: Removing Automatic Transaxle Range Selector Cable & Cable Lever
    G01812502Courtesy of GENERAL MOTORS CORP.
  6. Remove the electrical connectors.

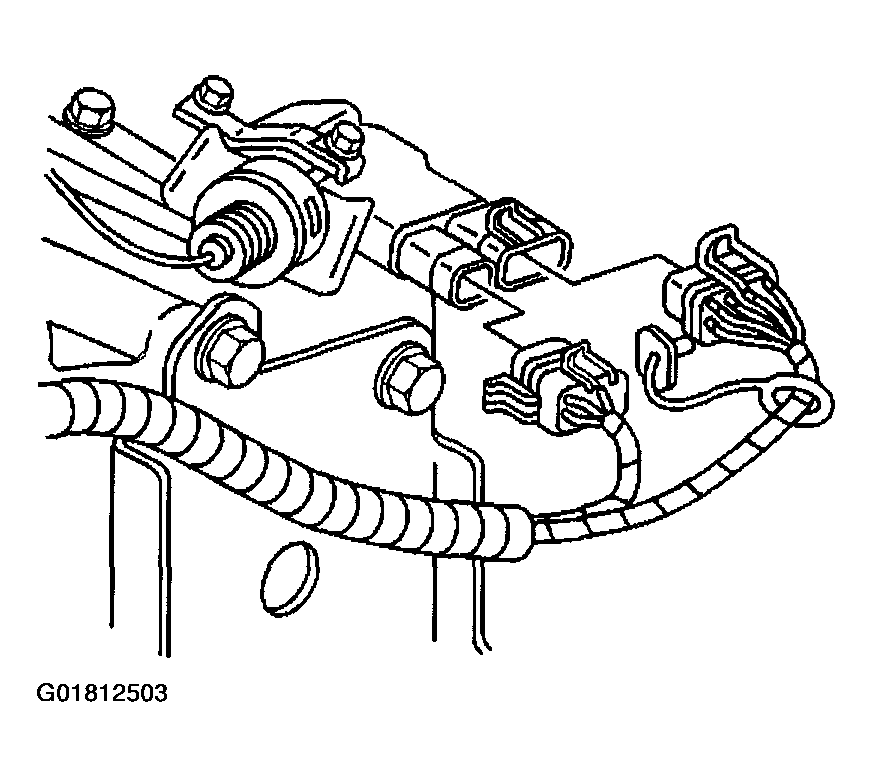

    Fig 2: Removing Electrical Connectors
    G01812503Courtesy of GENERAL MOTORS CORP.
  7. Remove the automatic transaxle range selector lever. Refer to Automatic Transmission Range Selector Cable Lever Replacement
  8. Remove the PNP switch bolts.

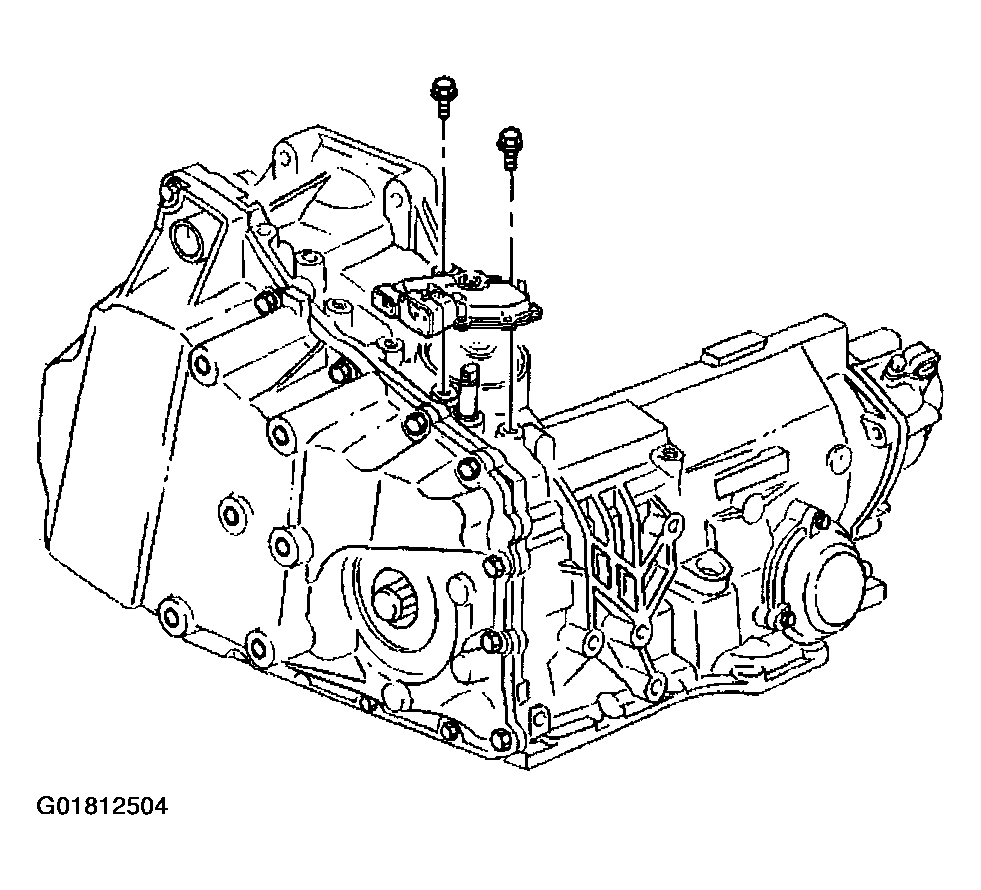

    Fig 3: Removing PNP Switch & Bolts
    G01812504Courtesy of GENERAL MOTORS CORP.
  9. Remove the PNP switch.
