Removal Procedure

  1. Remove the case side cover. Refer to Case Side Cover Replacement
  2. Remove the oil reservoir weir (27).

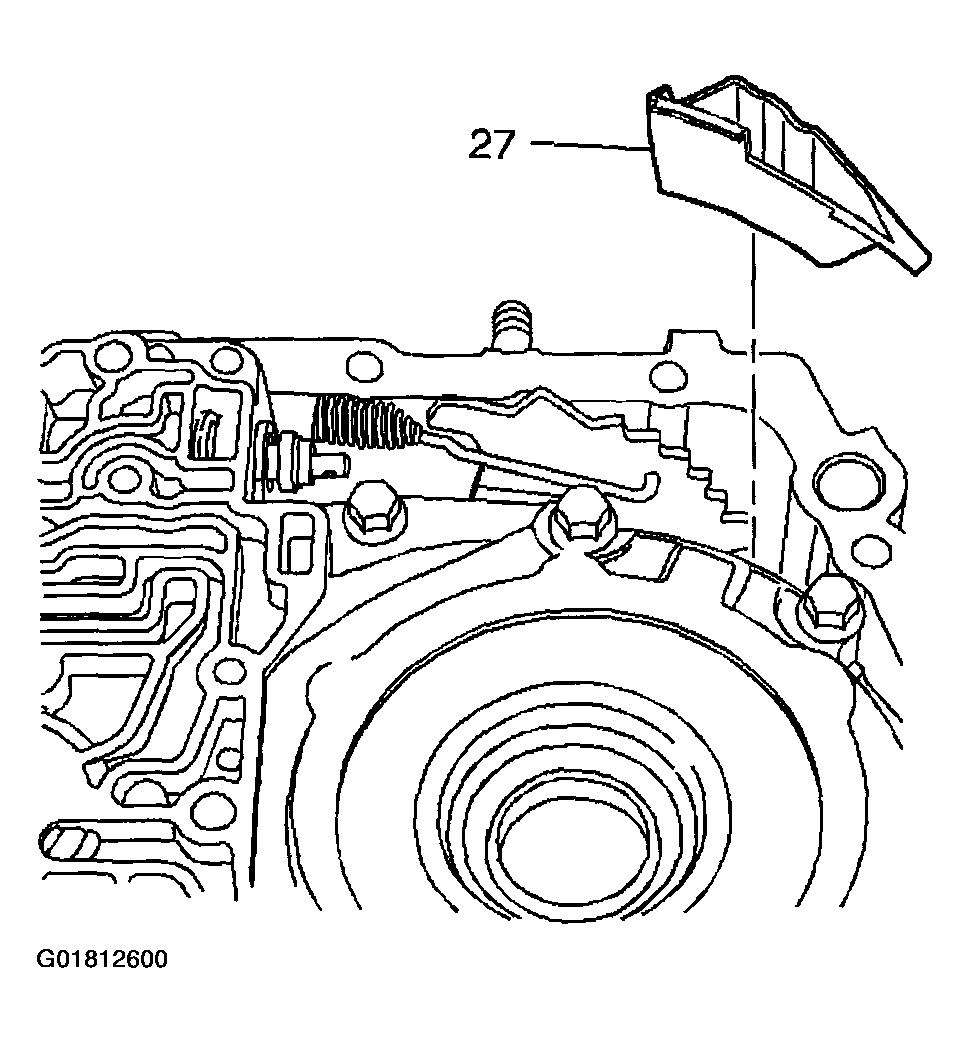

    Fig 1: Removing Oil Reservoir Weir
    G01812600Courtesy of GENERAL MOTORS CORP.
