Removal Procedure

  1. Remove the case side cover. Refer to Case Side Cover Replacement  .
    NOTE: Do NOT remove the three bolts which hold the pump together
  2. Remove the oil pump bolts (205-207).
  3. Remove the oil pump (200) from the valve body (300).

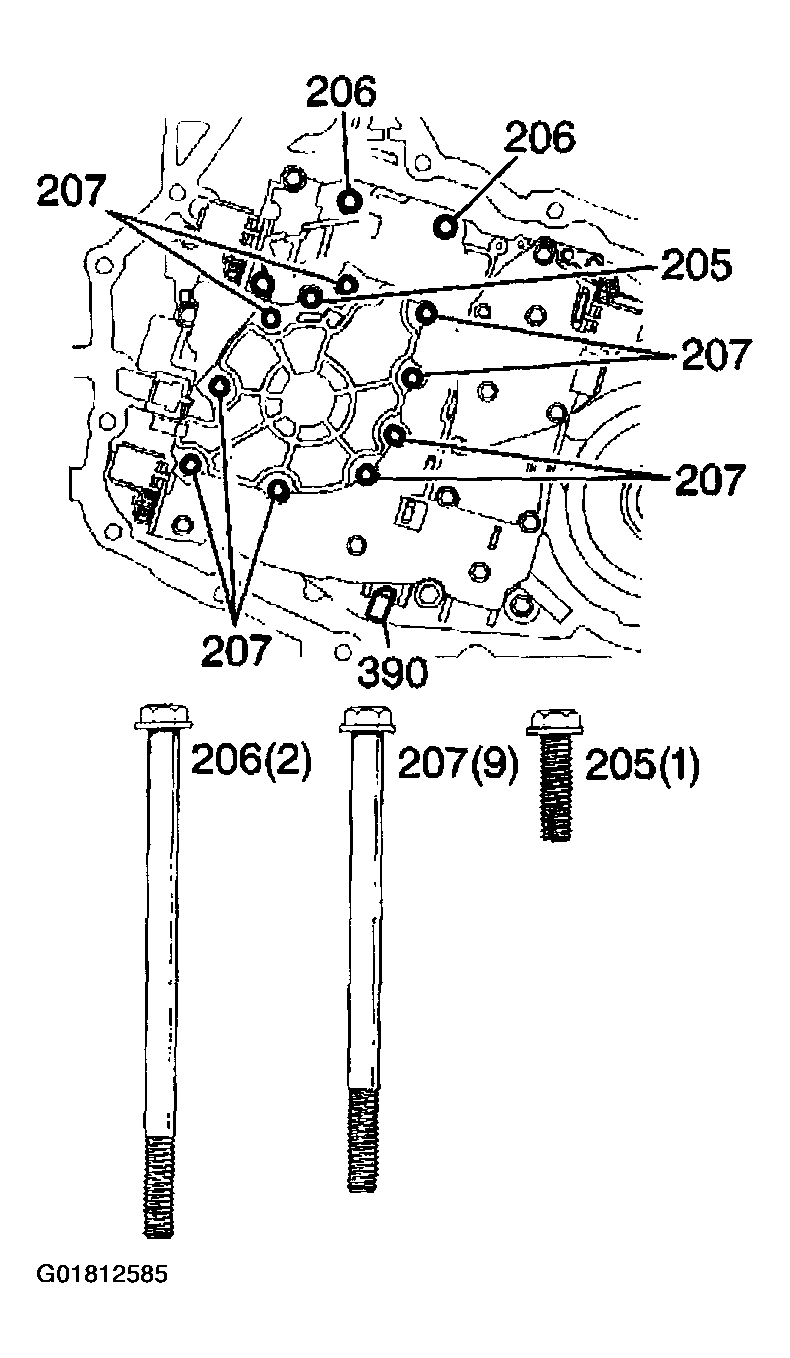

    Fig 1: Removing Oil Pump & Bolts
    G01812585Courtesy of GENERAL MOTORS CORP.
  4. Clean and inspect the oil pump.

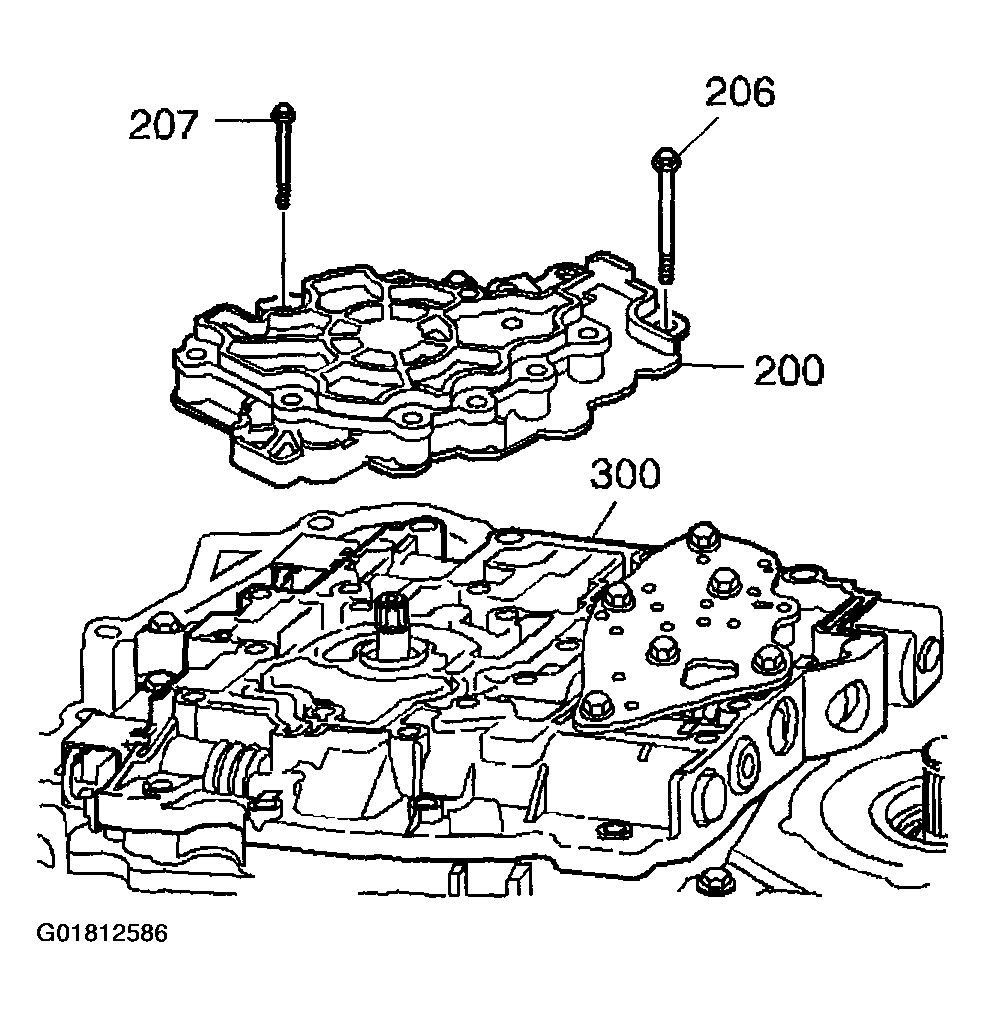

    Fig 2: Inspecting Oil Pump
    G01812586Courtesy of GENERAL MOTORS CORP.
