Installation Procedure

  1. Install the oil pump (200) to valve body (300).
    NOTE: Refer to FASTENER NOTICE

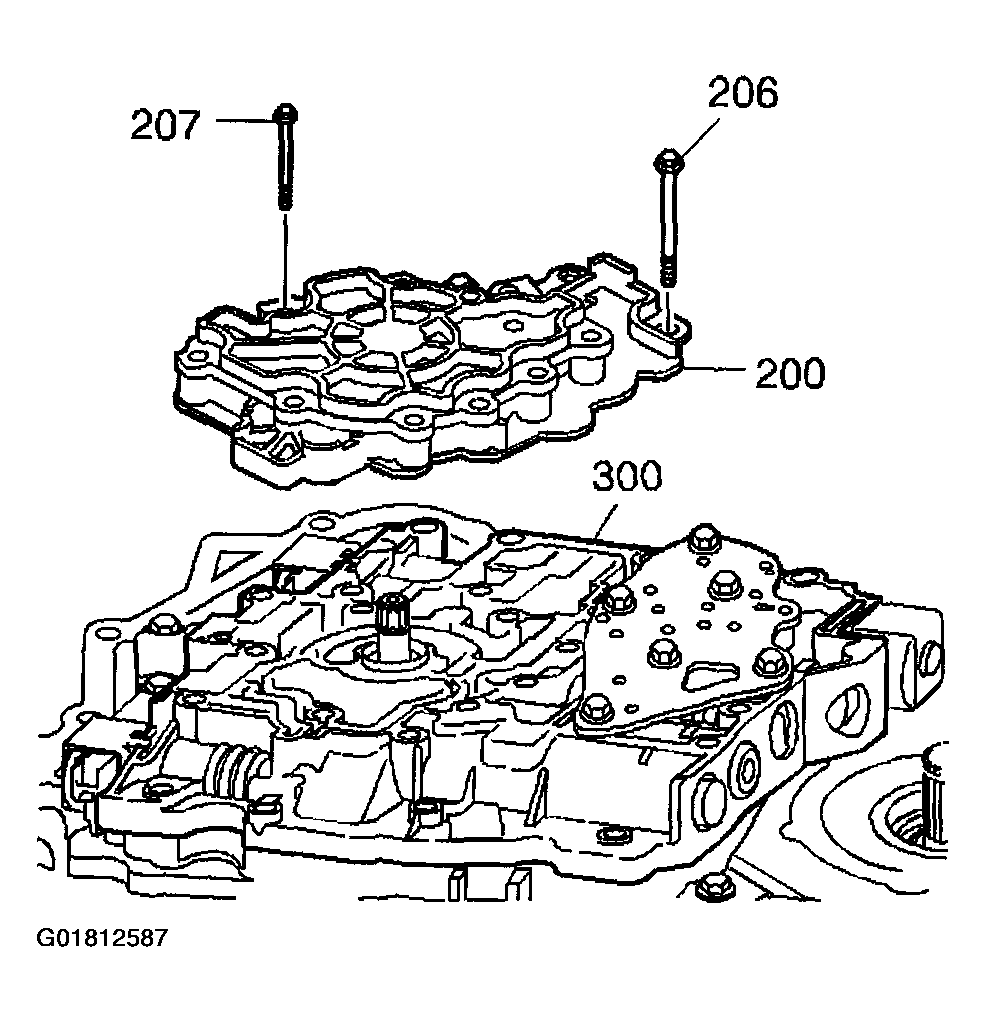

    Fig 1: Installing Oil Pump & Bolts
    G01812587Courtesy of GENERAL MOTORS CORP.
  2. Install the oil pump bolts (205-207).

    Tighten

    • Tighten the M6 X 1.0 X 20 bolt to 8 N.m (70 lb in).
    • Tighten the M6 X 1.0 X 85 bolt to 12 N.m (106 lb in).
    • Tighten the M6 X 1.0 X 95 bolt to 16 N.m (11 lb ft).
  3. Install the case side cover. Refer to Case Side Cover Replacement

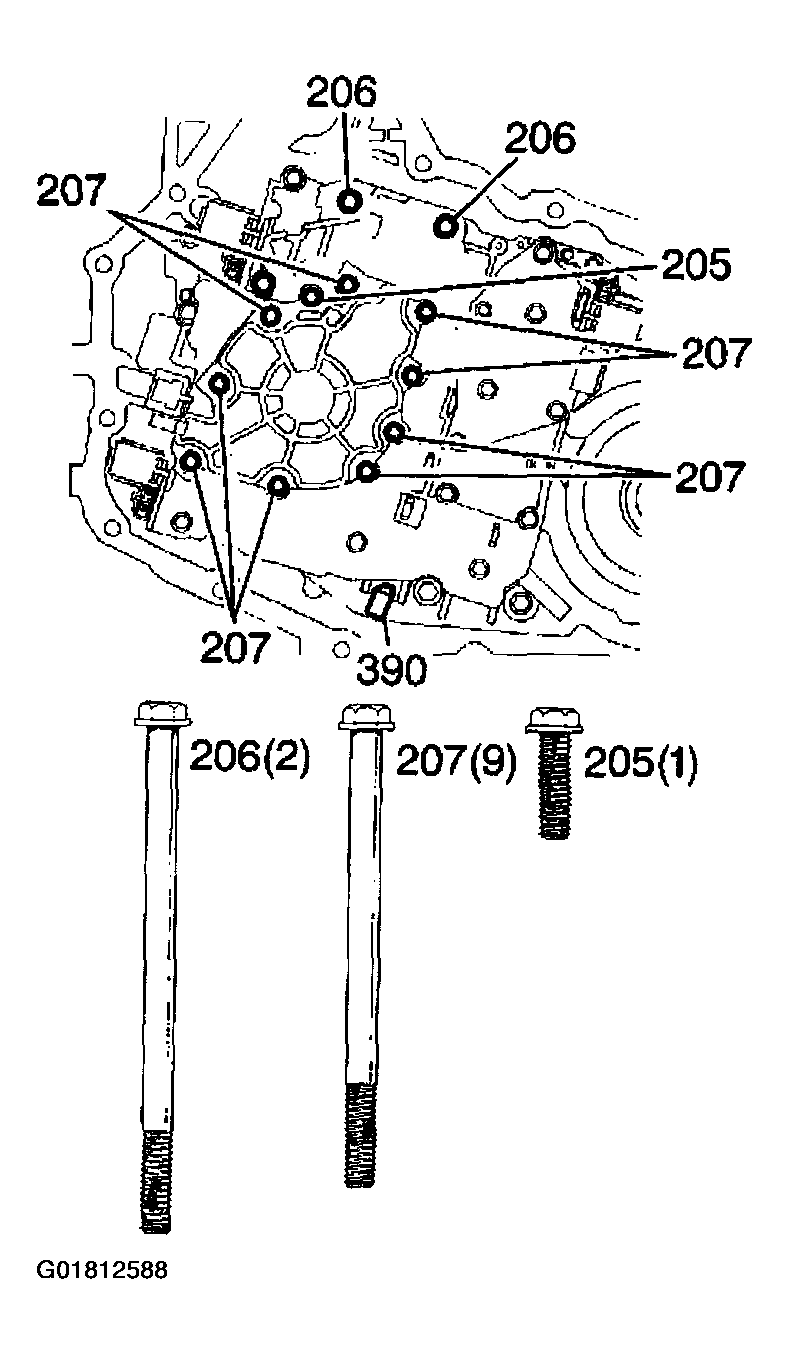

    Fig 2: Installing Case Side Cover
    G01812588Courtesy of GENERAL MOTORS CORP.
