Installation Procedure

NOTE: Refer to FASTENER NOTICE .

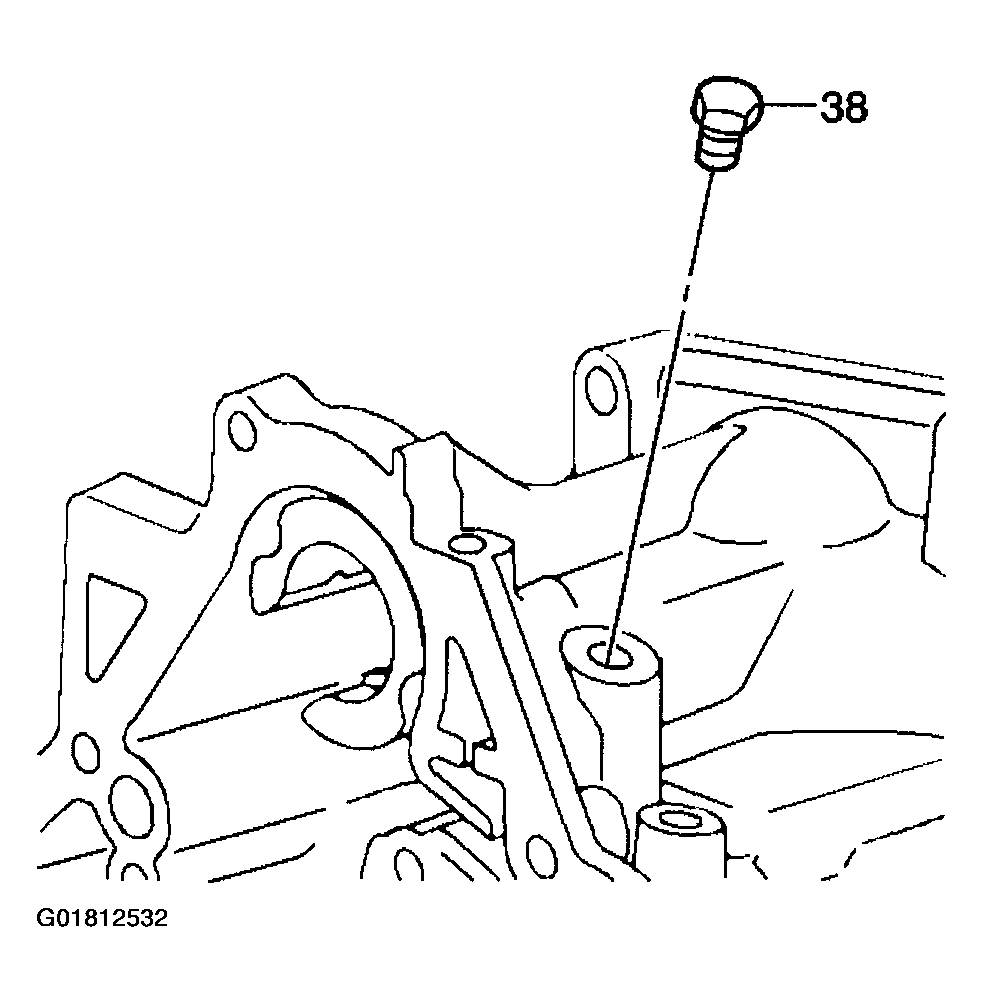

Fig 1: Installing Pressure Test Hole Plug
G01812532Courtesy of GENERAL MOTORS CORP.
  1. Install the pressure test hole plug (38).

    Tighten

    Tighten the plug (38) to 12 N.m (106 lb in).

  2. Install the throttle body air inlet duct.
