Installation Procedure

  1. Install the oil pan gasket (25).
  2. Install the oil pan (24).
    NOTE: Refer to FASTENER NOTICE
  3. Install the oil pan bolts (23).

    Tighten

    Tighten the oil pan bolts (23) to 14 N.m (10 lb ft).

  4. Lower the vehicle.
    NOTE: Do NOT overfill the transaxle. The overfilling of the transaxle causes foaming, loss of fluid, shift complaints, and possible damage to the transaxle
  5. Adjust the fluid level. Refer to Transmission Fluid Checking Procedure  .
  6. Inspect for fluid leaks.

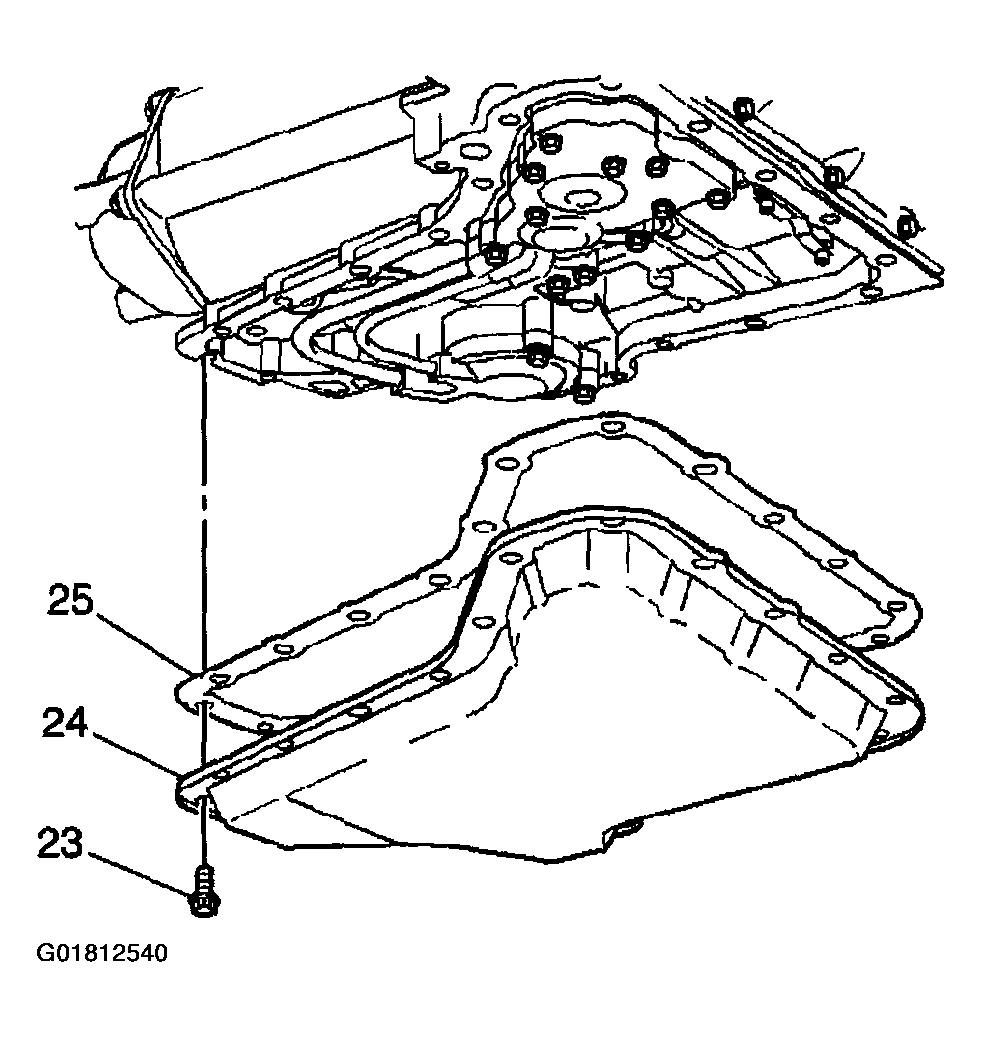

    Fig 1: Installing Oil Pan, Gasket & Bolts
    G01812540Courtesy of GENERAL MOTORS CORP.
