Removal Procedure

Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Remove the torque converter cover. Refer to Torque Converter Cover Replacement

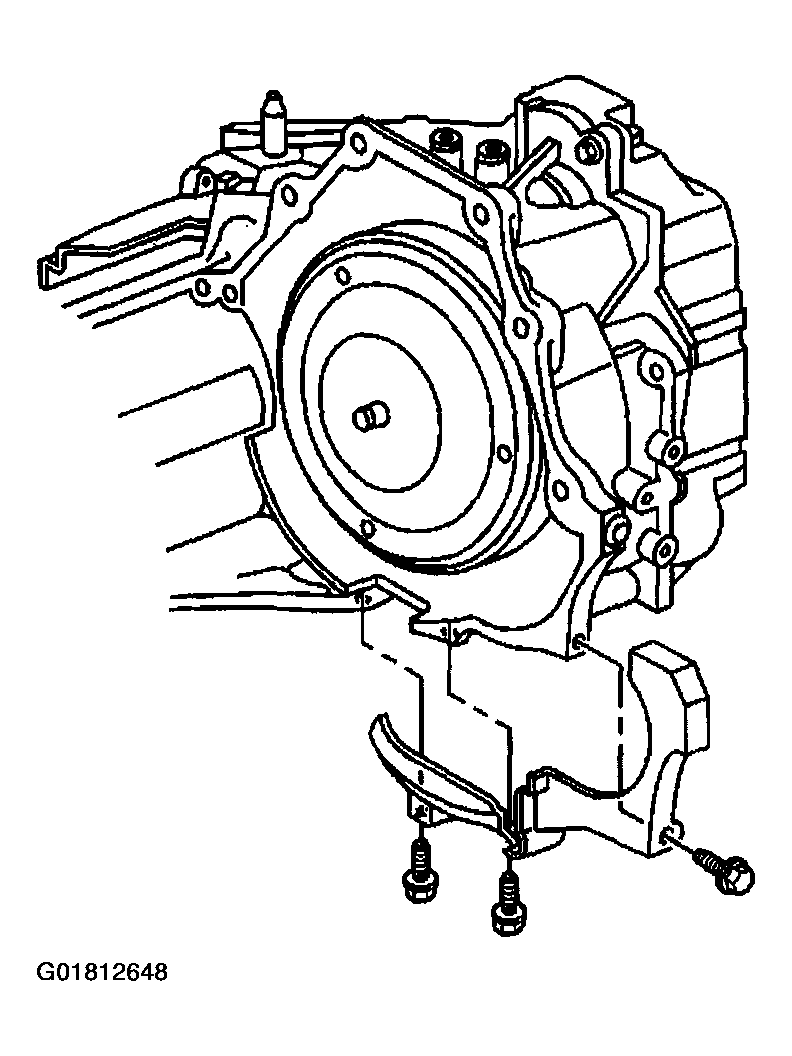

Fig 1: Removing Torque Converter Cover
Courtesy of GENERAL MOTORS CORP.
Use the J 37623 in order to rotate the flywheel and access the torque converter bolts.
Use the J 37623 to hold the flywheel.

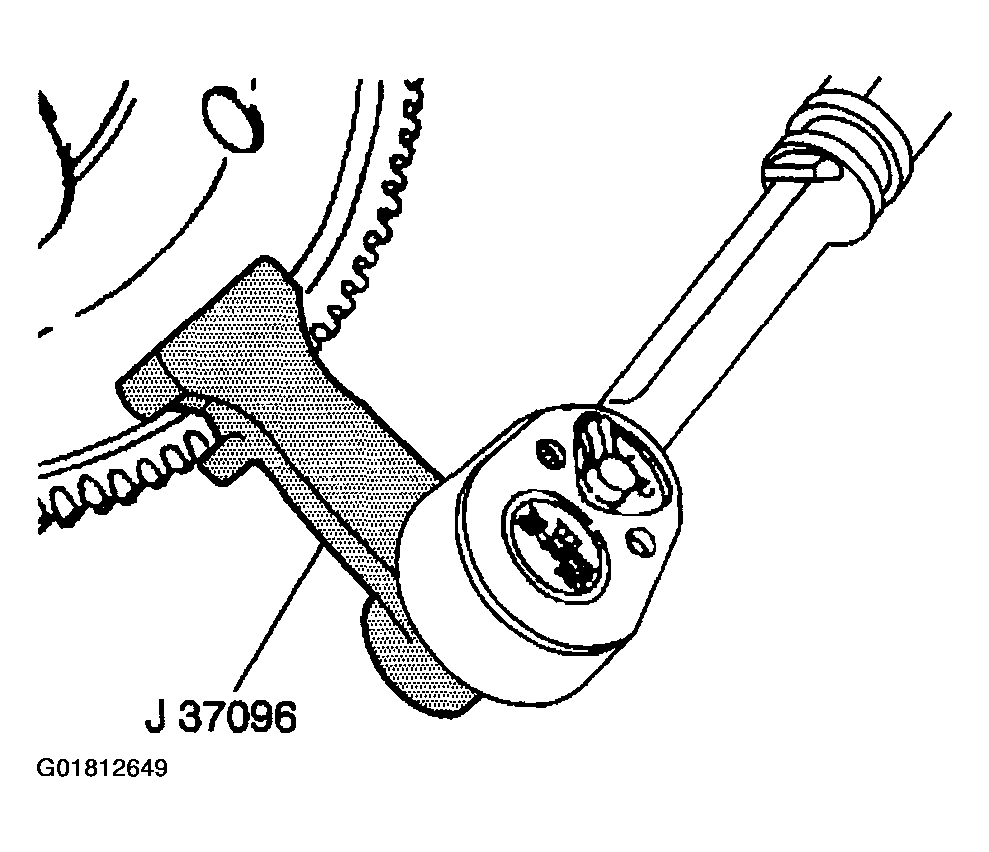

Fig 2: Rotating Flywheel & Access Torque Converter Bolts Using J 37623
Courtesy of GENERAL MOTORS CORP.
Remove the flywheel to torque converter bolts.

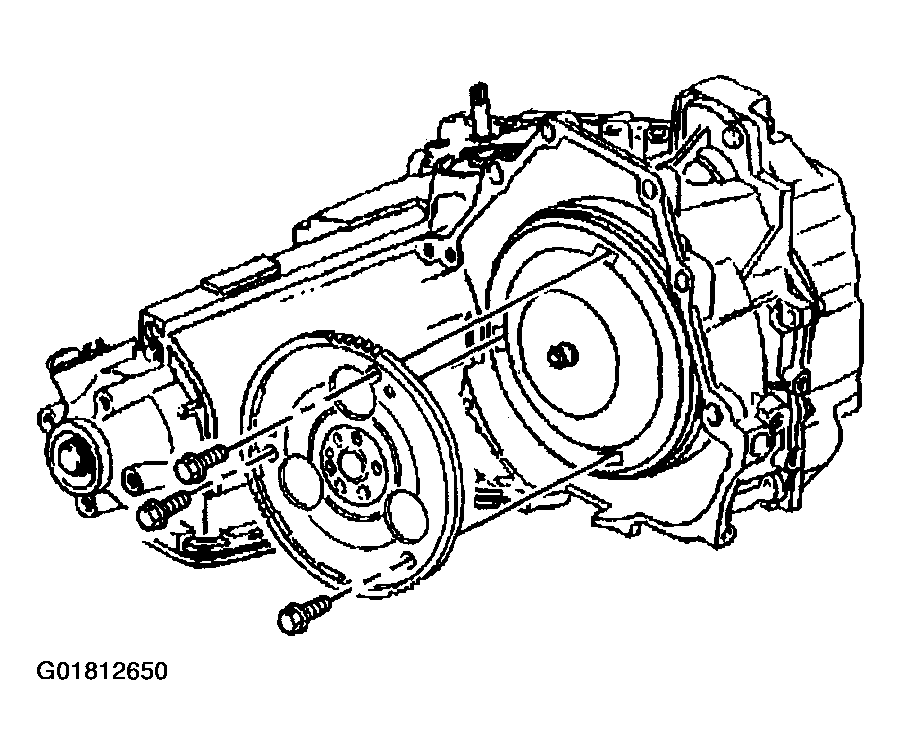

Fig 3: Removing Flywheel To Torque Converter Bolts
Courtesy of GENERAL MOTORS CORP.
