Installation Procedure

  1. Install the flywheel to torque converter bolts.
    NOTE: Refer to FASTENER NOTICE
  2. Use the J 37623  to hold the flywheel.

    Tighten

    Tighten the bolts to 63 N.m (47 lb ft).

  3. Install the torque converter cover. Refer to Torque Converter Cover Replacement

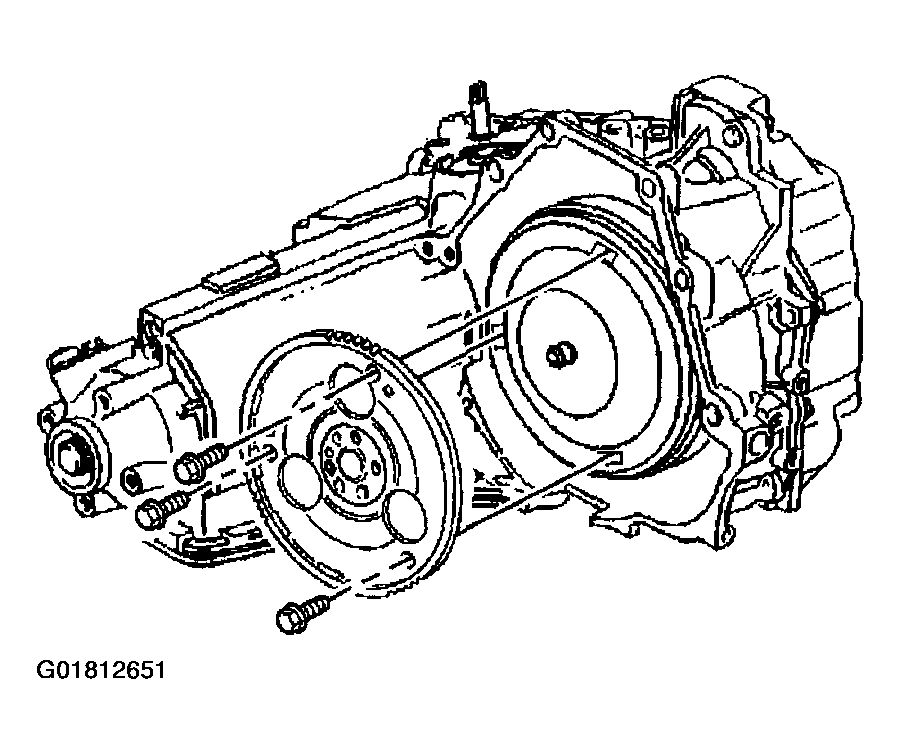

    Fig 1: Installing Flywheel To Torque Converter Bolts
    G01812651Courtesy of GENERAL MOTORS CORP.
  4. Lower the vehicle.

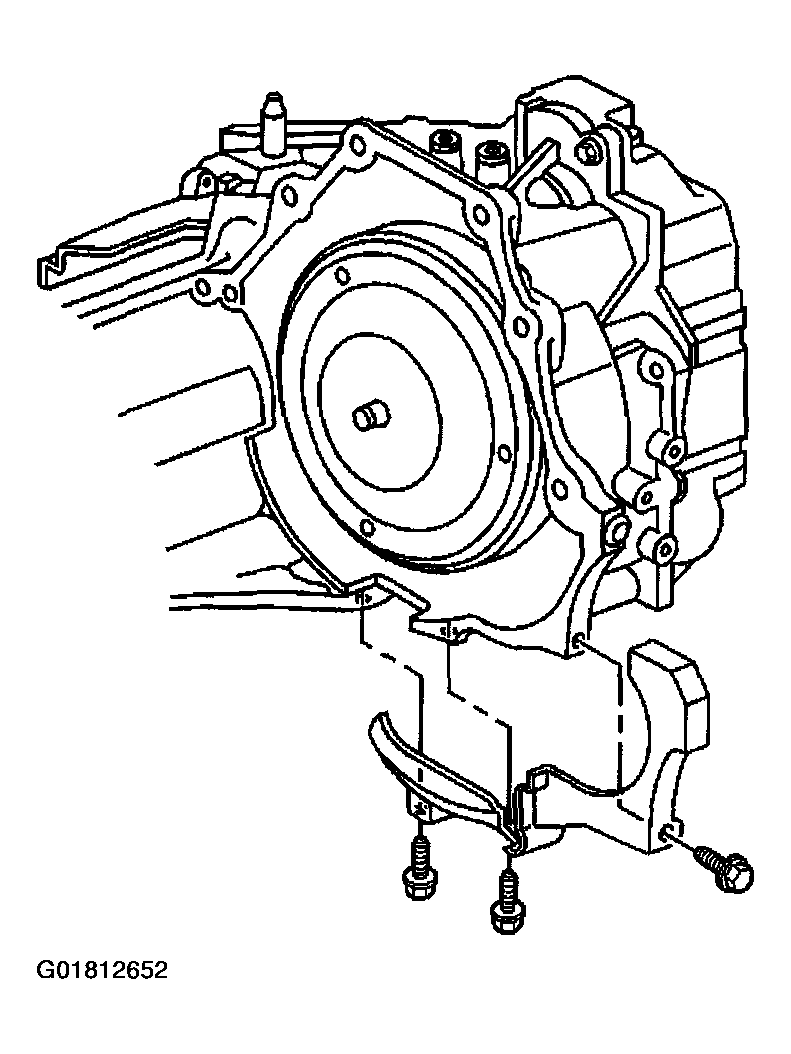

    Fig 2: Installing Torque Converter Cover
    G01812652Courtesy of GENERAL MOTORS CORP.
