Installation Procedure

  1. Assemble the sun gear thrust bearing (698), the differential carrier sun gear (697), the park gear (696), the internal gear thrust bearing (695) and the sun gear shaft (689) into the differential carrier (700).
  2. Install the differential carrier into the case.

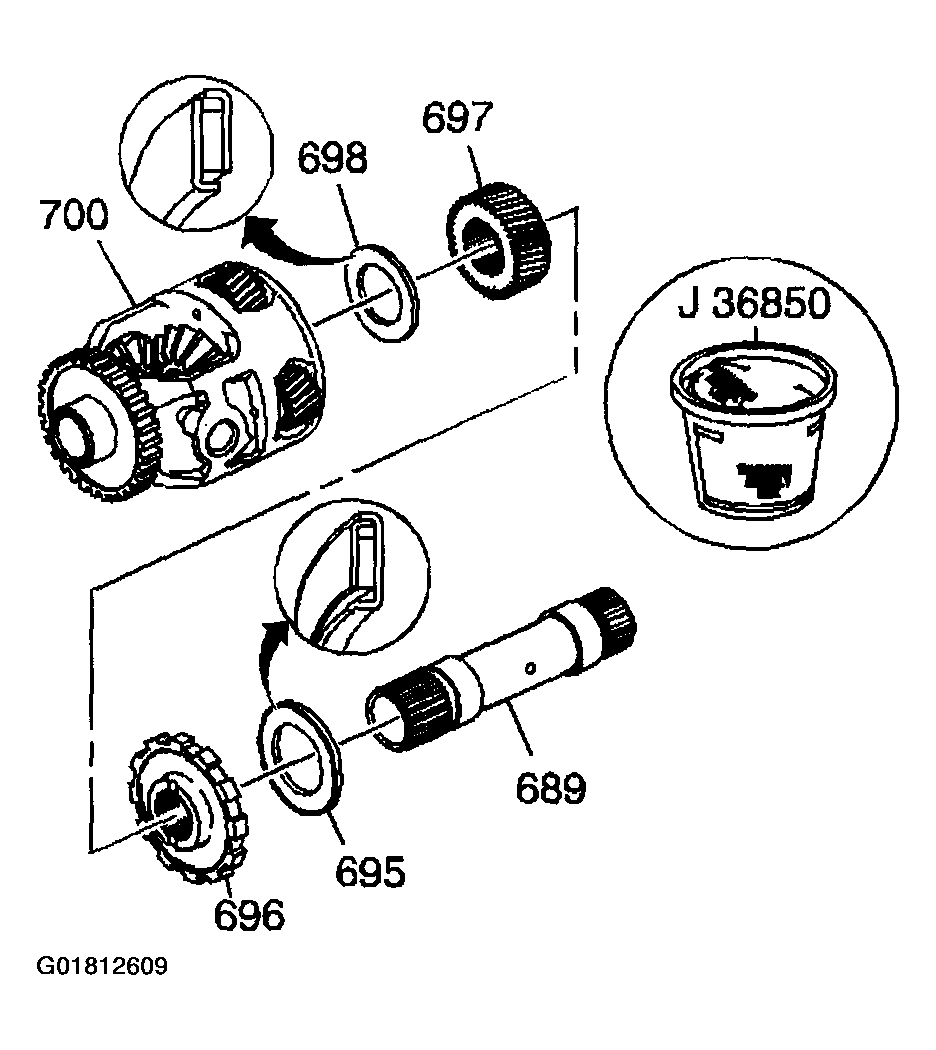

    Fig 1: Installing Differential Carrier Sun Gear & Assemblies
    G01812609Courtesy of GENERAL MOTORS CORP.
  3. Install the case extension housing. Refer to Case Extension Housing Replacement
    Fig 2: Installing Compression Ring
    G01812610Courtesy of GENERAL MOTORS CORP.
