Removal Procedure

  1. Remove the oil indicator from the filler tube.
  2. Remove the air cleaner assembly.
  3. Remove the retaining nut from the EGR at the top of the filler tube.
  4. Remove the lower retaining bolt at the base of the filler tube.
  5. Remove the fluid filler tube.

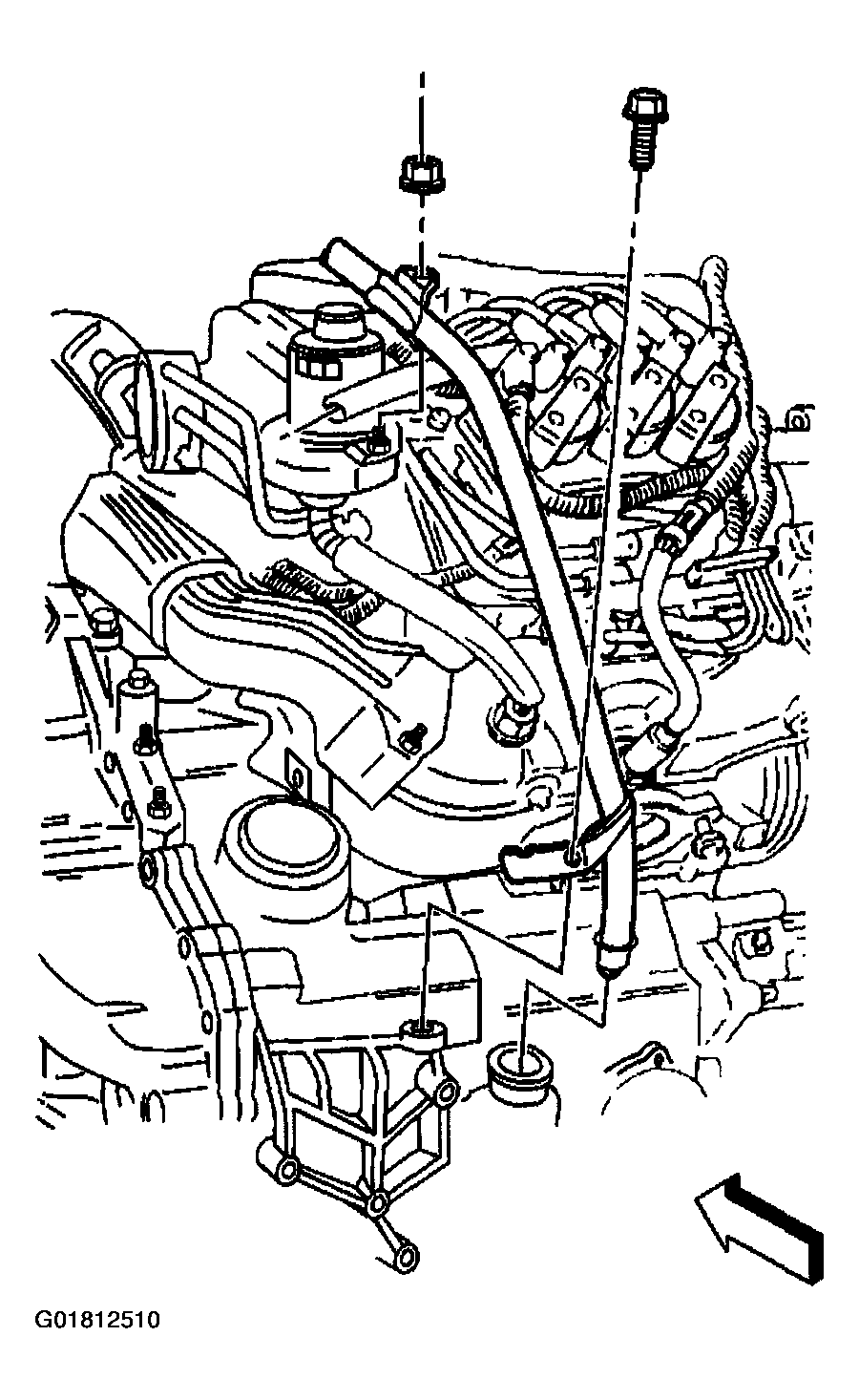

    Fig 1: Removing Retaining Nut & EGR Top Of Filler Tube
    G01812510Courtesy of GENERAL MOTORS CORP.
  6. Remove the fluid filler tube seal.

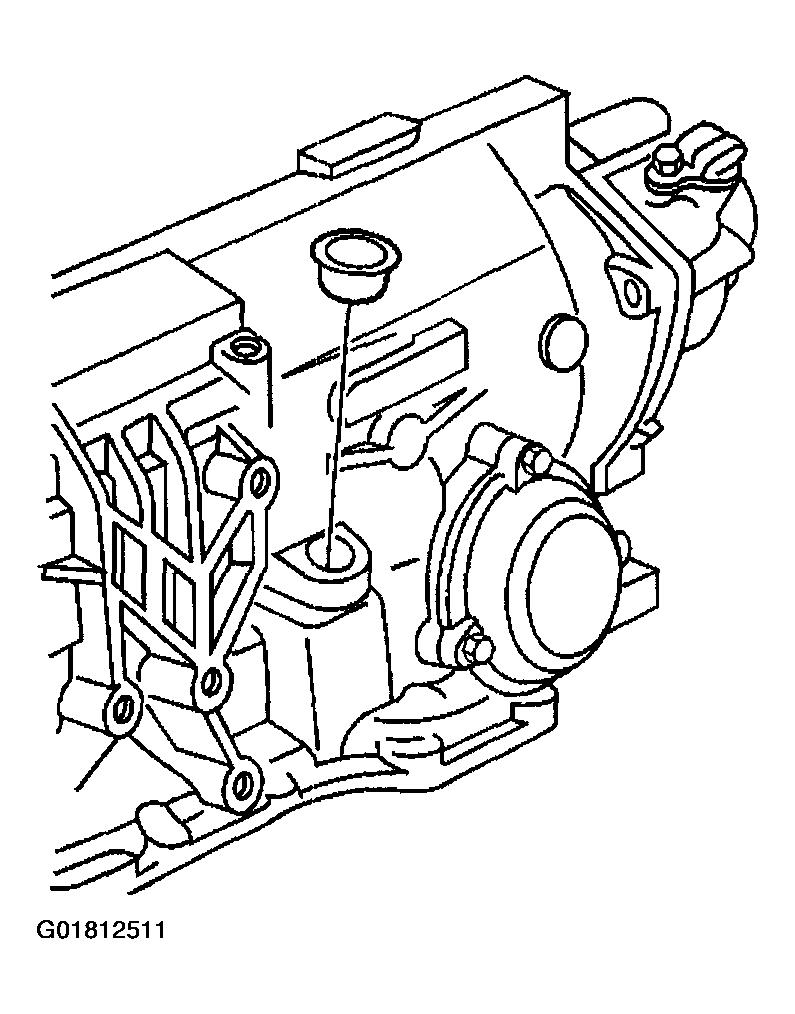

    Fig 2: Removing Fluid Filler Tube Seal
    G01812511Courtesy of GENERAL MOTORS CORP.
