Installation Procedure

Important:  Do NOT place the fluid filler tube seal on the fluid filler tube when installing the tube or damage to the seal will result.

1. Install the fluid filler tube seal in the transaxle.
2. Position the fluid filler tube into the transaxle.
   NOTE: Refer to FASTENER NOTICE

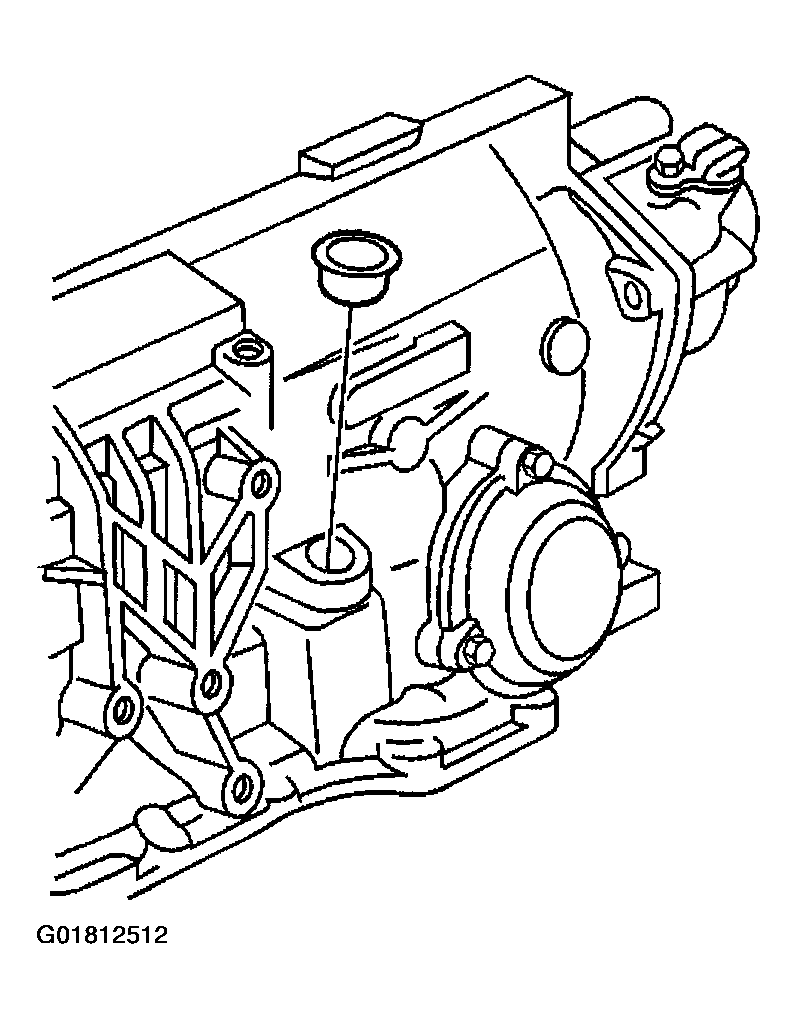

   Fig 1: Installing Fluid Filler Tube Seal

   Courtesy of GENERAL MOTORS CORP.
3. Install the fluid filler tube bracket bolt through the fluid filler tube bracket.

   Tighten

   Tighten the bolt to 13 N.m (115 lb in).

4. At the top of the filler tube install the retaining nut to the filler tube the EGR at the top of the filler tube.
5. Install the air cleaner assembly.
6. Inspect for proper fluid level.
7. Inspect for fluid leaks.

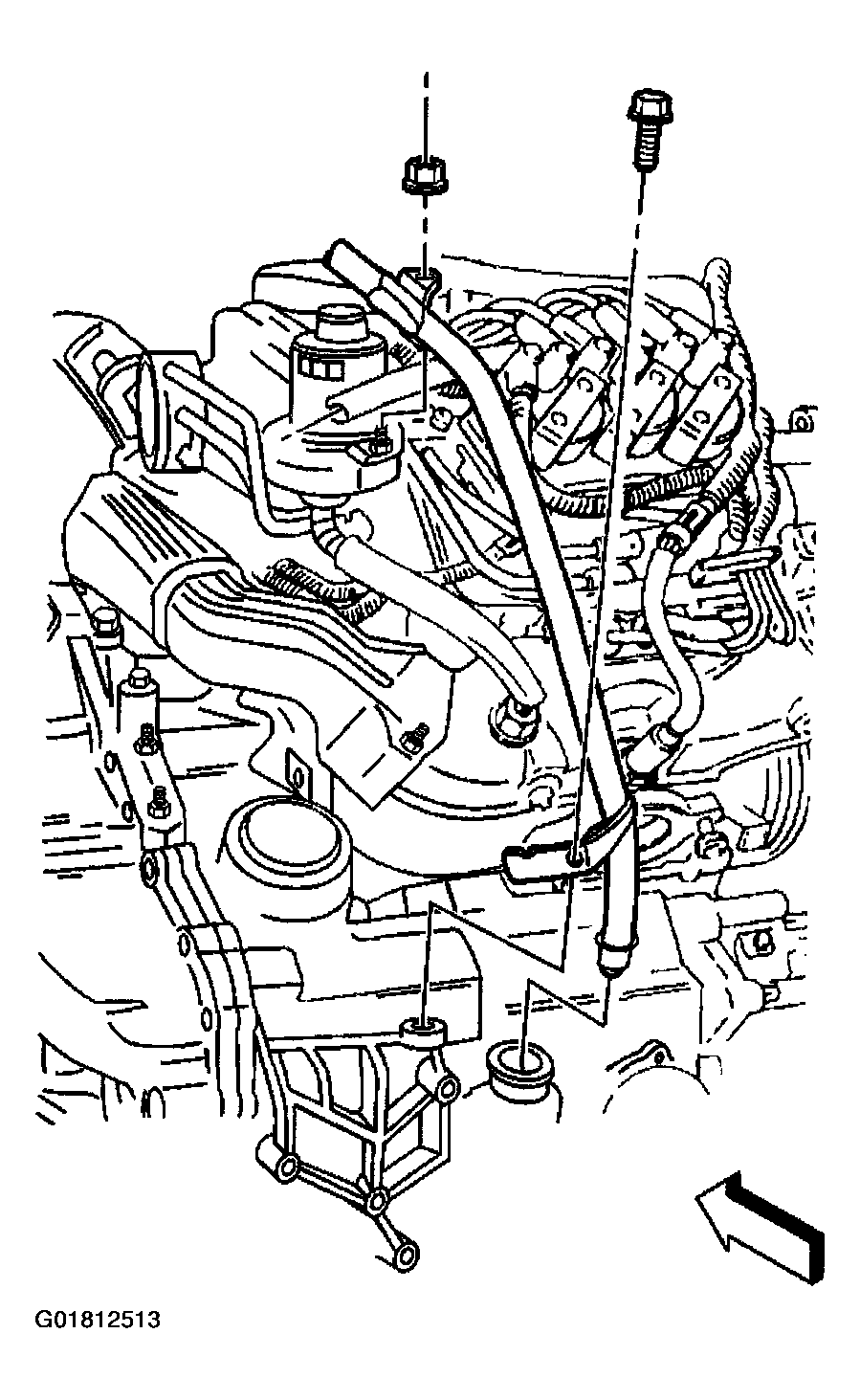

   Fig 2: Installing Retaining Nut & EGR Top Of Filler Tube

   Courtesy of GENERAL MOTORS CORP.
