Installation Procedure

  1. If removed, install the drive axle seal.
  2. Install the case extension housing (6) with the axle seal and with the O-ring (8).
    NOTE: Refer to FASTENER NOTICE
  3. Install the case extension housing bolts (5).

    Tighten

    Tighten the bolts (5) to 36 N.m (27 lb ft).

  4. Install the vehicle speed sensor. Refer to Input Speed Sensor Replacement
  5. Install the transaxle brace. Refer to Automatic Transmission Brace Replacement
  6. Connect the right drive axle to the transaxle. Refer to WHEEL DRIVE SHAFT REPLACEMENT -- FRONT .
  7. Lower the vehicle.
    NOTE: Do NOT overfill the transaxle. The overfilling of the transaxle causes foaming, loss of fluid, shift complaints, and possible damage to the transaxle
  8. Adjust the fluid level. Refer to Transmission Fluid Checking Procedure  .
  9. Inspect for completion of the repairs.
  10. Inspect for fluid leaks.

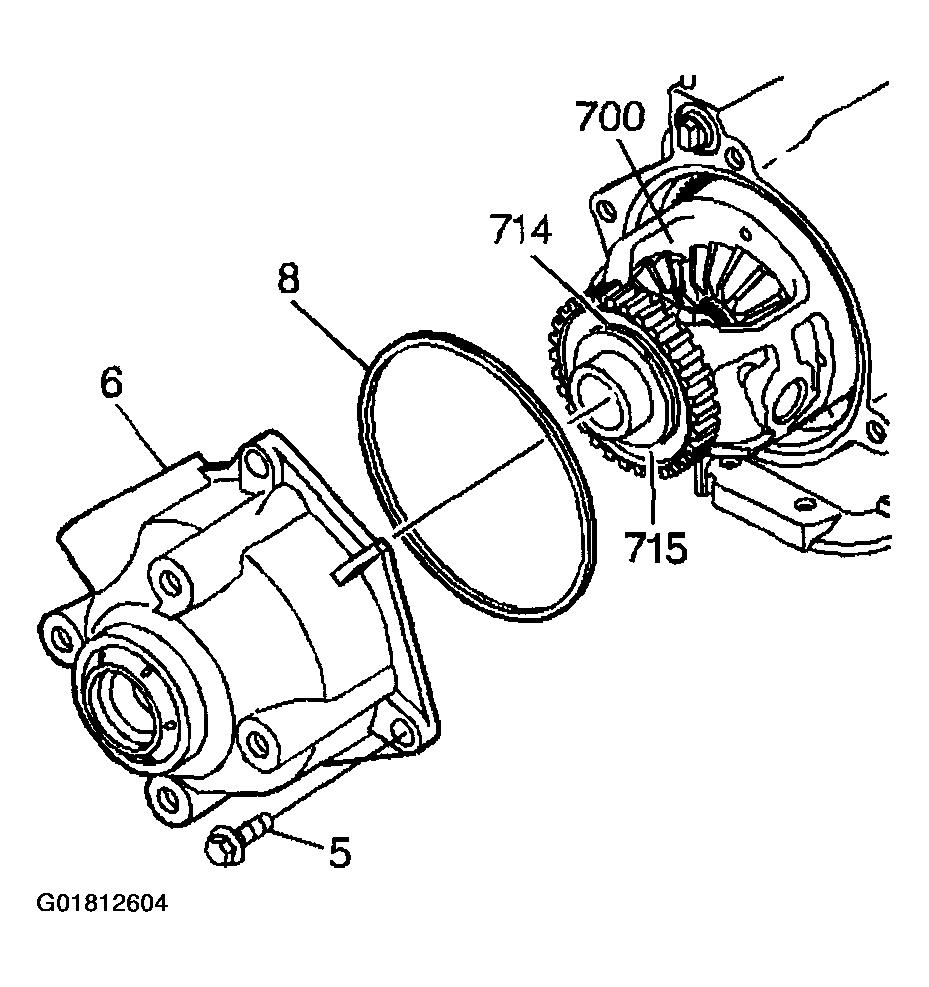

    Fig 1: Installing Case Extension Housing & Bolts
    G01812604Courtesy of GENERAL MOTORS CORP.
