Removal Procedure

  1. Remove the throttle body air inlet duct.
  2. Use a flat-bladed tool in order to remove the retaining clip from the automatic transaxle range selector cable.
    Fig 1: Removing Throttle Body Air Inlet Duct
    G01812485Courtesy of GENERAL MOTORS CORP.
  3. Use a large flat-bladed tool in order to remove the automatic transaxle range selector cable from the cable lever.
  4. Use pliers in order to depress the cable retainers.
  5. Remove the automatic transaxle range selector cable from the automatic transaxle range selector cable bracket.
  6. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .

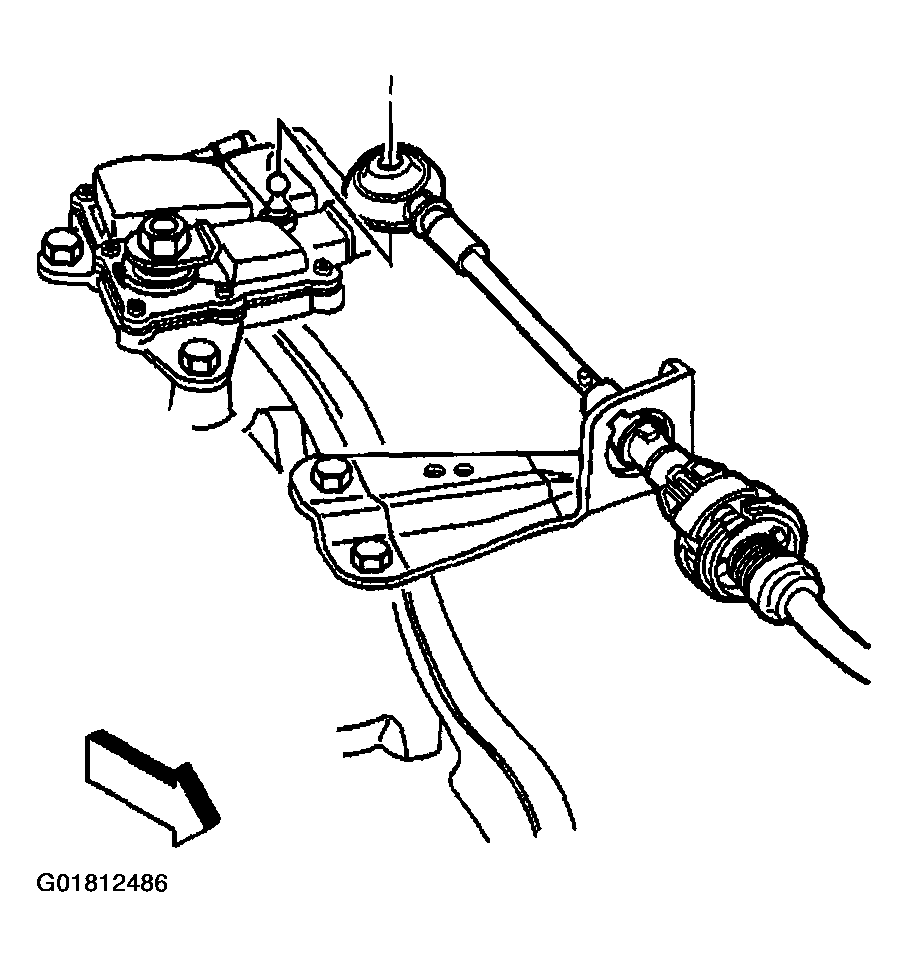

    Fig 2: Removing Automatic Transaxle Range Selector Cable & Bracket
    G01812486Courtesy of GENERAL MOTORS CORP.
  7. Remove the retaining clip from the automatic transaxle range selector cable.
  8. Remove the automatic transaxle range selector cable from the column control lever.

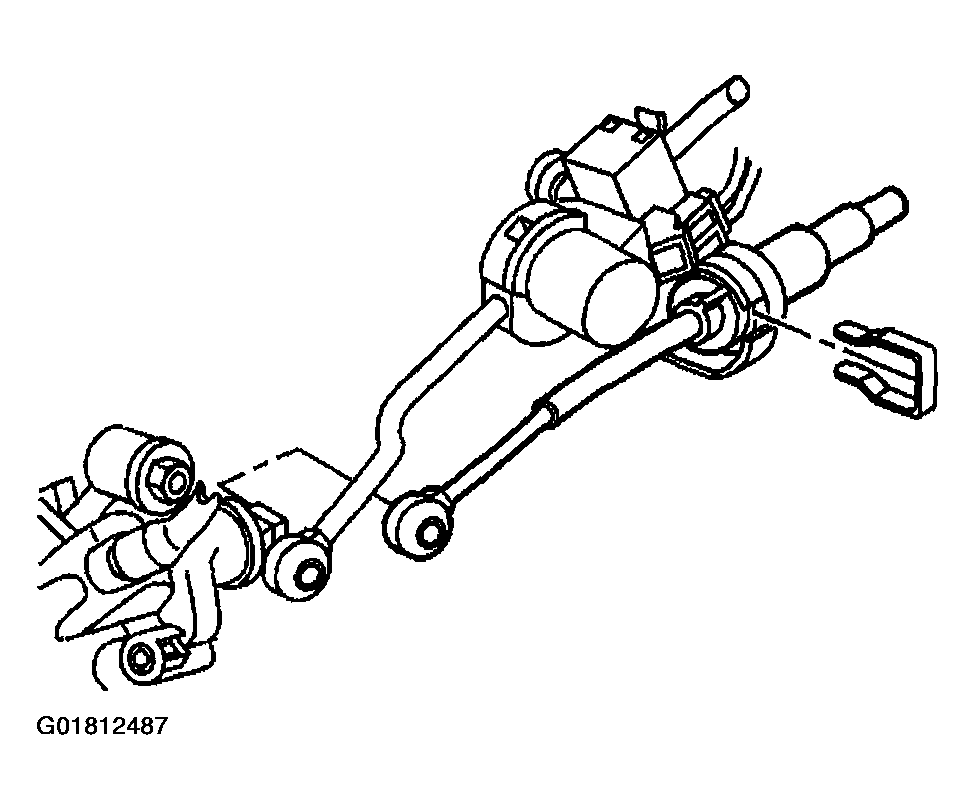

    Fig 3: Removing Automatic Transaxle Range Selector Cable & Column Control Lever
    G01812487Courtesy of GENERAL MOTORS CORP.
  9. Remove the automatic transaxle range selector cable from the steering column bracket.
    Fig 4: Removing Automatic Transaxle Range Selector Cable & Steering Column Bracket
    G01812488Courtesy of GENERAL MOTORS CORP.
  10. Remove the automatic transaxle range selector cable through the hole in the cowl.

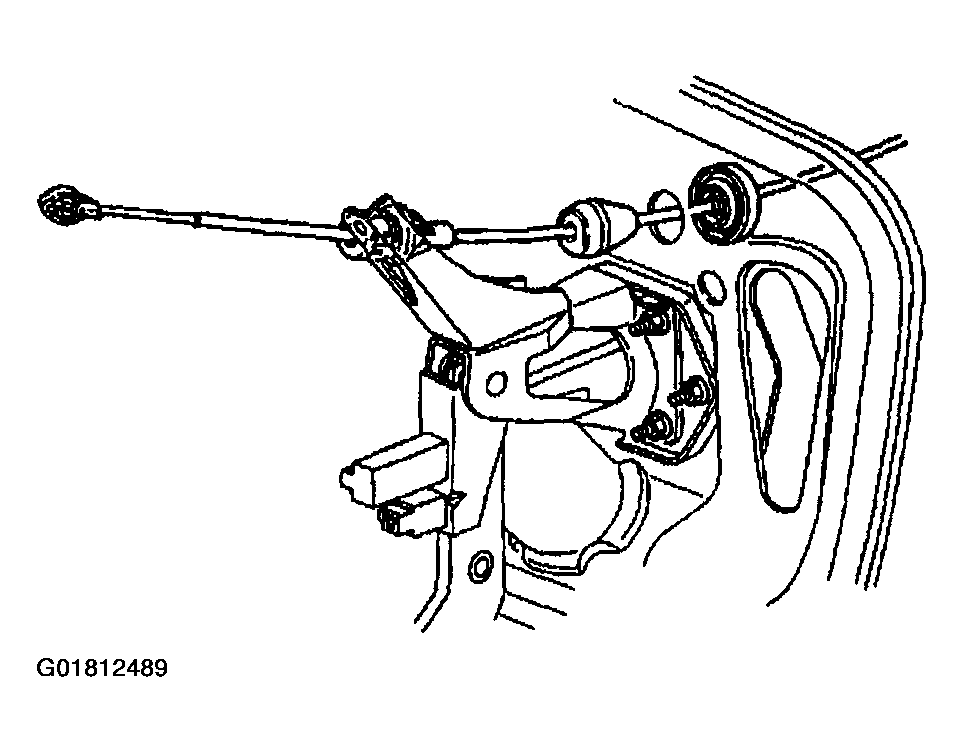

    Fig 5: Removing Automatic Transaxle Range Selector Cable & Cowl
    G01812489Courtesy of GENERAL MOTORS CORP.
