Installation Procedure

Properly route the automatic transaxle range selector cable through the engine compartment.

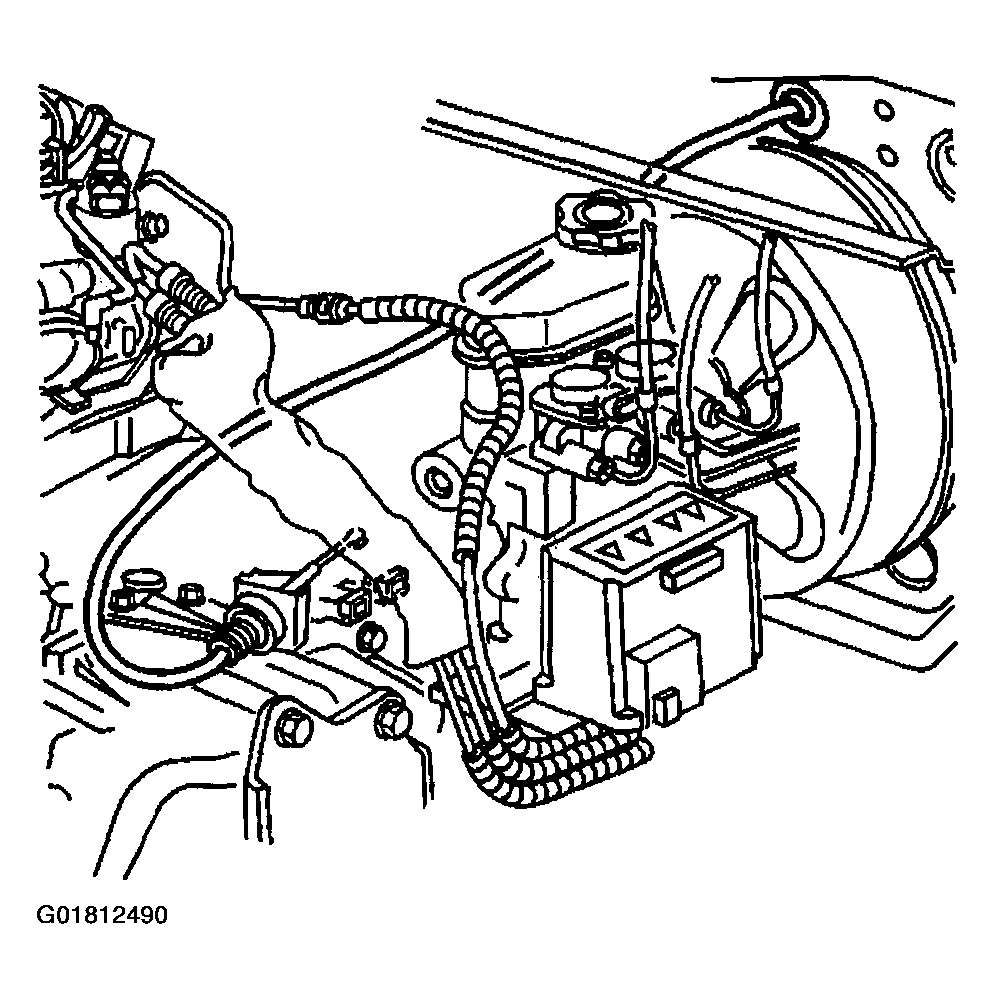

Fig 1: Automatic Transaxle Range Selector Cable & Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Install the automatic transaxle range selector cable through the cowl.

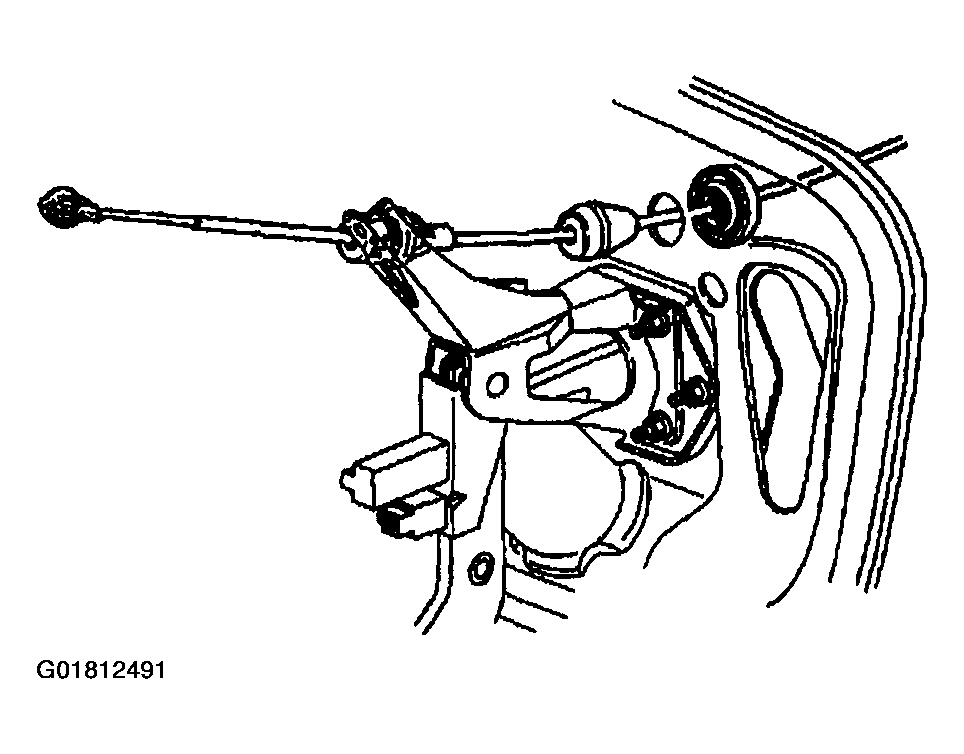

Fig 2: Installing Automatic Transaxle Range Selector Cable & Cowl
Courtesy of GENERAL MOTORS CORP.
Install the automatic transaxle range selector cable to the steering column bracket.

Fig 3: Installing Automatic Transaxle Range Selector Cable & Steering Column Bracket
Courtesy of GENERAL MOTORS CORP.
Install the retaining clip to the automatic transaxle range selector cable.
Install the automatic transaxle range selector cable to the column control lever.
Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .

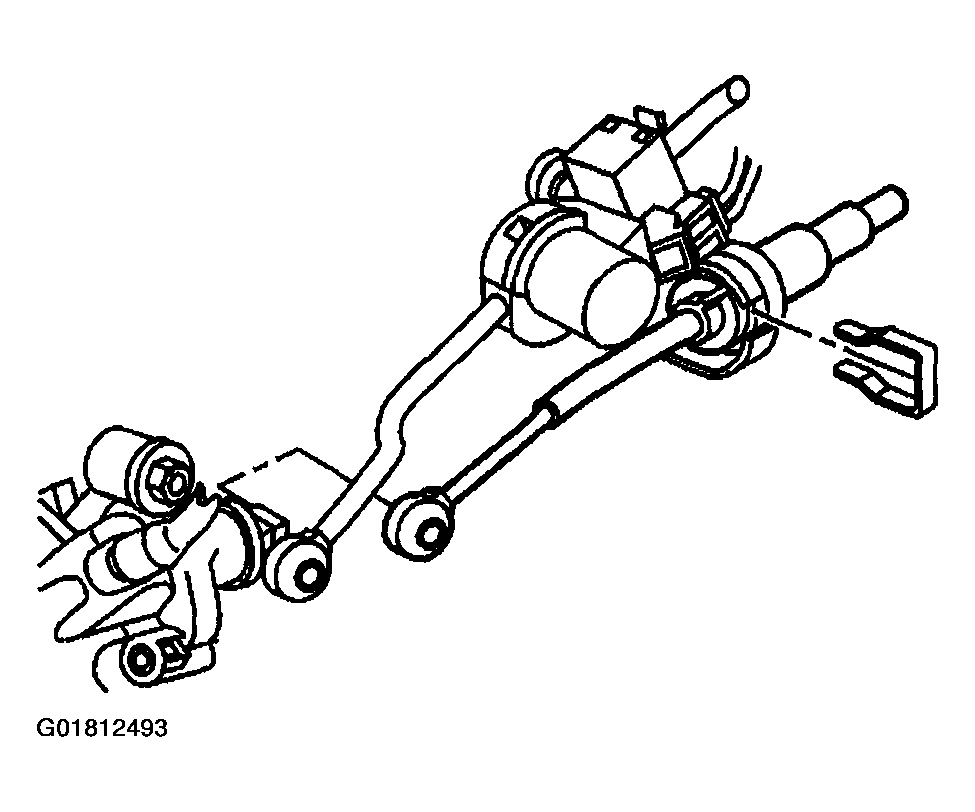

Fig 4: Installing Automatic Transaxle Range Selector Cable & Column Control Lever
Courtesy of GENERAL MOTORS CORP.
Install the automatic transaxle range selector cable to the automatic transaxle range selector cable bracket.
Install the automatic transaxle range selector cable to the automatic transaxle range selector lever.

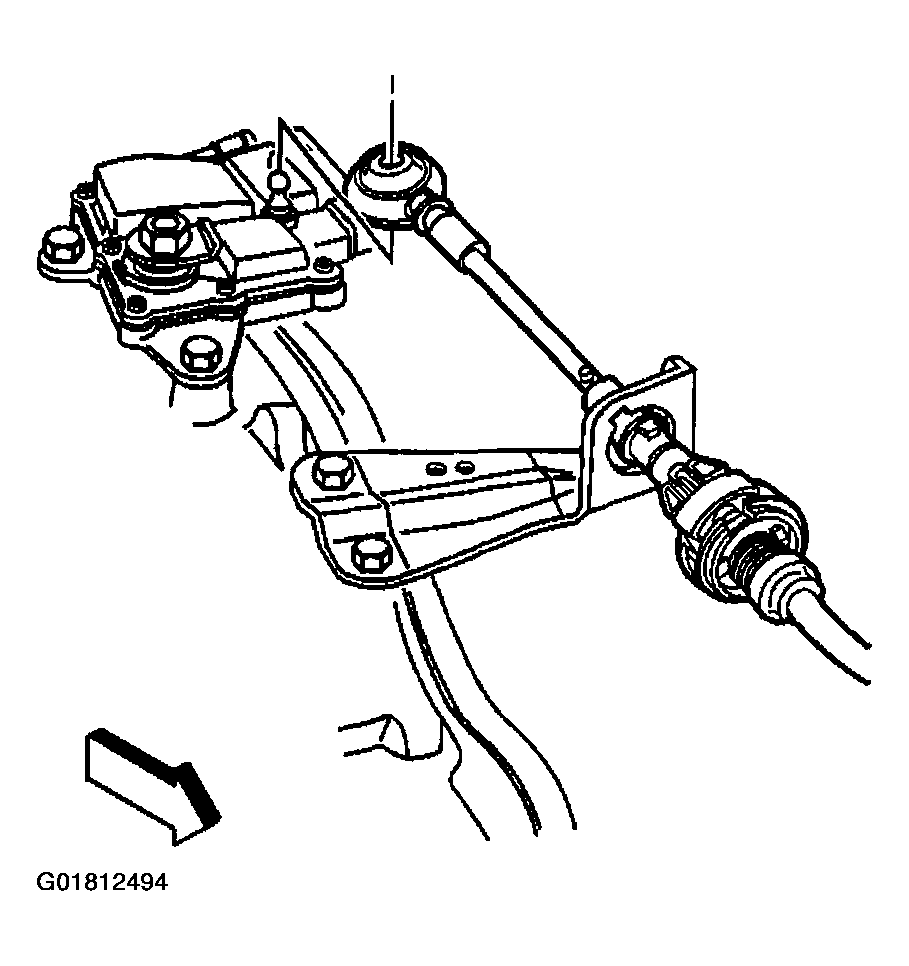

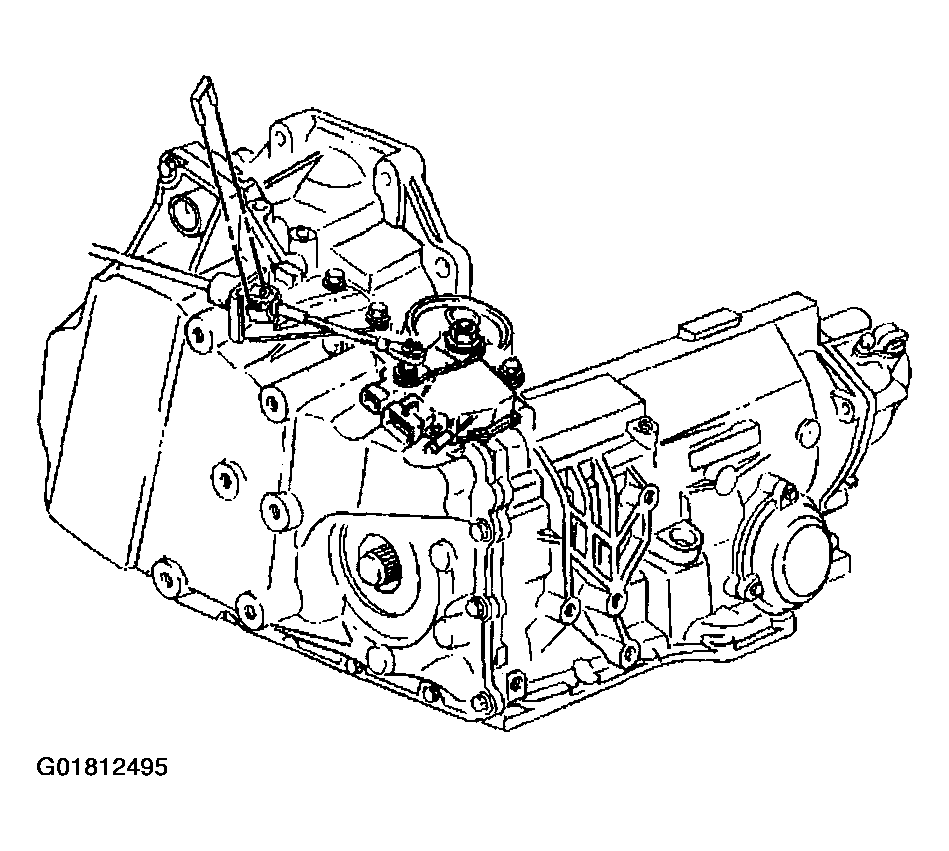

Fig 5: Installing Automatic Transaxle Range Selector Cable & Bracket
Courtesy of GENERAL MOTORS CORP.
Install the retaining clip to the automatic transaxle range selector cable.
Adjust the automatic transaxle range selector cable. Refer to Automatic Transmission Range Selector Cable Adjustment
Install the throttle body air inlet duct.

Fig 6: Installing Throttle Body Air Inlet Duct
Courtesy of GENERAL MOTORS CORP.
