Removal Procedure

  1. Remove the throttle body air inlet duct.
  2. Remove the automatic transaxle range selector lever cable from the cable lever.
  3. Remove the automatic transaxle range selector lever nut.
  4. Remove the automatic transaxle range selector lever.

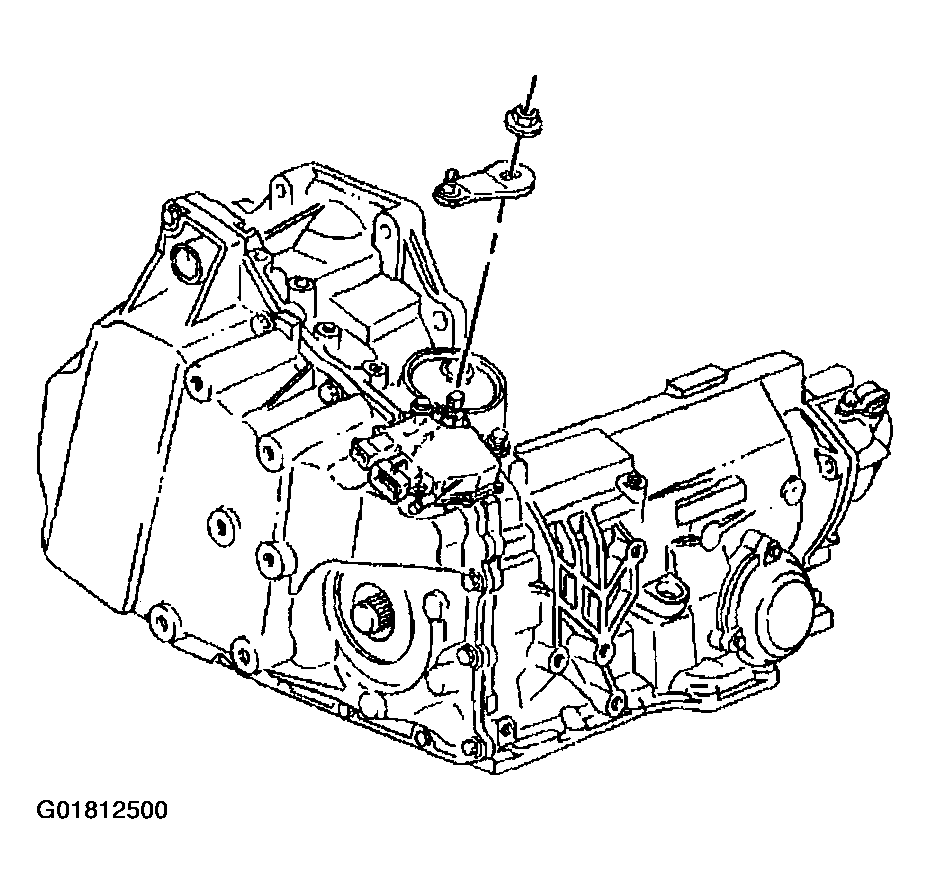

    Fig 1: Removing Automatic Transaxle Range Selector Lever Cable & Nut
    G01812500Courtesy of GENERAL MOTORS CORP.
