Installation Procedure

  1. Install the automatic transaxle range selector lever.
    NOTE: Refer to FASTENER NOTICE
  2. Install the automatic transaxle range selector lever nut.

    Tighten

    Tighten the automatic transaxle range selector lever nut to 32 N.m (23 lb ft).

  3. Install the automatic transaxle range selector lever cable to the automatic transaxle range selector lever.
  4. Install the throttle body air inlet duct.

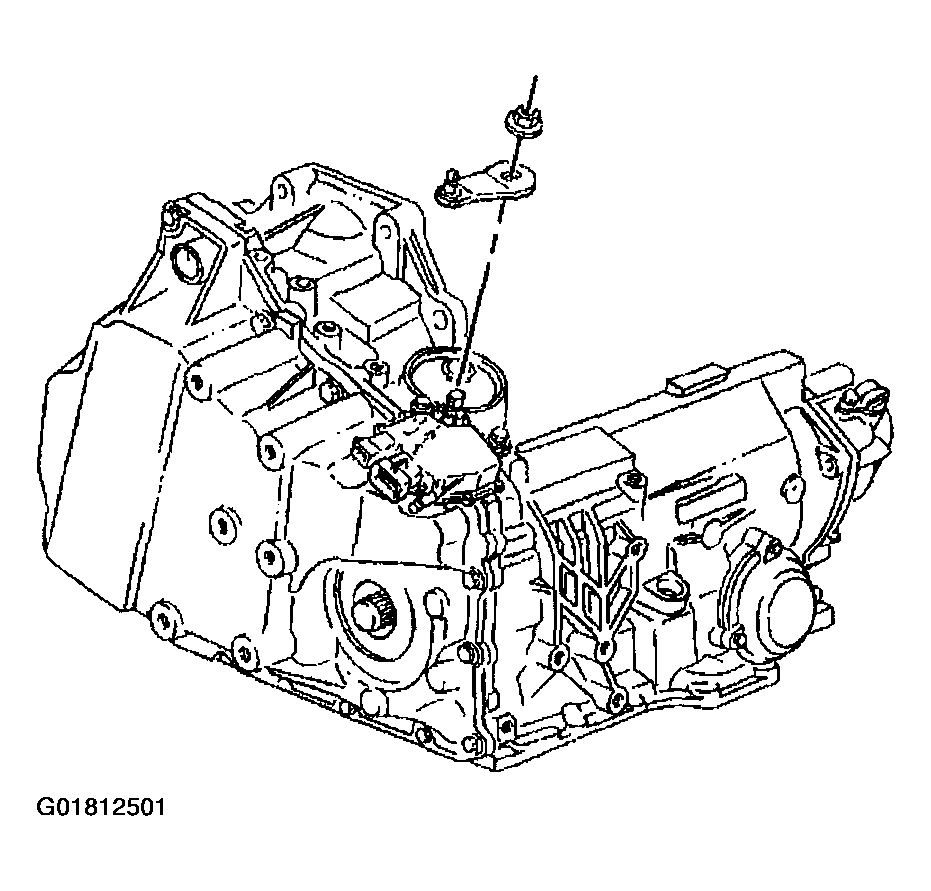

    Fig 1: Installing Automatic Transaxle Range Selector Lever Cable & Nut
    G01812501Courtesy of GENERAL MOTORS CORP.
