Removal Procedure

  1. Remove the throttle body air inlet duct.
  2. Use a flat-bladed tool in order to remove the automatic transaxle range selector cable from the cable lever and the bracket. Refer to Automatic Transmission Range Selector Cable Replacement
  3. Remove the automatic transaxle range selector cable bracket bolts.
  4. Remove the automatic transaxle range selector cable bracket.

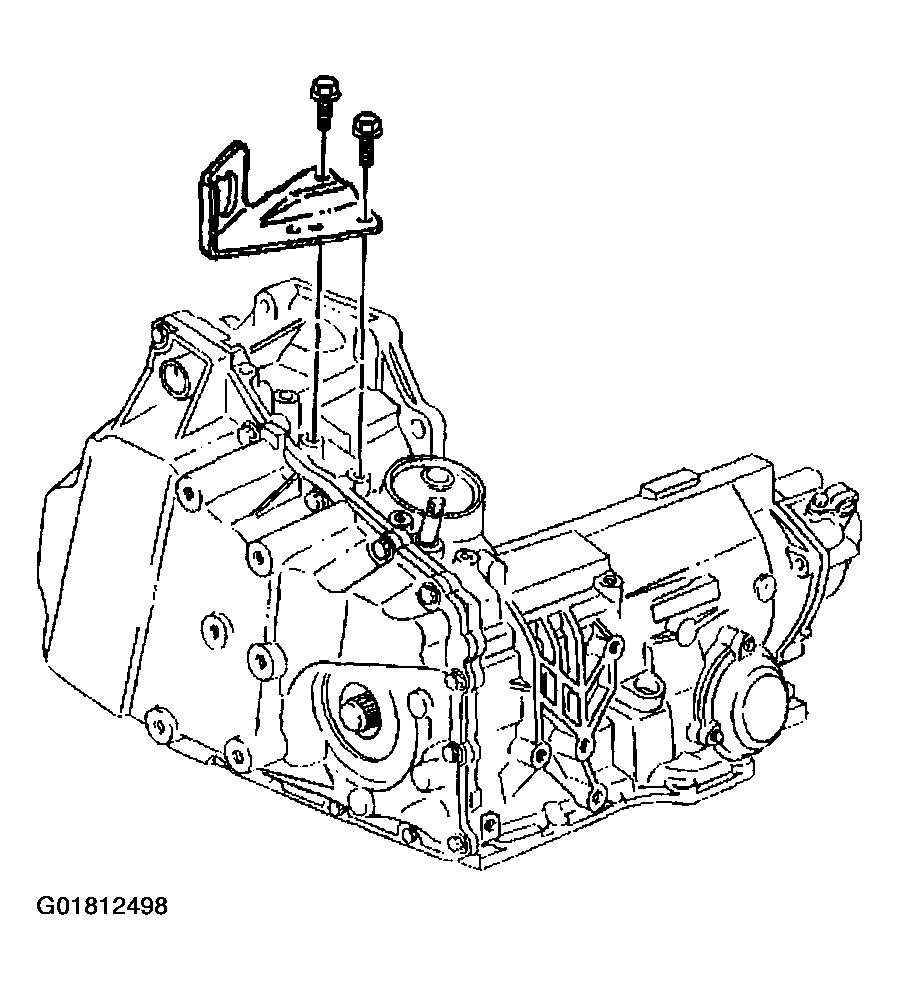

    Fig 1: Removing Automatic Transaxle Range Selector Cable Bracket & Bolts
    G01812498Courtesy of GENERAL MOTORS CORP.
