Installation Procedure

  1. Install the automatic transaxle range selector cable bracket.
    NOTE: Refer to FASTENER NOTICE
  2. Install the automatic transaxle range selector cable bracket bolts.

    Tighten

    Tighten the automatic transaxle range selector cable bracket bolts to 25 N.m (18 lb ft).

  3. Install the automatic transaxle range selector cable to the cable lever and the bracket. Refer to Automatic Transmission Range Selector Cable Replacement
  4. Adjust the automatic transaxle range selector cable. Refer to Automatic Transmission Range Selector Cable Adjustment
  5. Install the throttle body air inlet duct.

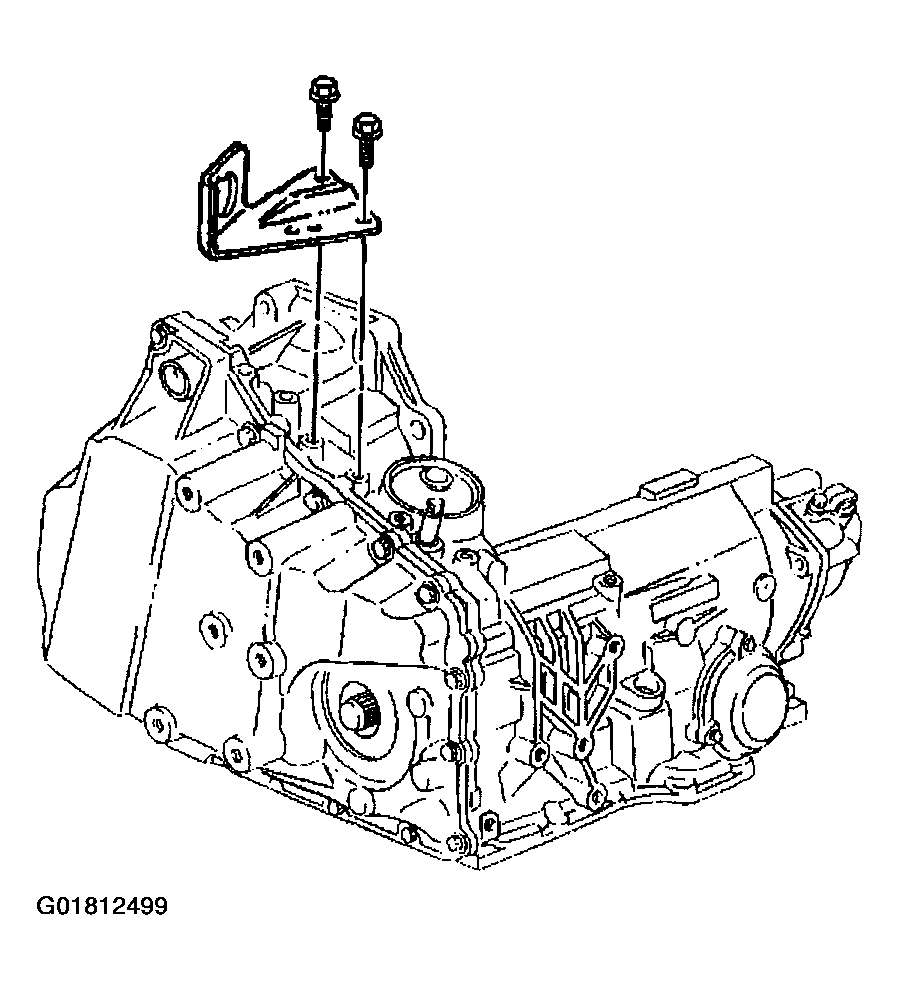

    Fig 1: Installing Automatic Transaxle Range Selector Cable Bracket & Bolts
    G01812499Courtesy of GENERAL MOTORS CORP.
