Removal Procedure

Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
Remove the transaxle oil cooler (TOC) hose retainer bolt.
Position a drain pan below the oil cooler hoses.

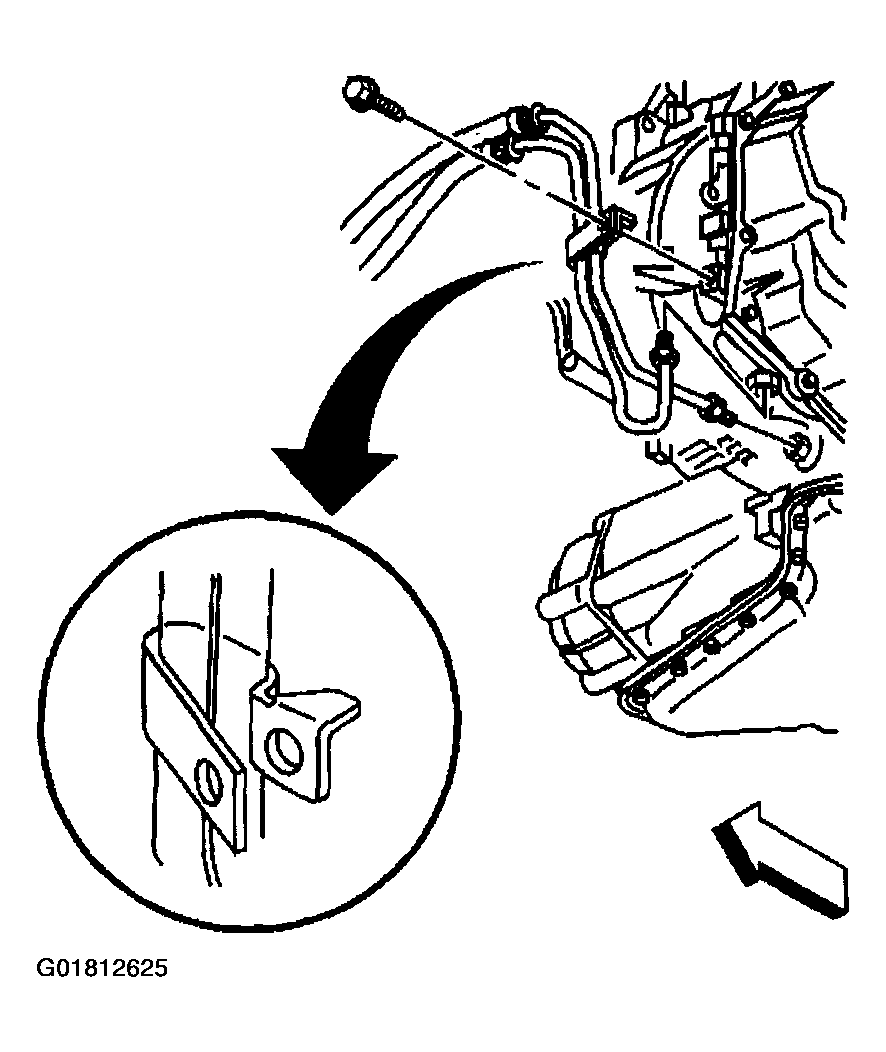

Fig 1: Removing TOC Hose Retainer Bolt
Courtesy of GENERAL MOTORS CORP.
Reposition the TOC connector cap.

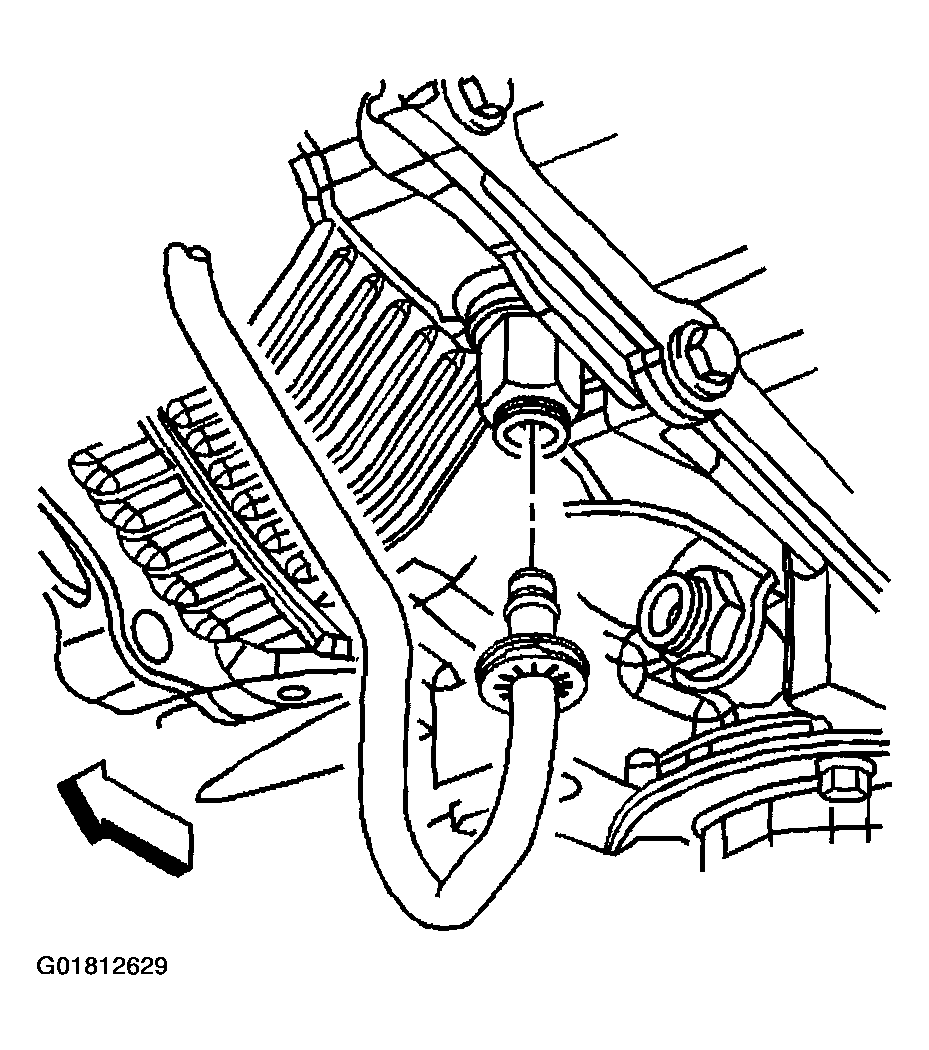

Fig 2: Repositioning TOC Connector Cap
Courtesy of GENERAL MOTORS CORP.
Use a flat-bladed tool in order to remove the TOC connector retainer.

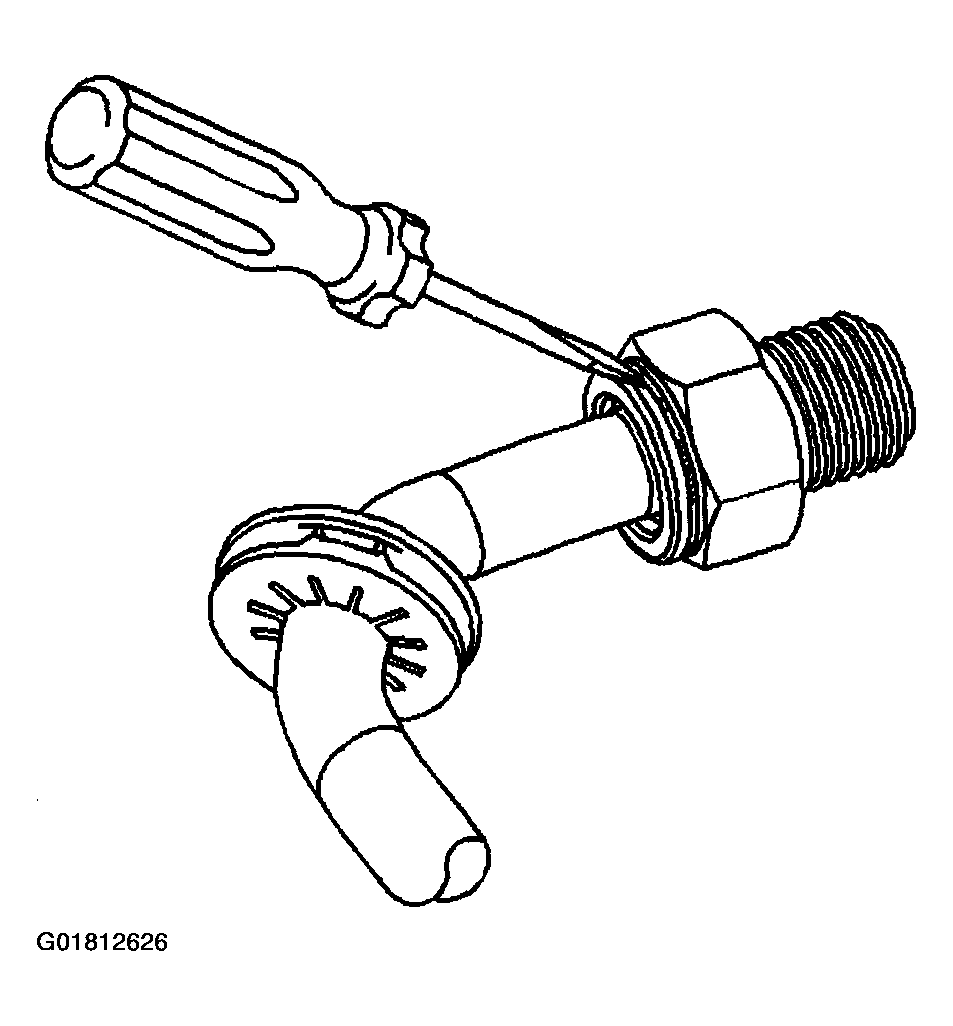

Fig 3: TOC Connector Retainer
Courtesy of GENERAL MOTORS CORP.
Repeat Step 4 and Step 5 for the other connections as needed.
Remove the TOC inlet hose from the transaxle.

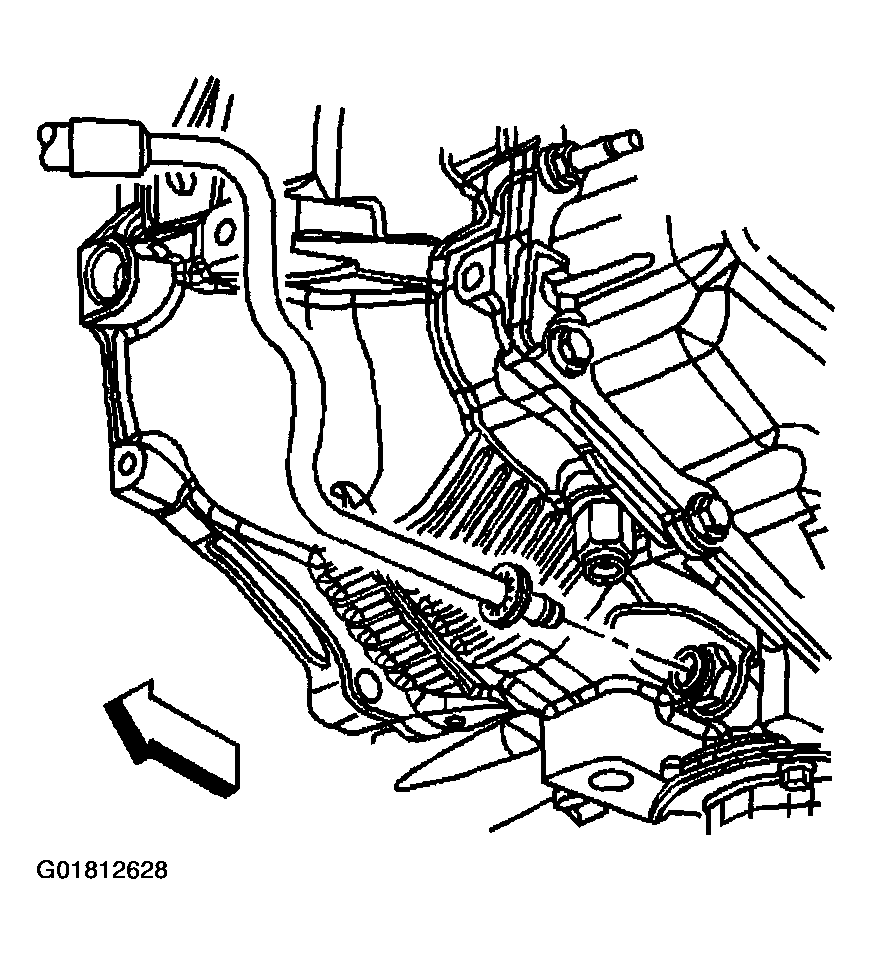

Fig 4: Removing TOC Inlet Hose
Courtesy of GENERAL MOTORS CORP.
Remove the TOC outlet hose from the transaxle.

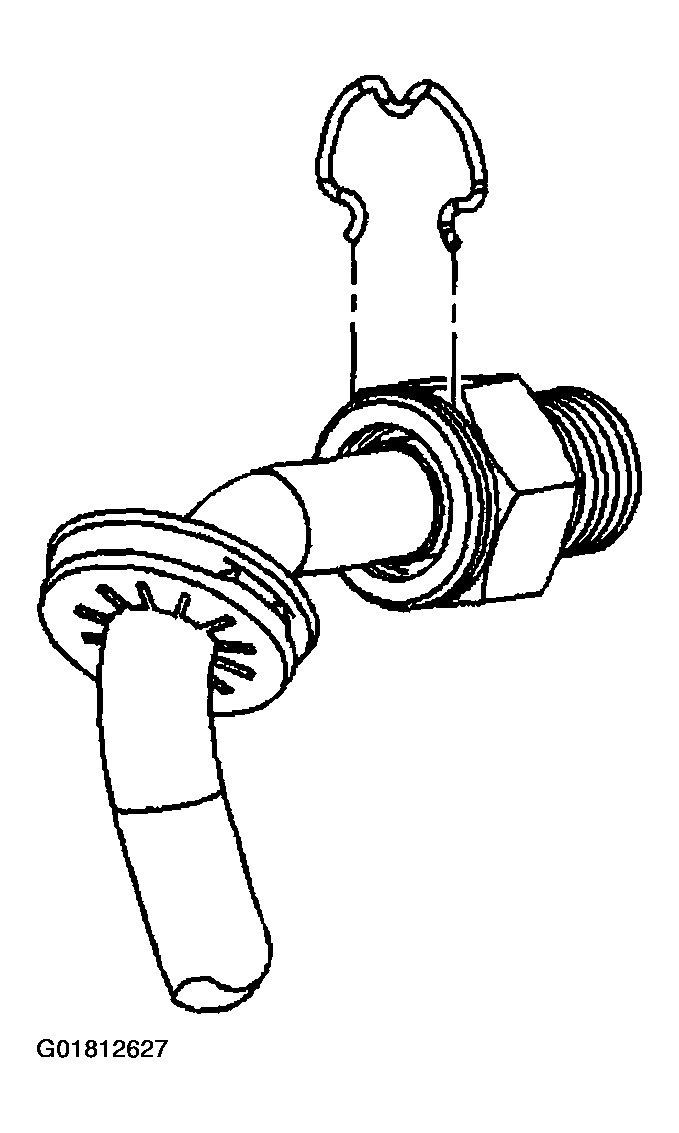

Fig 5: Removing TOC Outlet Hose
Courtesy of GENERAL MOTORS CORP.
Remove the TOC hoses from the radiator.
Remove the TOC hoses.

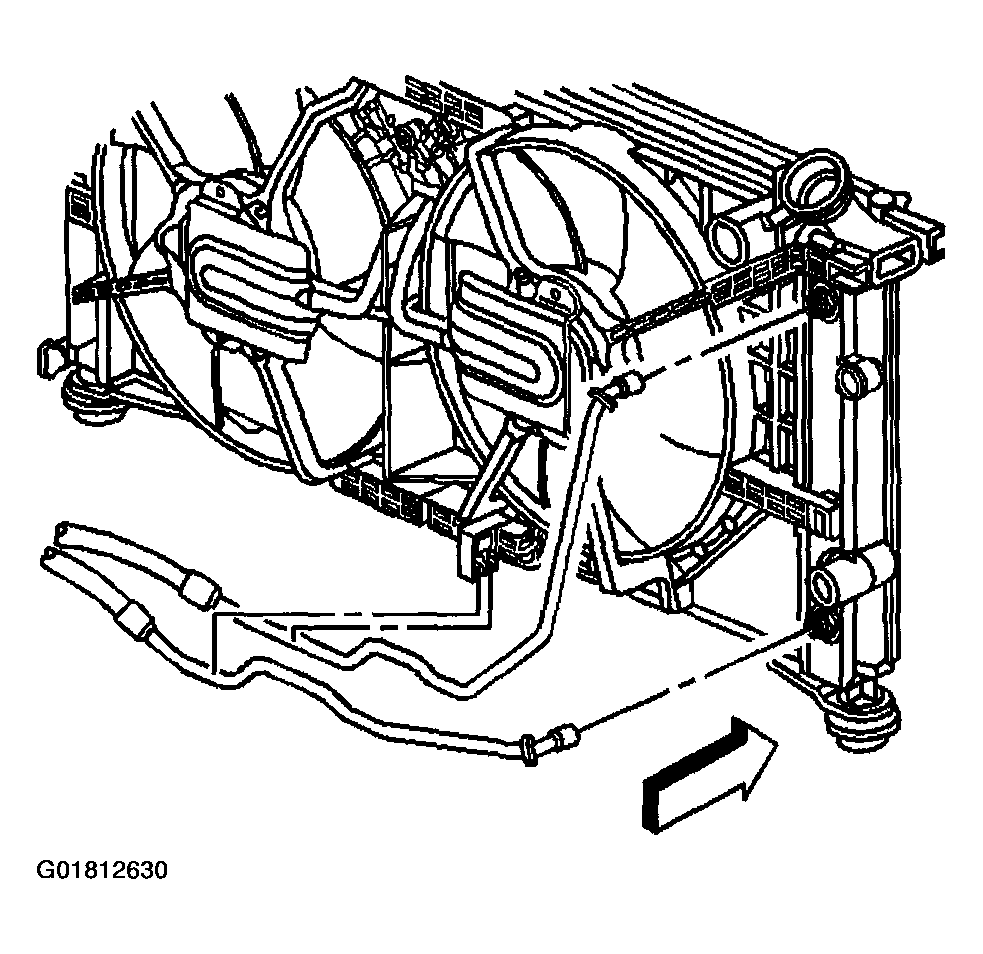

Fig 6: Removing TOC Hoses
