Installation Procedure

NOTE: Allow sufficient clearance around the transaxle oil cooler pipes and around the hoses to prevent damage or wear which may cause fluid loss

Install the TOC hose connector retainers.

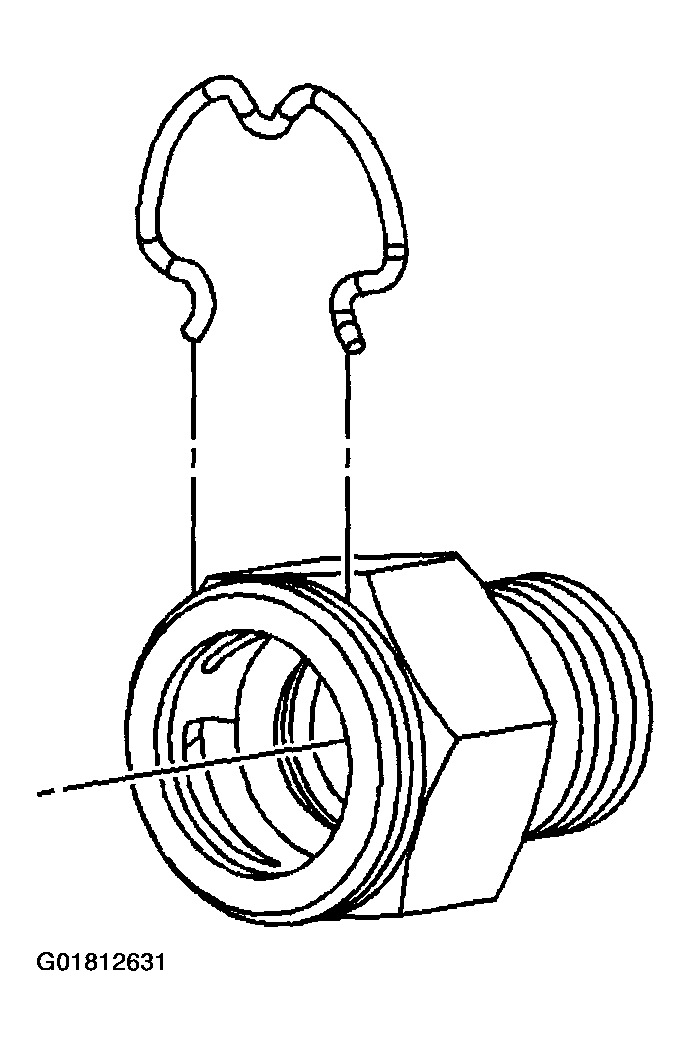

Fig 1: Installing TOC Hose Connector Retainers
Courtesy of GENERAL MOTORS CORP.
Install the TOC hoses to the radiator.

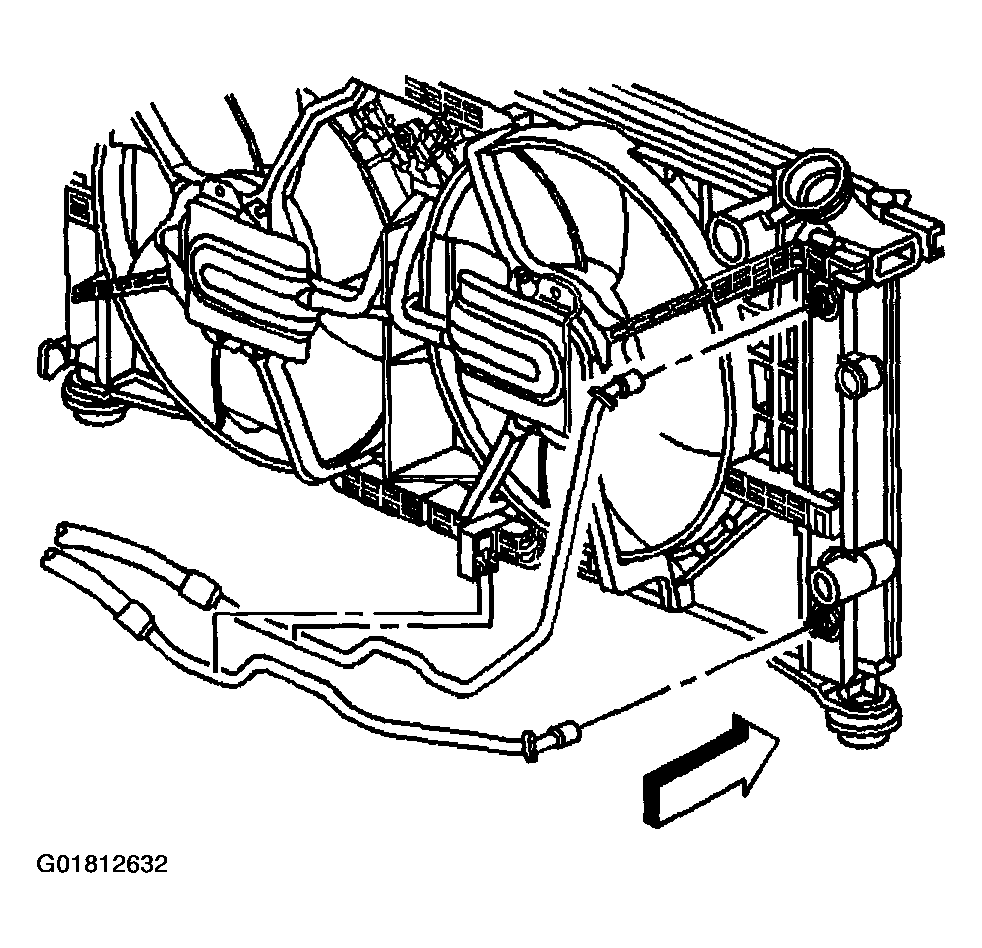

Fig 2: Installing TOC Hoses
Courtesy of GENERAL MOTORS CORP.
Install the TOC inlet hose to the transaxle.

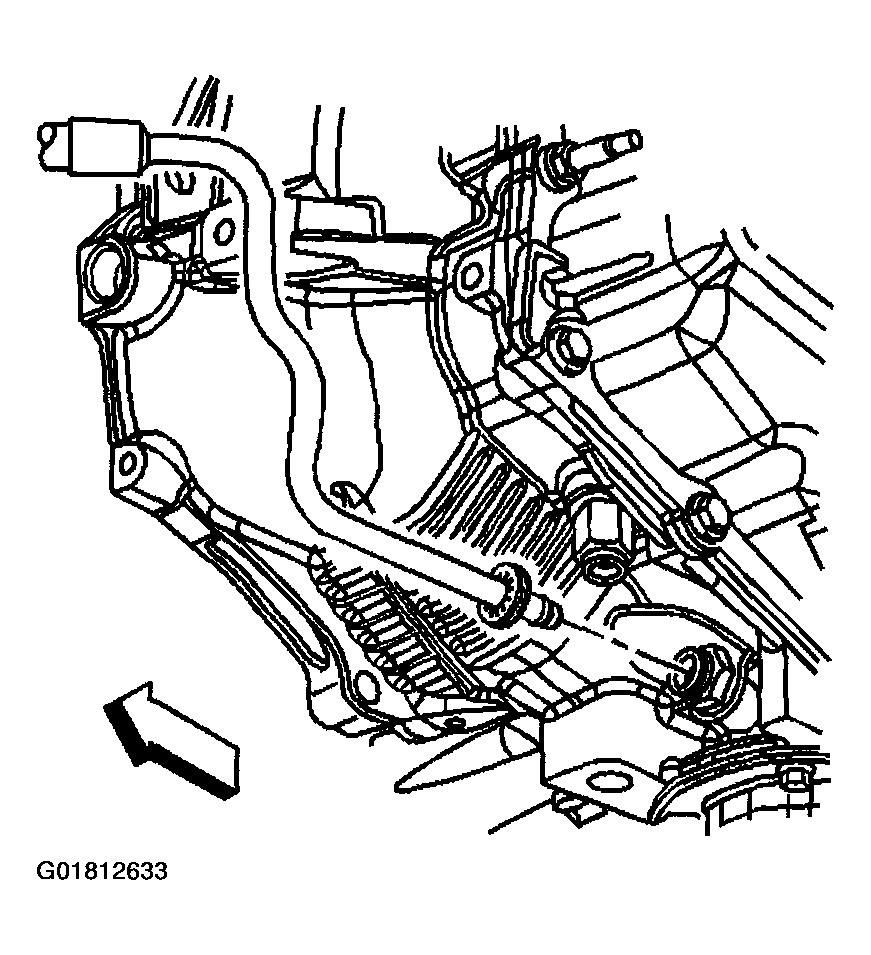

Fig 3: Installing TOC Inlet Hose
Courtesy of GENERAL MOTORS CORP.
Install the TOC outlet hose to the transaxle.

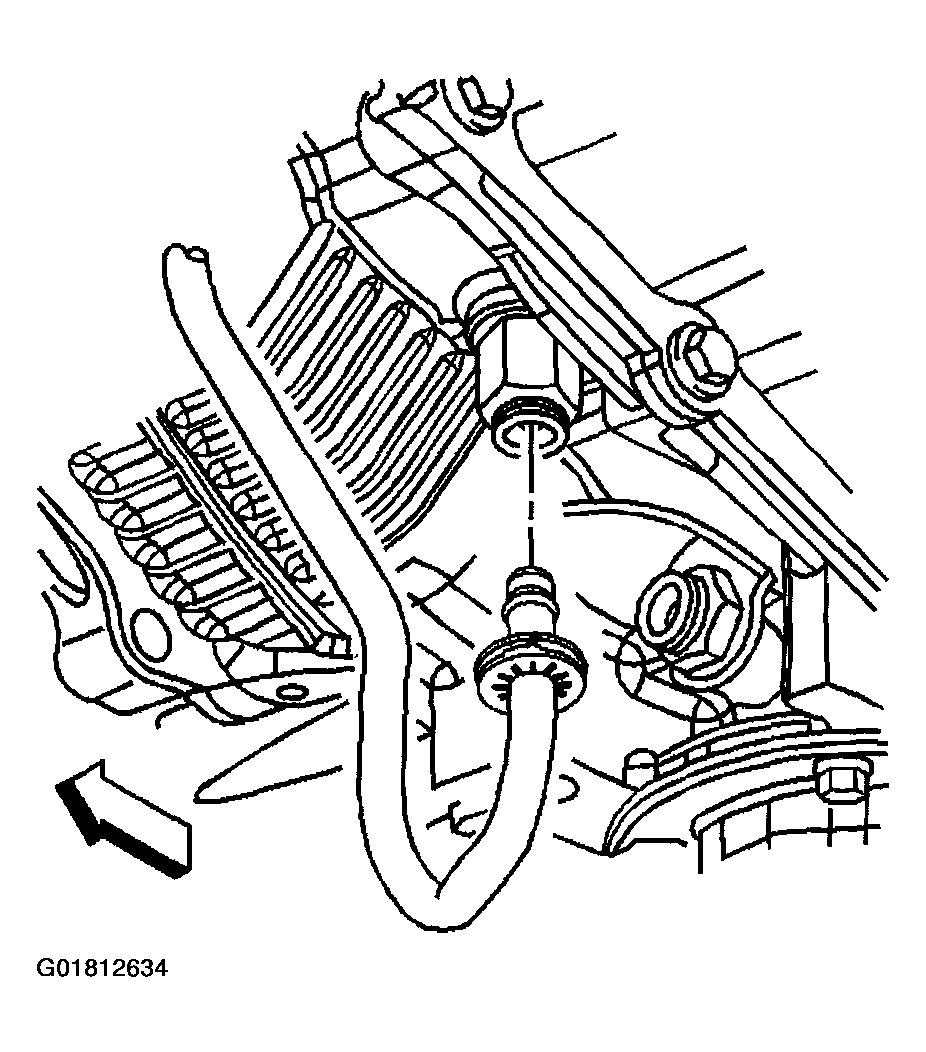

Fig 4: Installing TOC Outlet Hose
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE
Install the TOC hose retainer and the bolt.
Tighten

Tighten the bolt to 25 N.m (18 lb ft).
Lower the vehicle.

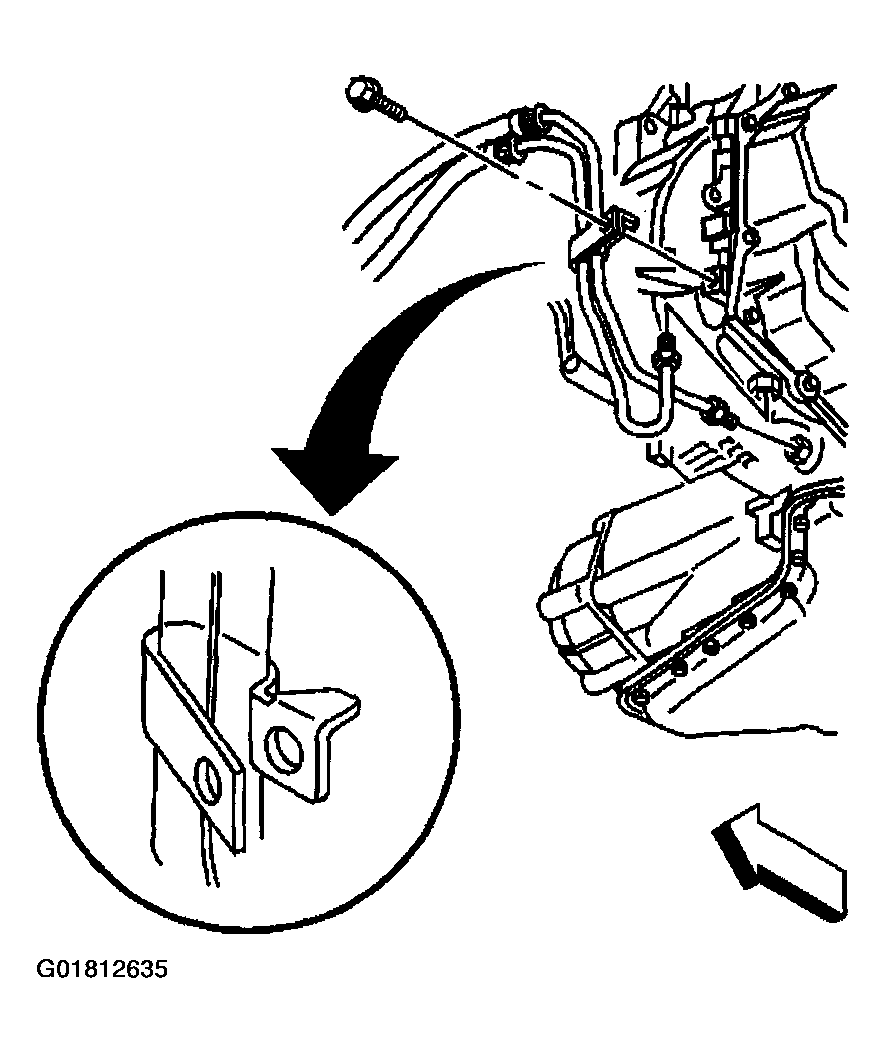

Fig 5: Installing TOC Hose Retainer Bolt
Courtesy of GENERAL MOTORS CORP.

NOTE: Do NOT overfill the transaxle. The overfilling of the transaxle causes foaming, loss of fluid, shift complaints, and possible damage to the transaxle
Adjust the fluid level. Refer to Transmission Fluid Checking Procedure .
