Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the left front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the left engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .
  4. Use a utility stand with a block of wood in order to support the transaxle.
  5. Remove the transaxle mount upper nuts.
  6. Remove the transaxle mount bracket bolts.

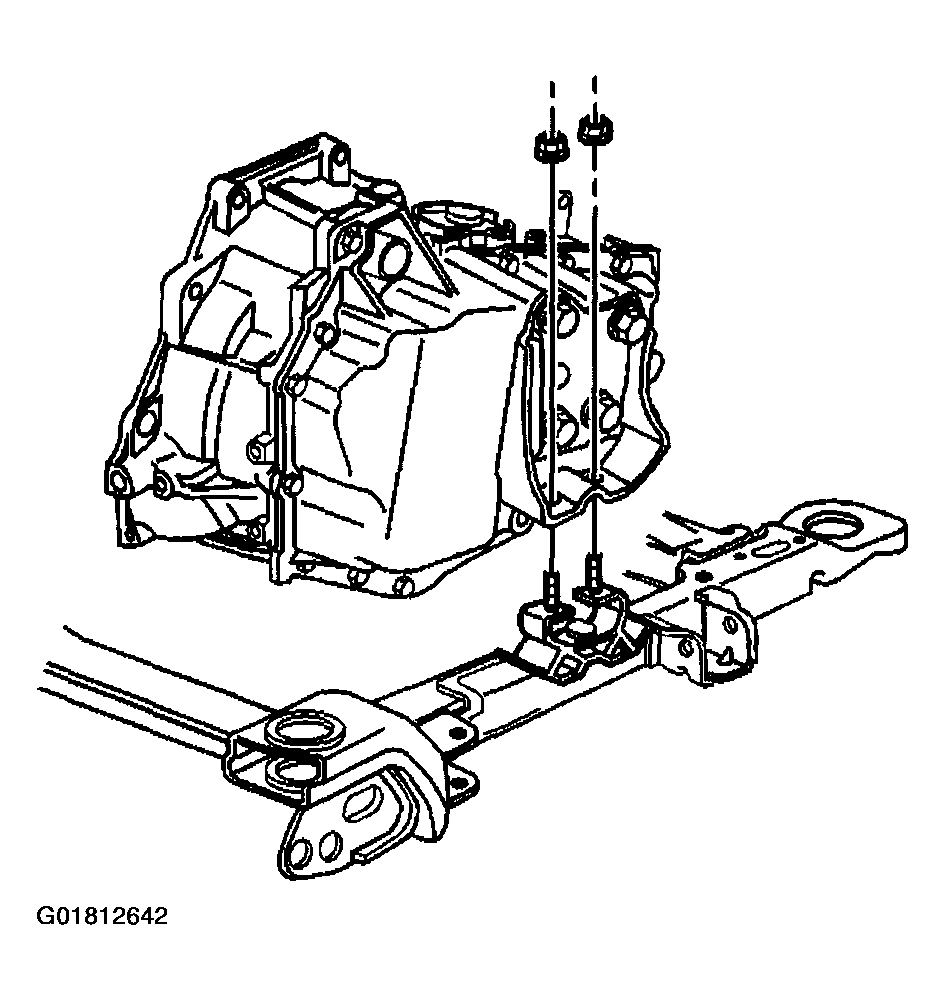

    Fig 1: Removing Transaxle Mount Upper Nuts, Bracket & Bolts
    G01812642Courtesy of GENERAL MOTORS CORP.
  7. Remove the transaxle mount bracket.

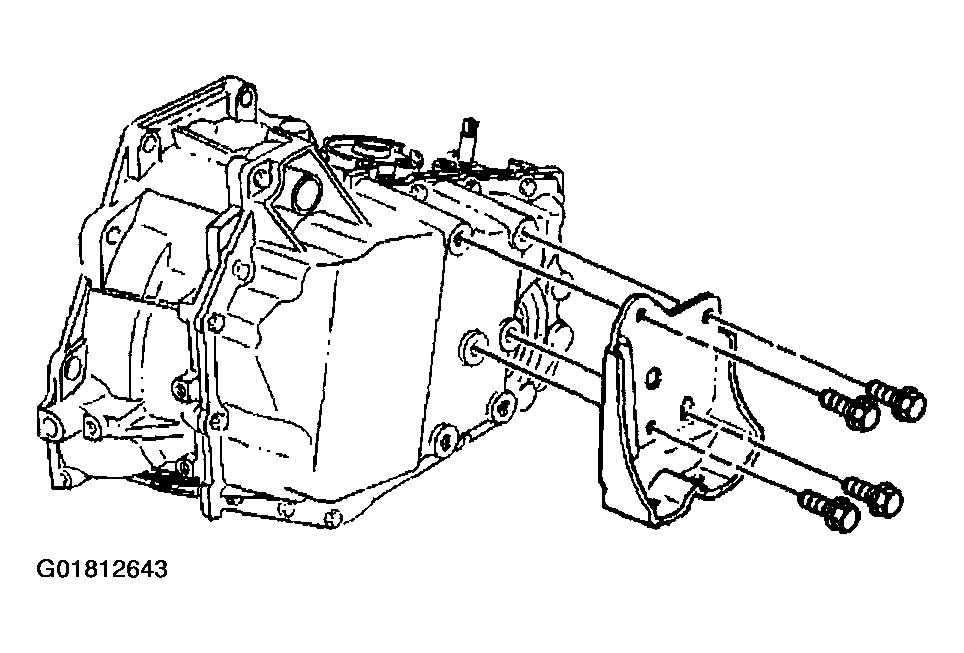

    Fig 2: Removing Transaxle Mount Bracket & Bolts
    G01812643Courtesy of GENERAL MOTORS CORP.
