Installation Procedure

  1. Position the transaxle mount bracket.
    NOTE: Refer to FASTENER NOTICE
  2. Install the transaxle mount bracket bolts.

    Tighten

    Start with the forward lower bolt and work clockwise to tighten the transaxle mount bracket bolts to 95 N.m (70 lb ft).

  3. Remove the utility stand.

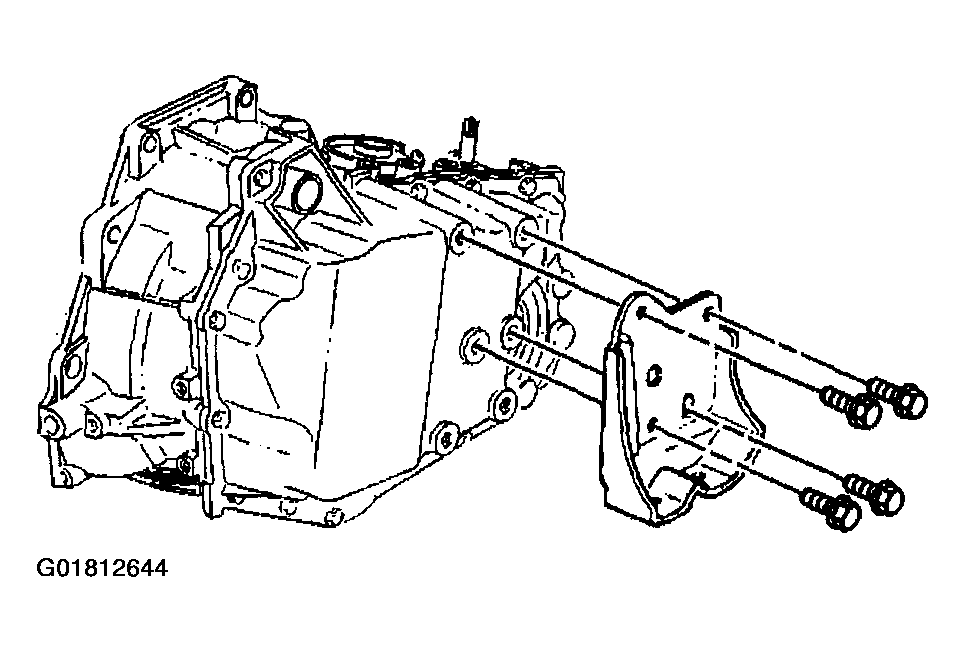

    Fig 1: Installing Transaxle Mount Bracket & Bolts
    G01812644Courtesy of GENERAL MOTORS CORP.
  4. Install the transaxle mount upper nuts.

    Tighten

    Tighten the nuts to 47 N.m (35 lb ft).

  5. Install the left engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .
  6. Install the left front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  7. Lower the vehicle.

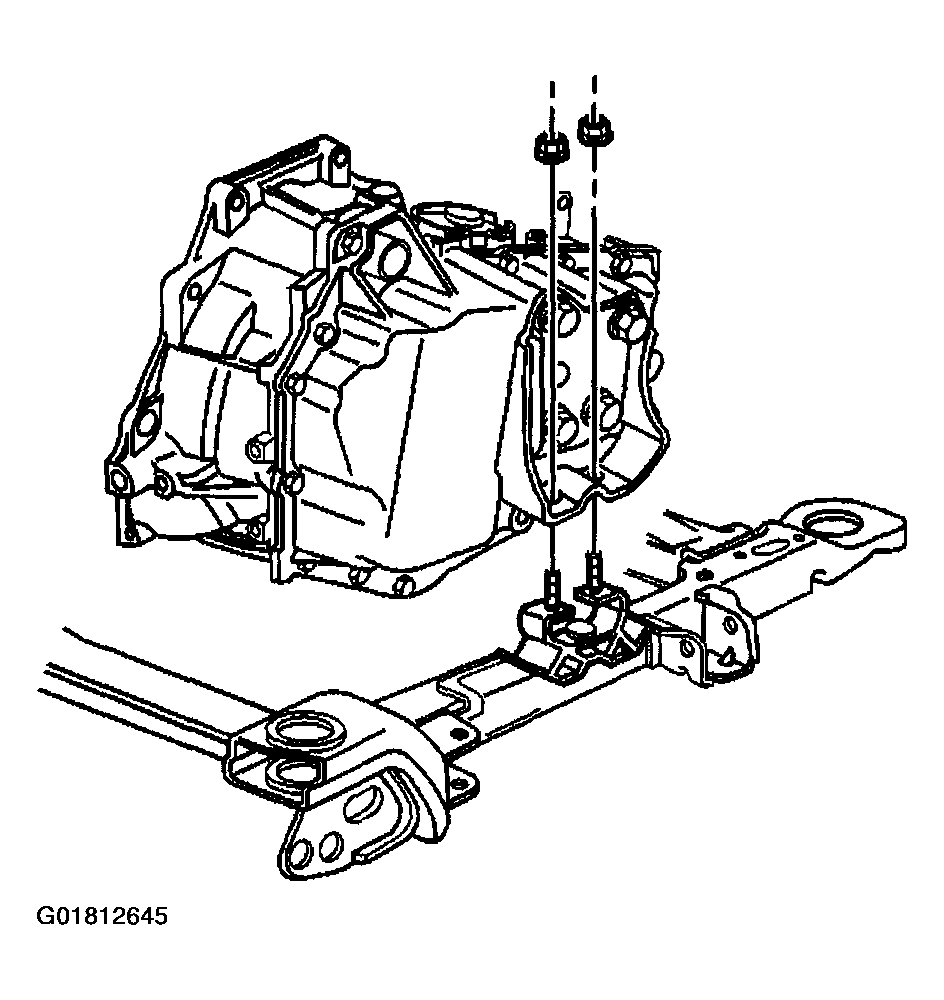

    Fig 2: Installing Transaxle Mount Upper Nuts, Bracket & Bolts
    G01812645Courtesy of GENERAL MOTORS CORP.
