Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the right front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .
  4. Remove the transaxle brace bolts.
  5. Remove the transaxle brace.

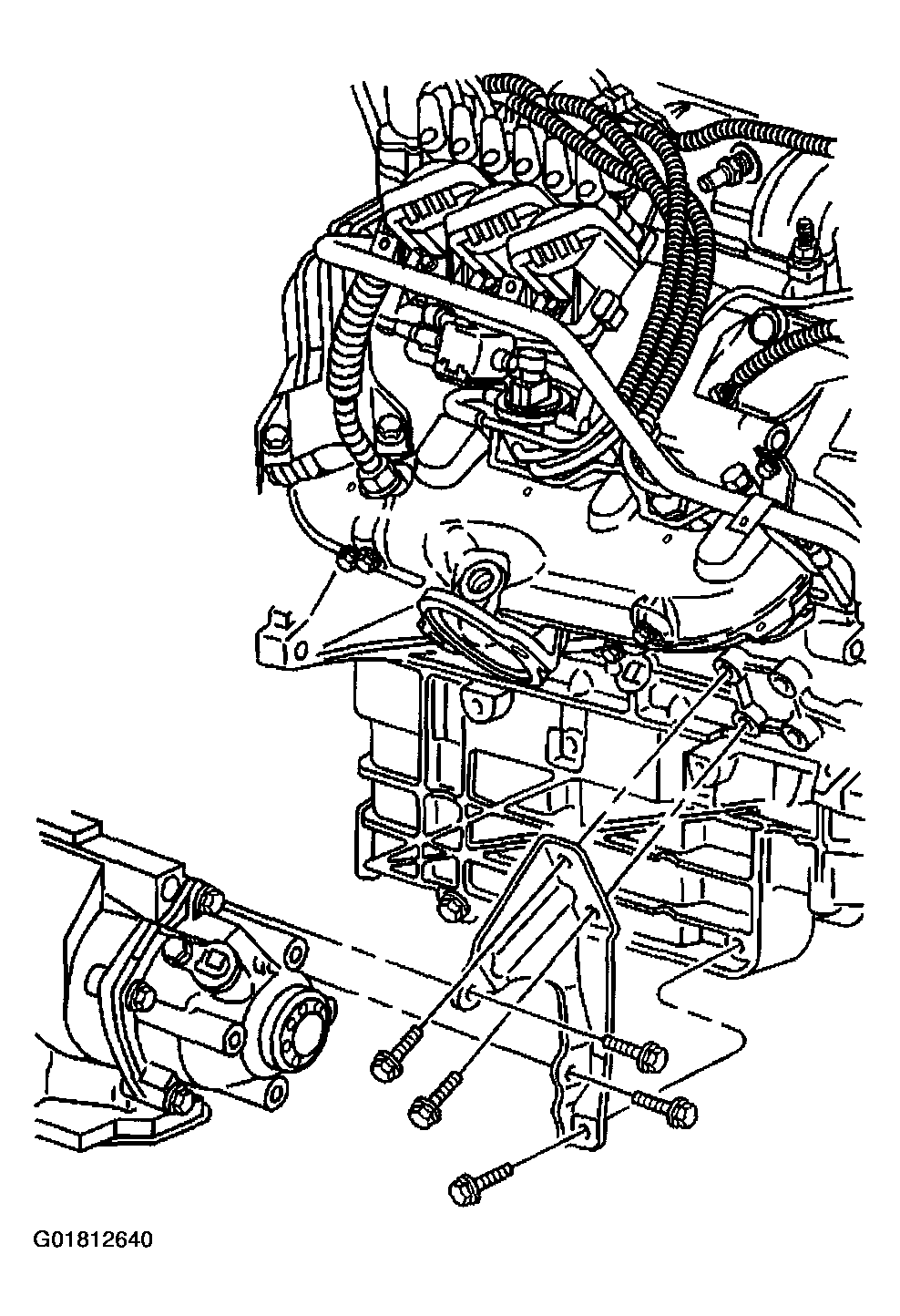

    Fig 1: Removing Transaxle Brace & Bolts
    G01812640Courtesy of GENERAL MOTORS CORP.
