Installation Procedure

  1. Position the transaxle brace to transaxle and engine.
  2. Hand start the bolts to the engine.
  3. Hand start the bolts to the transaxle.
    NOTE: Refer to FASTENER NOTICE
  4. Install the brace bolts to the engine.

    Tighten

    Tighten the bolts to 43 N.m (32 lb ft).

  5. Install the brace bolts to the transaxle.

    Tighten

    Tighten the bolts to 43 N.m (32 lb ft).

  6. Install the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE .
  7. Install the right front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  8. Lower the vehicle.

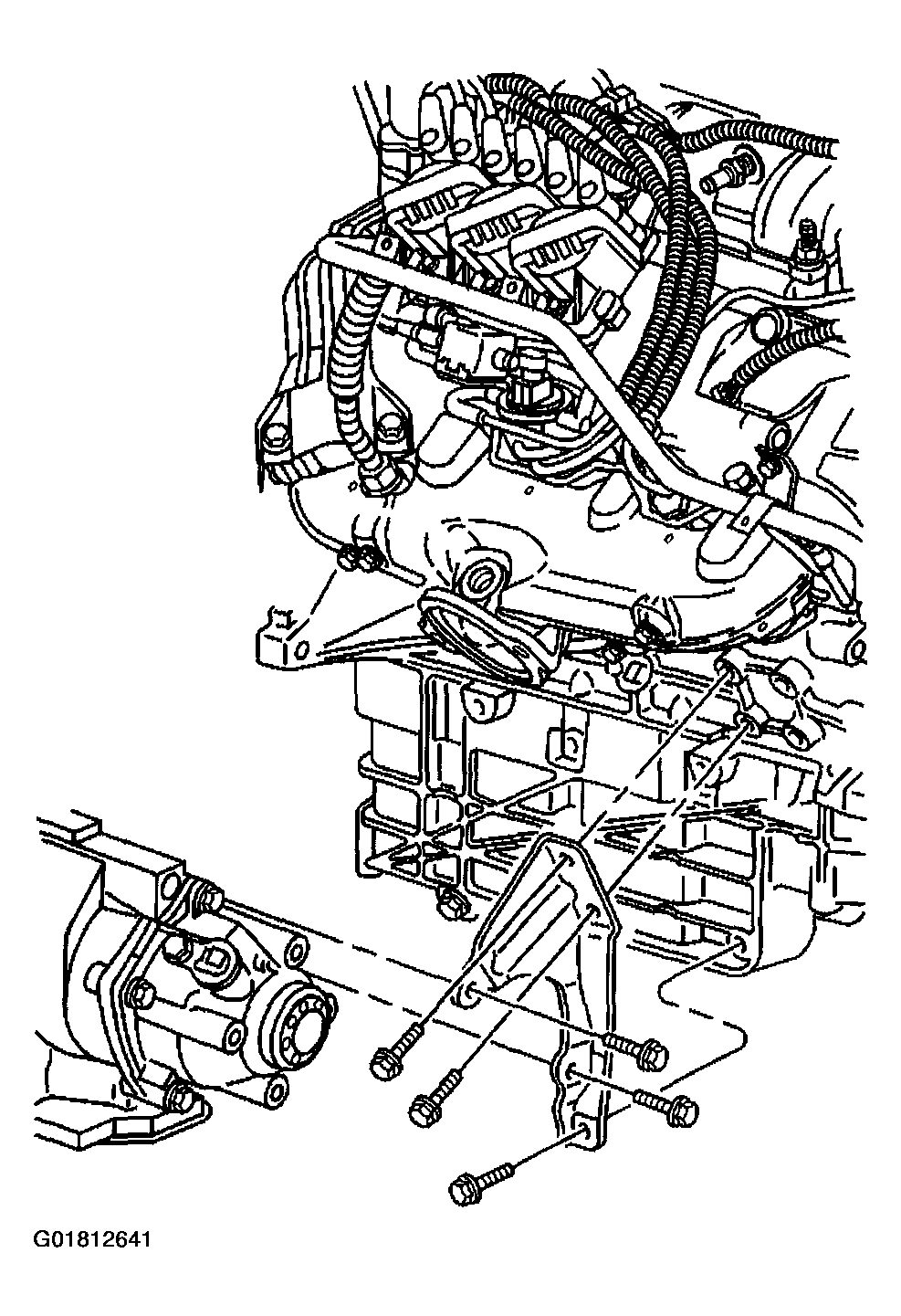

    Fig 1: Installing Transaxle Brace & Bolts
    G01812641Courtesy of GENERAL MOTORS CORP.
