Installation Procedure

  1. Install the manual 2-1 band servo cover gasket (105) into the case. Lubricate the manual 2-1 band servo cover gasket with automatic transmission fluid.
  2. Install the manual 2-1 band servo (106-116).
  3. Install the manual 2-1 band servo cover (104).
    NOTE: Refer to FASTENER NOTICE
  4. Install the manual 2-1 band servo cover bolts (103).

    Tighten

    Tighten the bolts (103) to 25 N.m (18 lb ft).

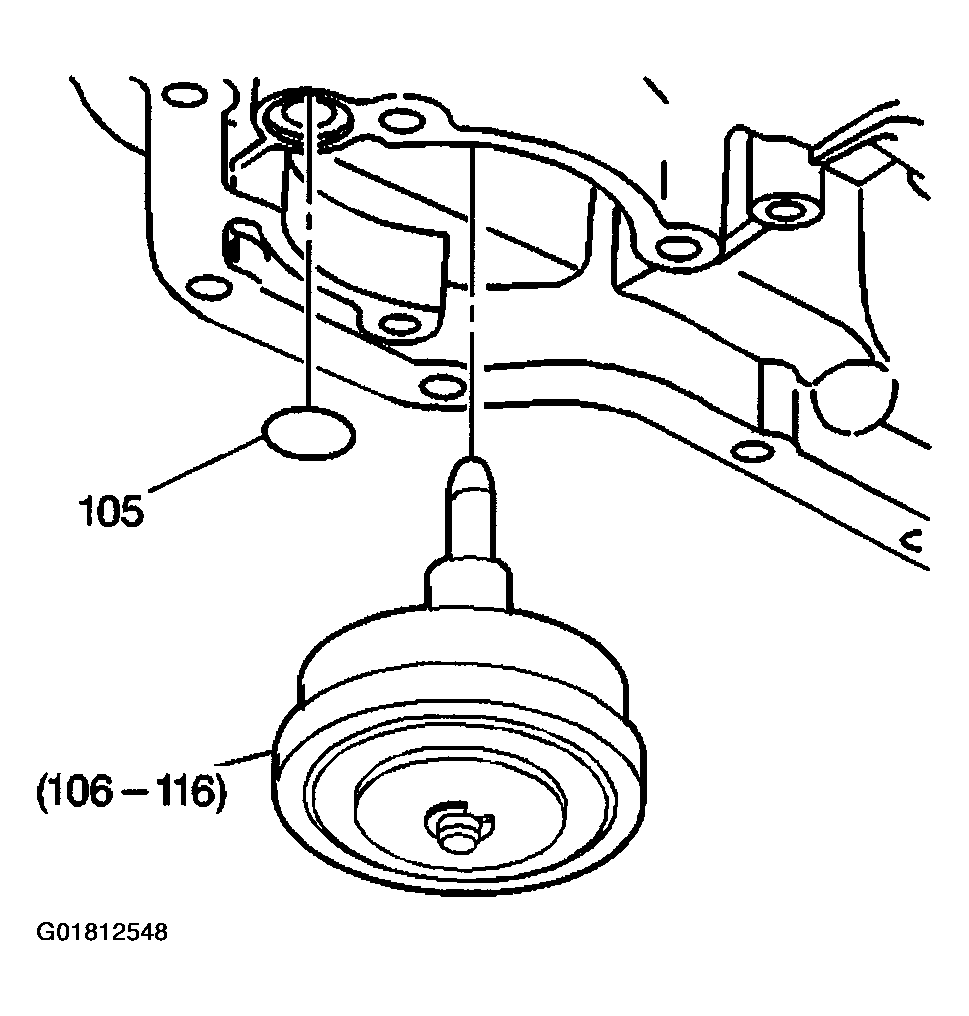

    Fig 1: Installing Manual 2-1 Band Servo, Cover & Gasket
    G01812548Courtesy of GENERAL MOTORS CORP.
  5. Install the accumulator (132).

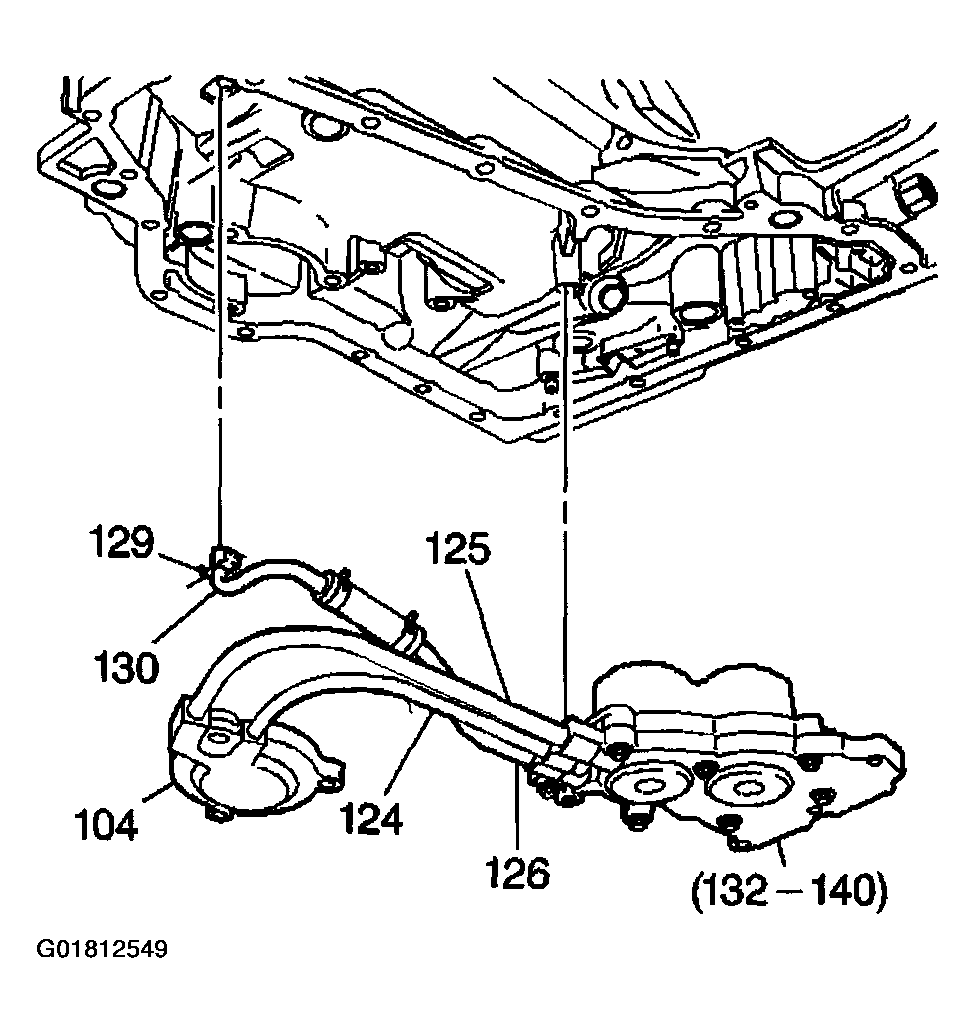

    Fig 2: Installing Accumulator
    G01812549Courtesy of GENERAL MOTORS CORP.
  6. Install the lube oil pipe (130) into the case at the lube hole for the front differential carrier internal gear.
  7. Use a flat-bladed tool in order to lock the lube oil pipe retainer (129) into the case.
  8. Install the accumulator bolts (131).

    Tighten

    Tighten the bolts (131) to 12 N.m (106 lb in).

  9. If removed, install a new filter seal.
  10. Install the filter. Refer to Oil Filter and Seal Replacement
  11. Install the oil pan. Refer to Oil Pan Replacement  .
  12. Lower the vehicle.

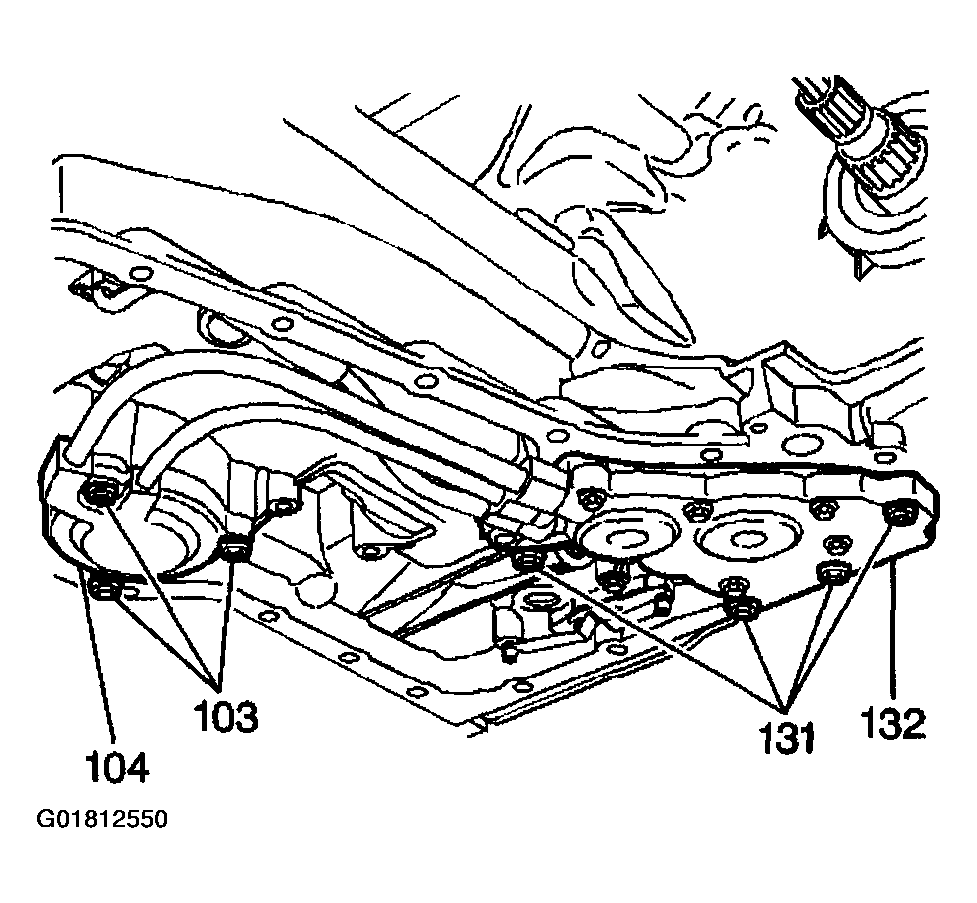

    Fig 3: Installing Accumulator Bolts & Manual 2-1 Band Servo Cover Bolts
    G01812550Courtesy of GENERAL MOTORS CORP.
