Removal Procedure

  1. Remove the case side cover. Refer to Case Side Cover Replacement  .
  2. Disconnect the transaxle wiring harness.
  3. Using a small screwdriver or pick, remove the 2-3 shift solenoid valve retainer (314C) from the control valve body (301).
  4. Remove the 2-3 shift solenoid (315B).
  5. Remove the O-ring seal (316) from the 2-3 shift solenoid valve (315B) ONLY if it is damaged.

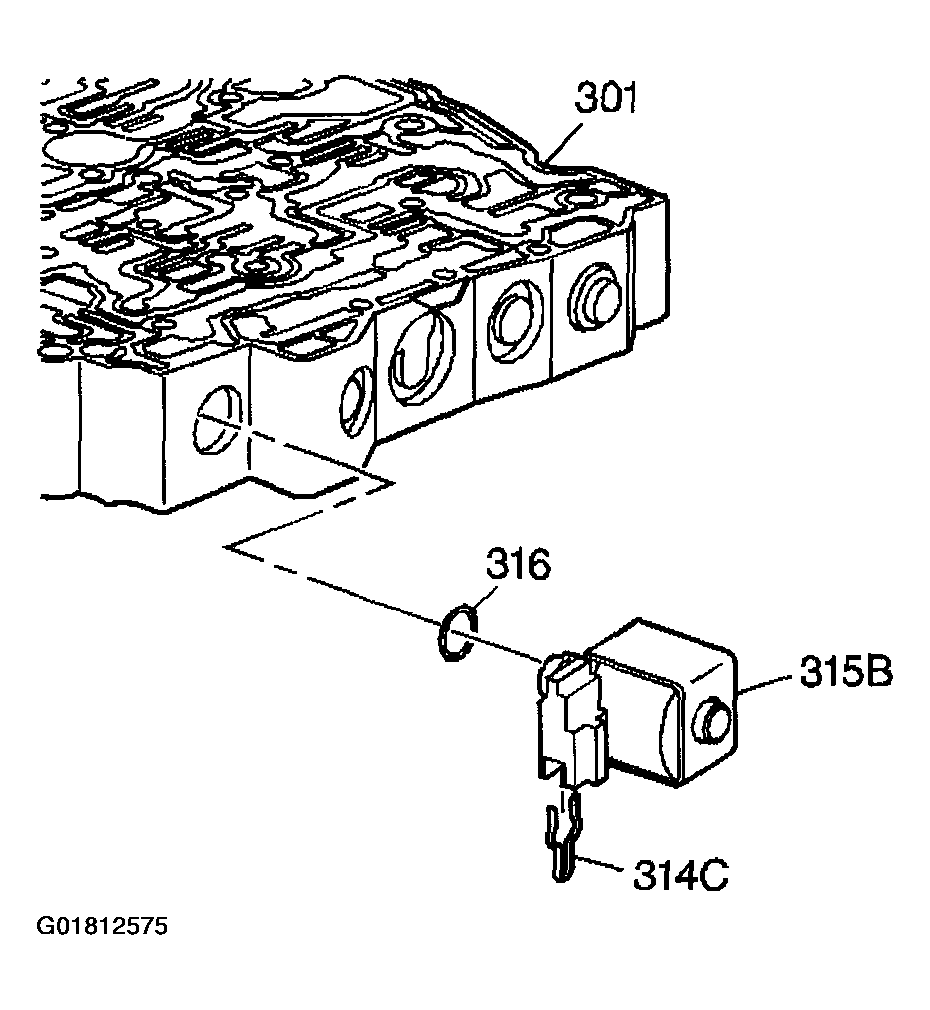

    Fig 1: Removing O-Ring Seal & 2-3 Shift Solenoid Valve
    G01812575Courtesy of GENERAL MOTORS CORP.
