Installation Procedure

  1. Install a new O-ring seal (316) onto the 2-3 shift solenoid valve (315B) if the O-ring was removed
  2. Install the 2-3 shift solenoid (315B)
  3. Install the 2-3 shift solenoid valve retainer (314C) into the control valve body (301).
  4. Connect the transaxle wiring harness.
  5. Install the case side cover. Refer to Case Side Cover Replacement  .

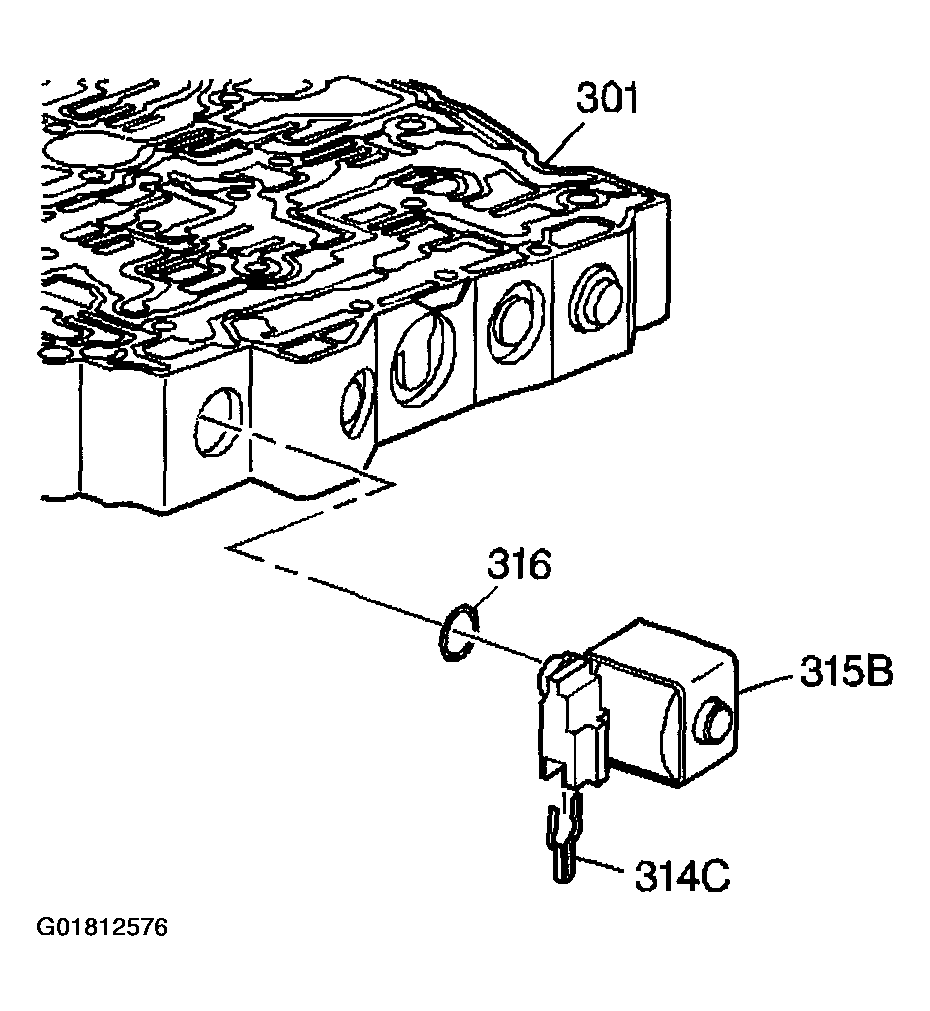

    Fig 1: Installing O-Ring Seal & 2-3 Shift Solenoid Valve
    G01812576Courtesy of GENERAL MOTORS CORP.
