Removal Procedure

  1. Remove the case side cover. Refer to Case Side Cover Replacement  .
  2. Disconnect the transaxle wiring harness.
  3. Remove the 1-2 shift solenoid (315A).

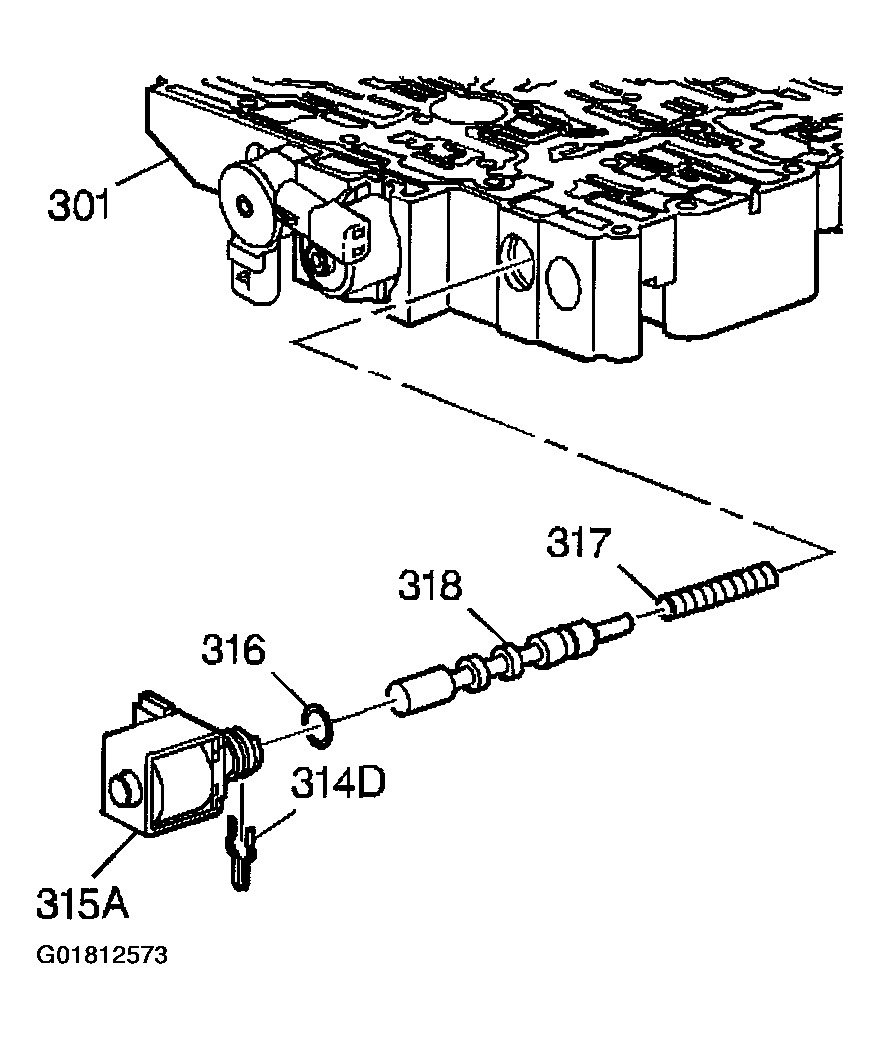

    Fig 1: Removing 1-2 Shift Solenoid
    G01812573Courtesy of GENERAL MOTORS CORP.
