Installation Procedure

  1. Install the 1-2 shift solenoid (315A).
  2. Connect the transaxle wiring harness.
  3. Install the case side cover. Refer to Case Side Cover Replacement  .

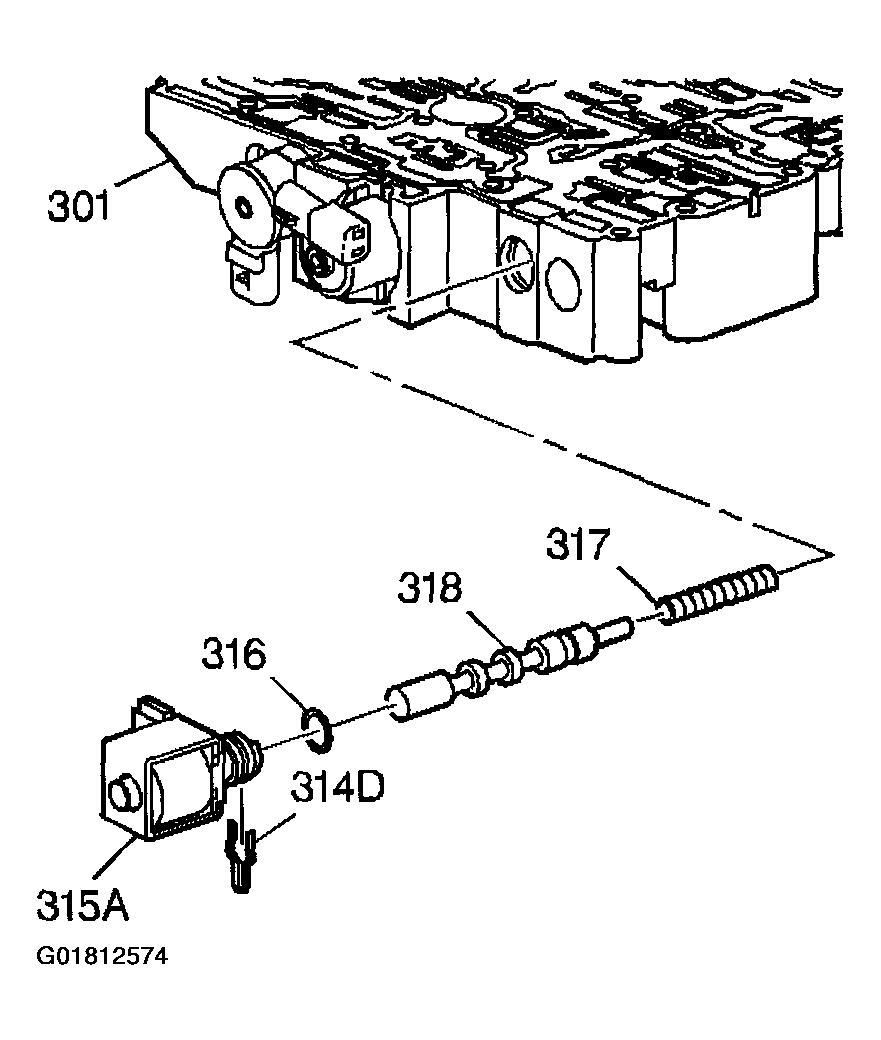

    Fig 1: Installing 1-2 Shift Solenoid
    G01812574Courtesy of GENERAL MOTORS CORP.
