Second and Third Gear Only (1-2 Solenoid Stuck Off)

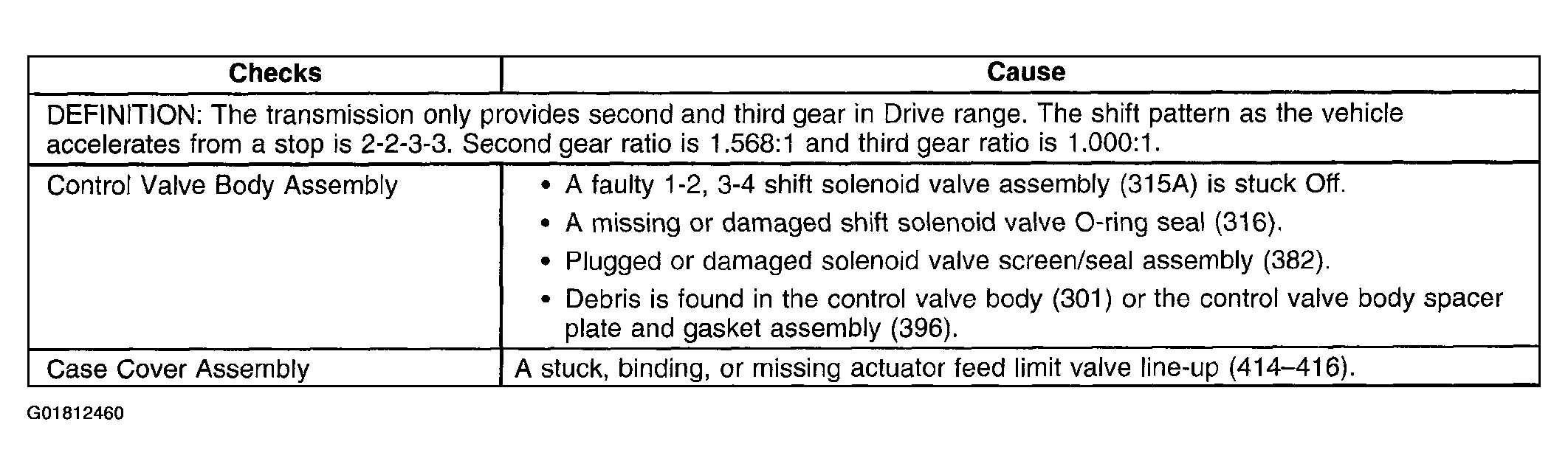

Fig 1: Second And Third Gear Only (1-2 Solenoid Stuck Off)

G01812460

Courtesy of GENERAL MOTORS CORP.
