Range Selector Displays Incorrect Range: Notes

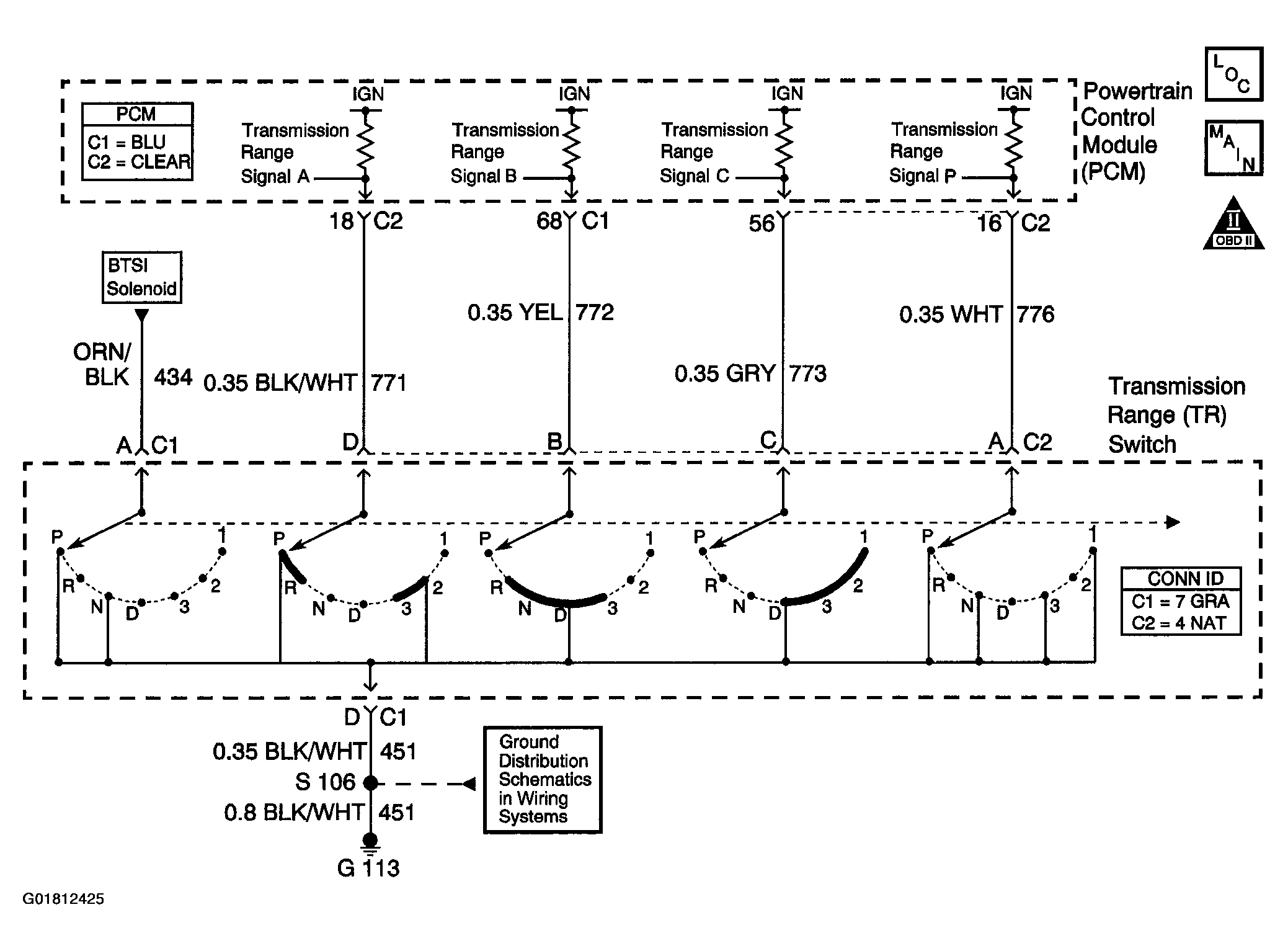

Fig 1: Range Selector Displays Incorrect Range Schematics

G01812425

Courtesy of GENERAL MOTORS CORP.
