Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the relay (2) in the same position as removed.
  2. Install the electrical center cover.

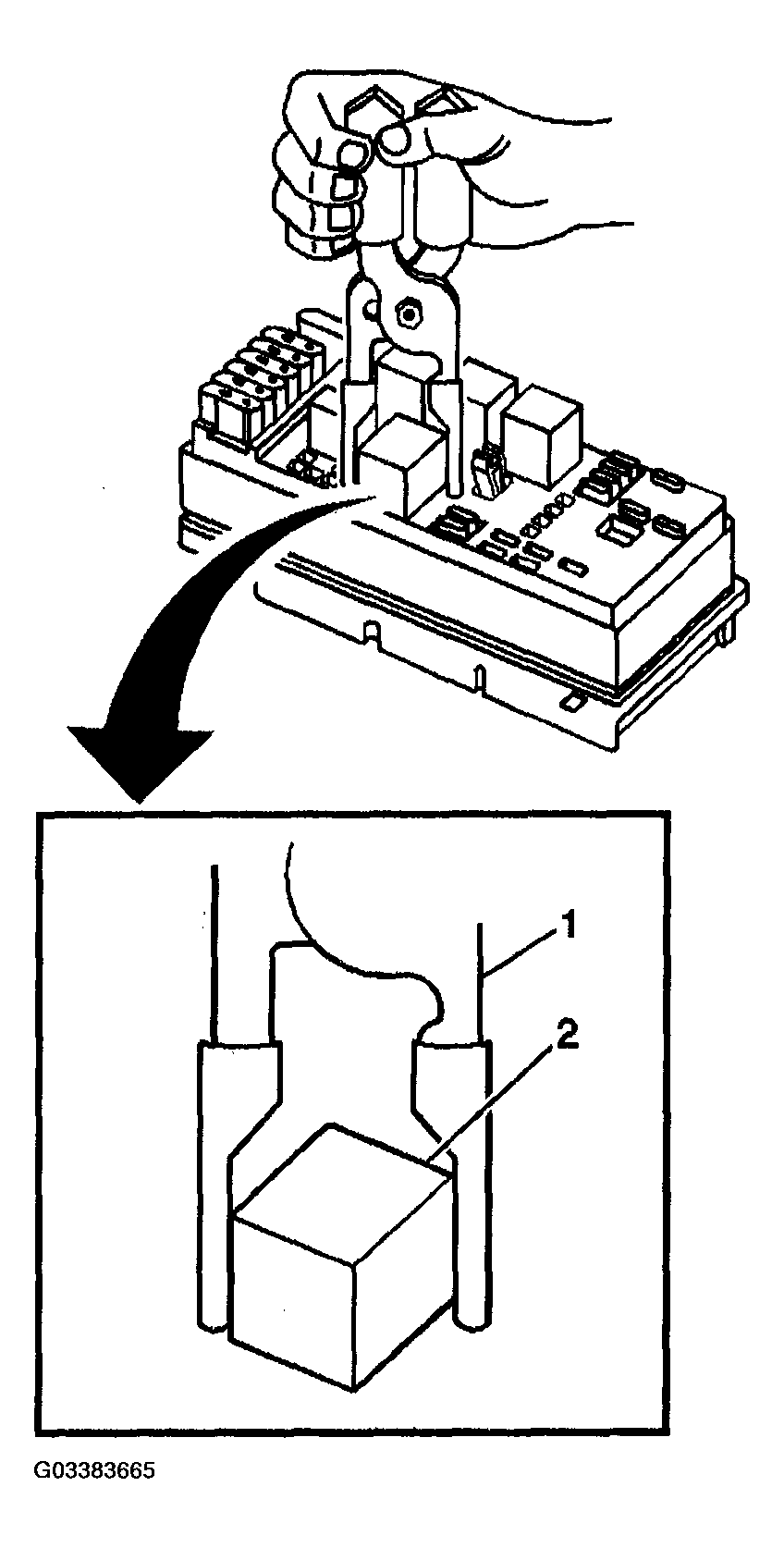

    Fig 1: Installing Relay
    G03383665Courtesy of GENERAL MOTORS CORP.
