Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  2. Remove the right door sill plate. DOOR SILL PLATE REPLACEMENT in Interior Trim.
  3. Remove the floor kick-up pad on the passenger side. Refer to KICK-UP PANEL REPLACEMENT - FRONT FLOOR in Interior Trim.
  4. Remove the retaining bolt which secures the multi-use bracket to the electrical wiring junction block.
    Fig 1: Removing Right Door Sill Plate
    G03383670Courtesy of GENERAL MOTORS CORP.
  5. Disengage the retaining clip from the outboard side, twist the electrical wiring block, and pull outward.
  6. Remove the battery cable lead.
  7. Disconnect 3 64-way block connectors and 3 I/P wiring harness connectors.
  8. Transfer all fuses and relays as required.

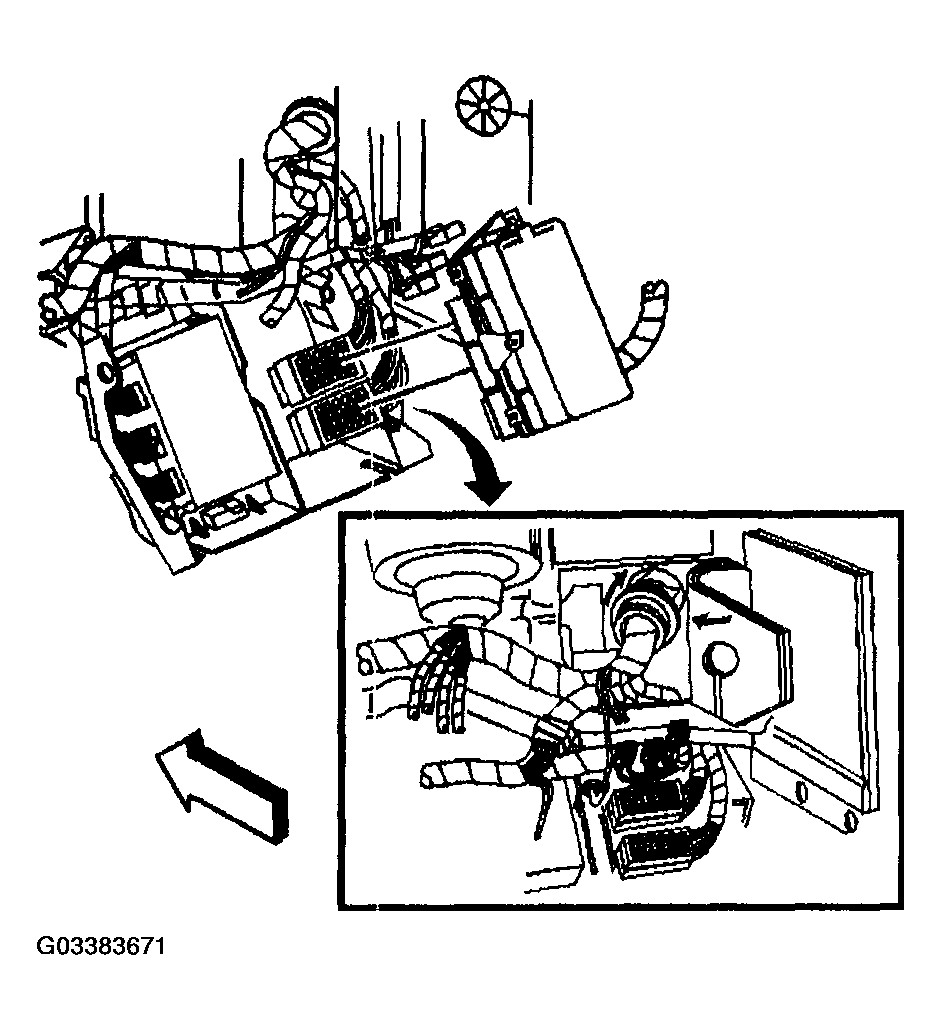

    Fig 2: Disengaging Retaining Clip From Outboard Side
    G03383671Courtesy of GENERAL MOTORS CORP.
