Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air baffle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the air baffle bolts.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  3. Lower the vehicle.

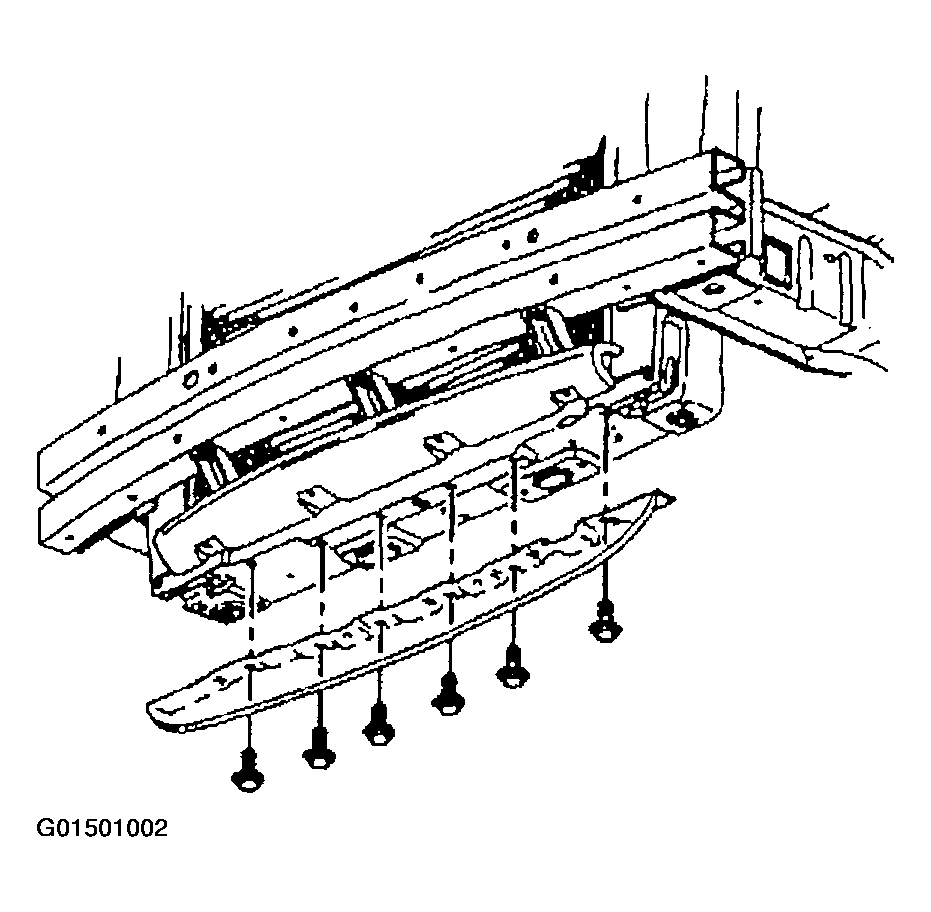

Fig 1: Installing Air Baffle Bolts And Air Baffle
G01501002Courtesy of GENERAL MOTORS CORP.
