Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sunroof drain hose to the vehicle.
  2. Connect the rear sunroof drain hose to the drain tube at the base of the C-pillar.

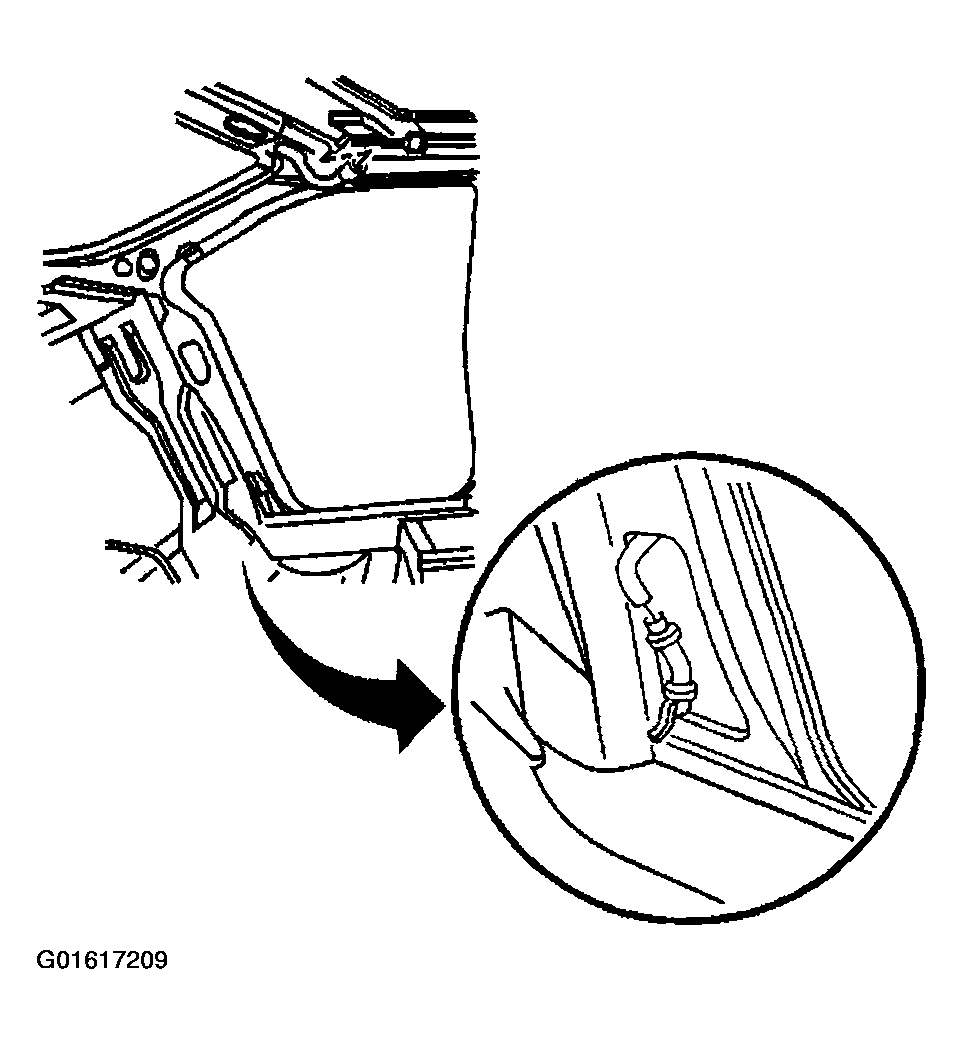

    Fig 1: Sunroof Drain Hose (Rear)
    G01617209Courtesy of GENERAL MOTORS CORP.
  3. Install the rear sunroof drain hose (1) to the C-pillar.
  4. Connect the rear sunroof drain hose to the sunroof module spigot.
  5. Inspect the rear sunroof drain hose for proper routing.
  6. Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.

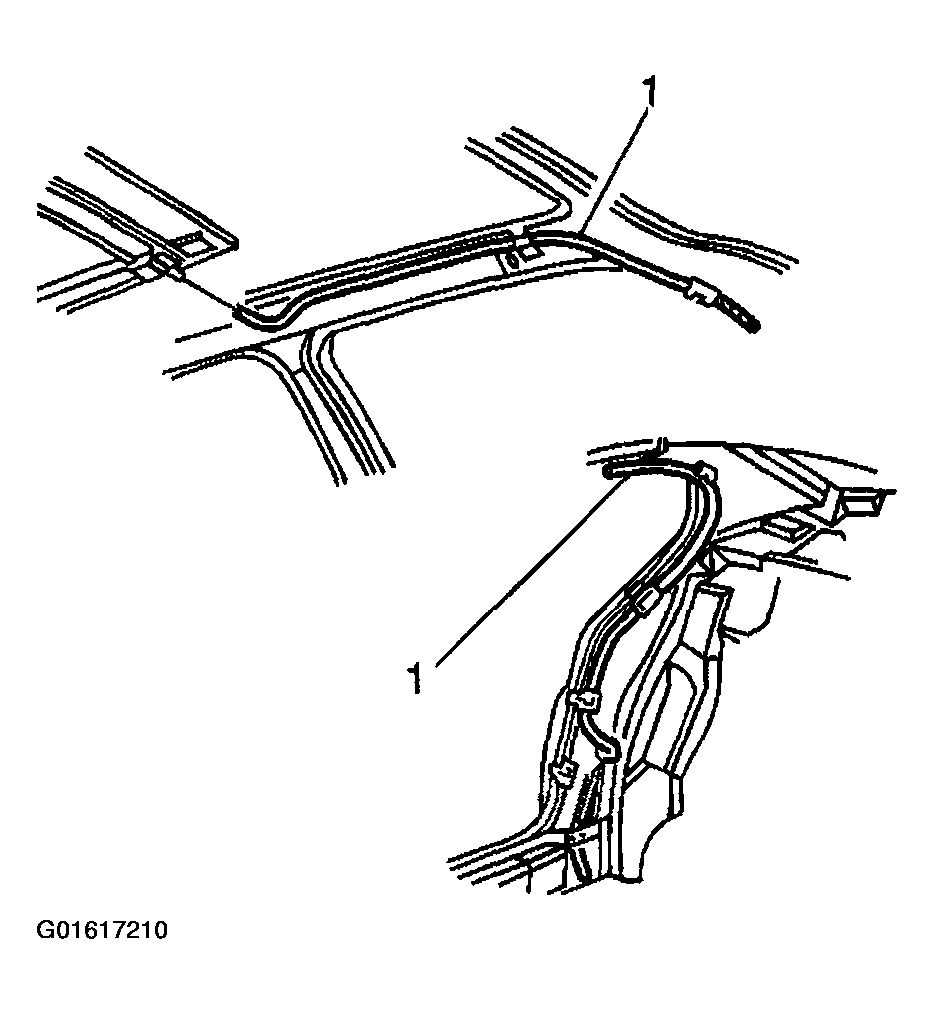

    Fig 2: Connecting Sunroof Drain Hose (Rear) To Sunroof Module Spigot
    G01617210Courtesy of GENERAL MOTORS CORP.
