Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tie the string to the new sunroof drain hose at the sunroof module.
  2. Install the front sunroof drain hose, by pulling the string from the front door hinge pillar access hole and routing it through the front door hinge pillar.
  3. Remove the string from the front sunroof drain hose.
  4. Install the end of the front sunroof drain hose to the grommet in the front door hinge pillar.
  5. Connect the front sunroof drain hose to the spigot on the sunroof module.
  6. Inspect the front sunroof drain hose for proper routing.
  7. Push the front carpet back to its original position.
  8. Install the front carpet retainers. Refer to CARPET RETAINER REPLACEMENT - FRONT .
  9. Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
  10. Install the parking brake pedal assembly, if removed. Refer to PARK BRAKE PEDAL ASSEMBLY in Park Brake.

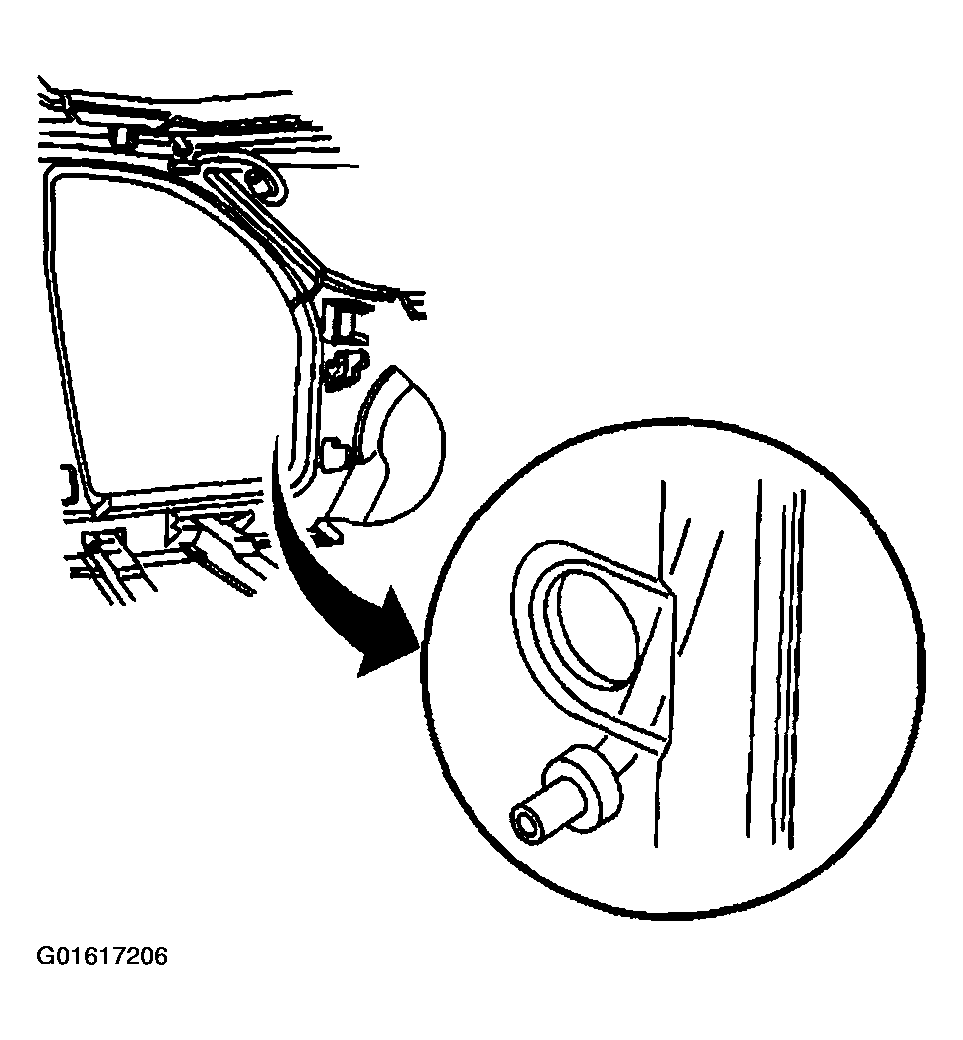

    Fig 1: Sunroof Drain Hose (Front)
    G01617206Courtesy of GENERAL MOTORS CORP.
