Anchor Bolt

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

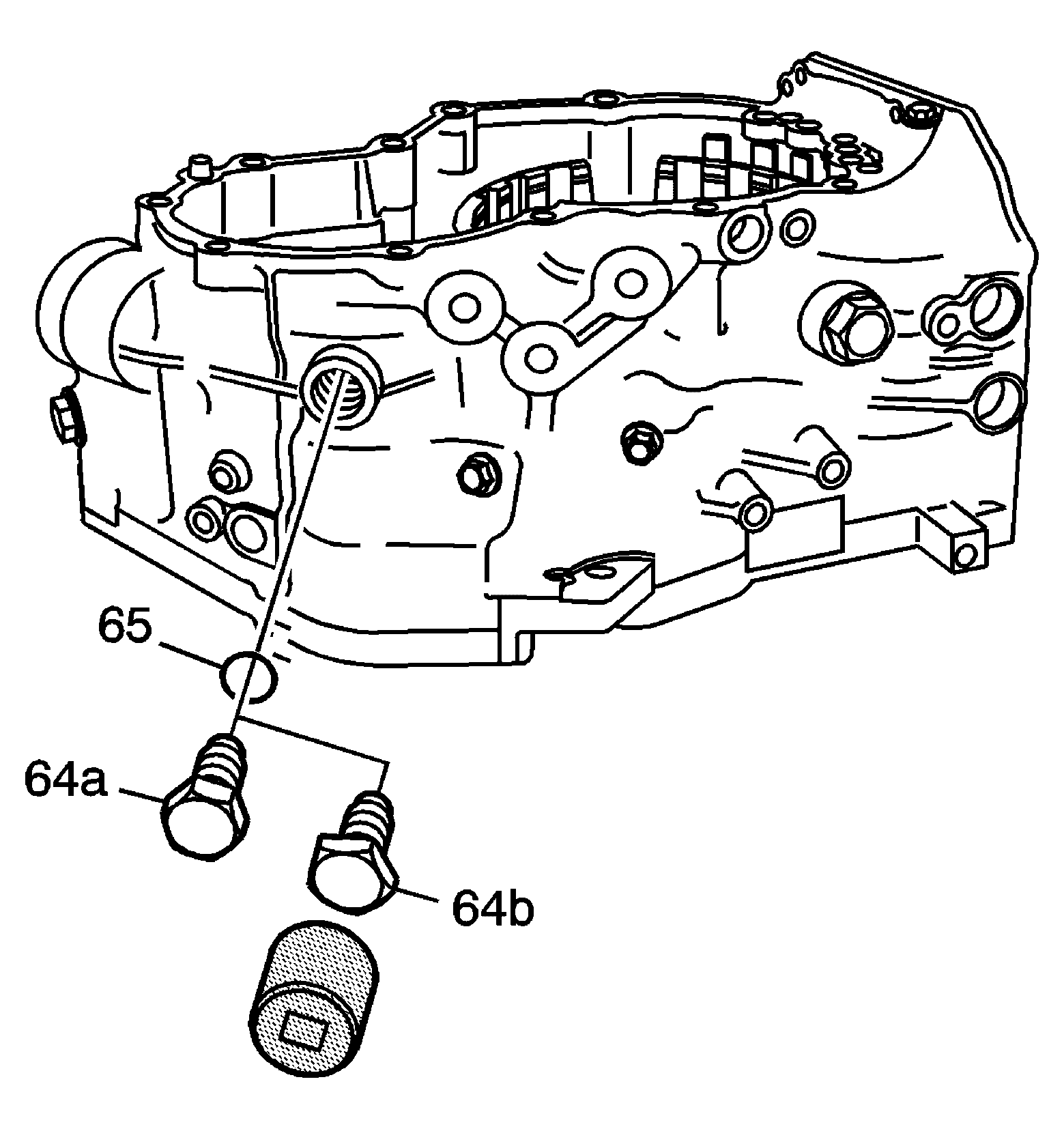

Fig 1: View Of 3rd Gear Band Anchor Bolt & O-Ring

Courtesy of GENERAL MOTORS CORP.

Remove the third gear band anchor bolt (64).
Inspect the anchor bolt and the bolt hole.
Apply automatic transmission fluid to a new O-ring (65).

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the new O-ring and third gear band anchor bolt (64).
Tighten: Tighten the anchor bolt to 133.3-199.9 N.m (98.31-147.44 lb ft)
