Transmission Case Cover Assembly Disassemble

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

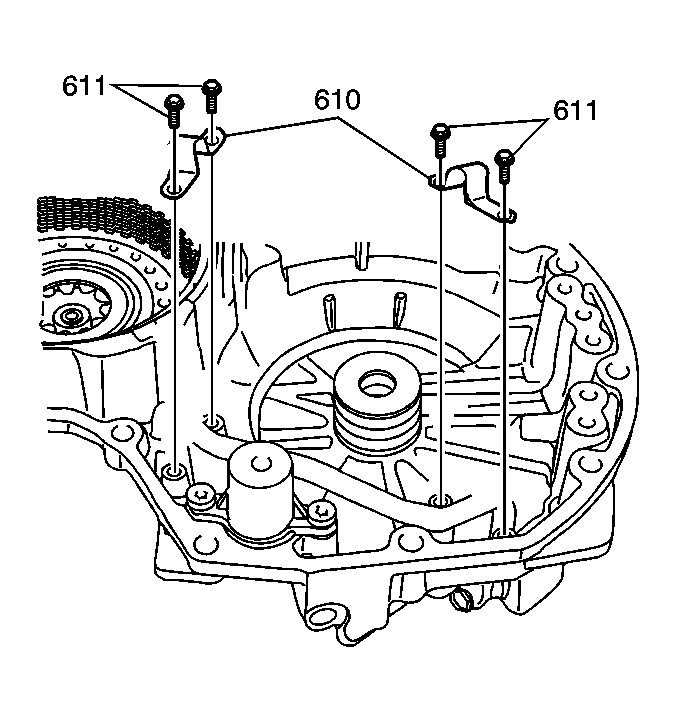

    Fig 1: View Of Clutch Apply Pipe Retainers
    GM749592Courtesy of GENERAL MOTORS CORP.
  1. Remove the 4, 4-5 clutch apply pipe bolts/screws (611) and the 2, 4-5 clutch apply pipe retainers (610) from the transmission case cover.

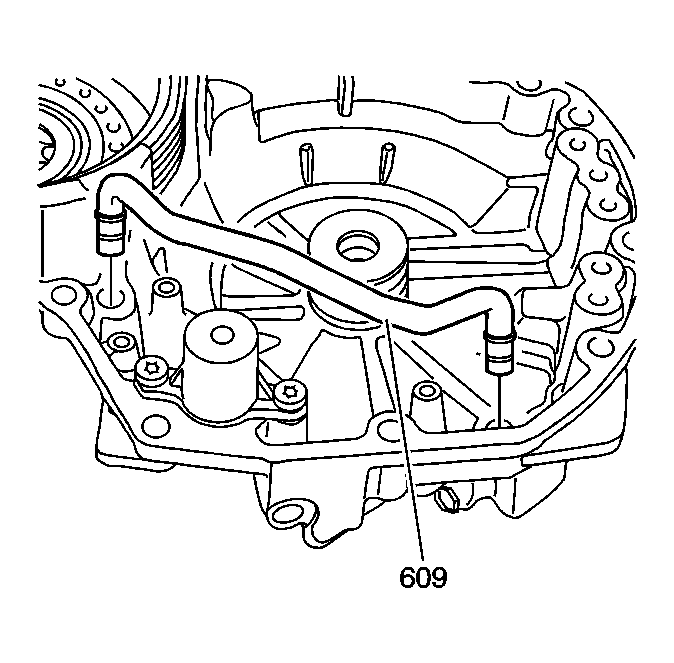

    2. Fig 2: View Of 4-5 Clutch Apply Pipe
    GM749593Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not damage the 4-5 clutch apply pipe or the transmission case cover.
  2. Remove the 4-5 clutch apply pipe (609).

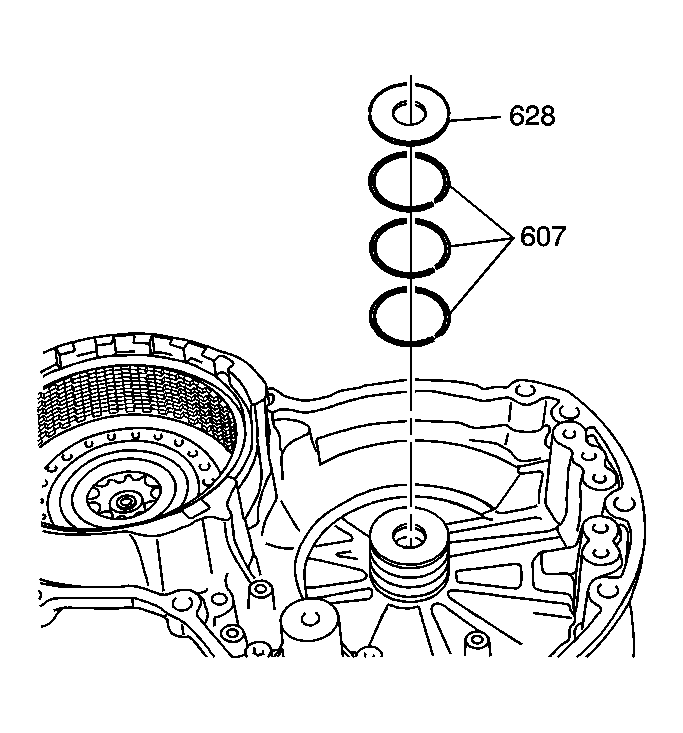

    3. Fig 3: View Of Forward/Direct Clutch Housing Thrust Bearing Race & Fluid Sealing Rings
    GM749803Courtesy of GENERAL MOTORS CORP.
  3. Remove the forward/direct clutch housing thrust bearing race (628) from the transmission case cover.
  4. Remove the 3 forward clutch housing fluid seal rings (607) from the transmission case cover.

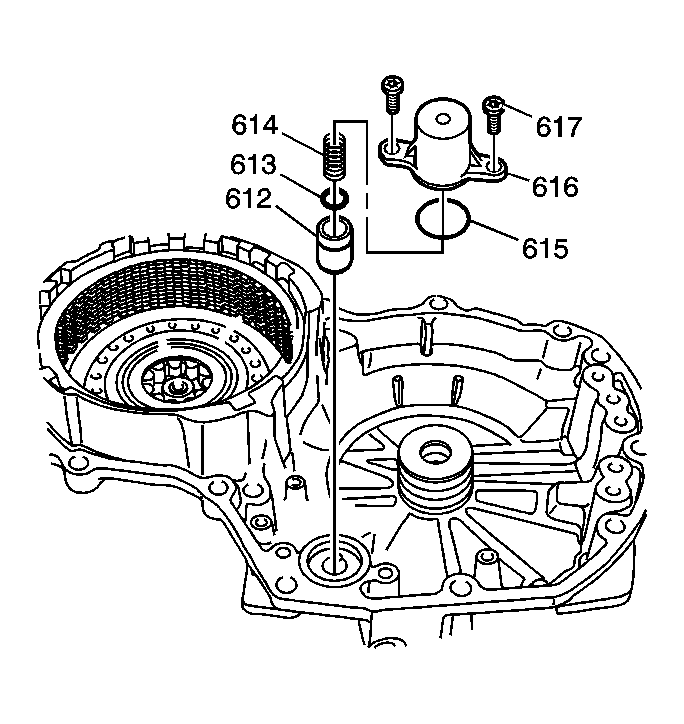

    5. Fig 4: Exploded View Of Forward Clutch Accumulator
    GM749596Courtesy of GENERAL MOTORS CORP.
  5. Remove the 2 forward clutch accumulator cover bolts/screws (617) and the forward clutch accumulator cover (616).
  6. Remove the following components from the forward clutch accumulator cover:
    • The forward clutch accumulator piston (612)
    • The forward clutch accumulator piston fluid seal ring (613)
    • The forward clutch accumulator piston spring (614)
    • The forward clutch accumulator cover seal (615)
