Removal & Installation (Passenger-side)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove glove box light electrical connector. Remove glove box. Remove Connector Position Assurance (CPA) clip from passenger-side air bag module connector and disconnect connector.
Remove passenger-side air bag module nuts. Remove passenger-side air bag module. See Fig 3.
To install, reverse removal procedure. Tighten air bag module nuts and glove box screws to specification. See TORQUE SPECIFICATIONS . Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Check system for proper operation. See SYSTEM OPERATION CHECK .

Fig 1: Identifying Air Bag Module Remover

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Driver-side Air Bag Module

Courtesy of GENERAL MOTORS CORP.

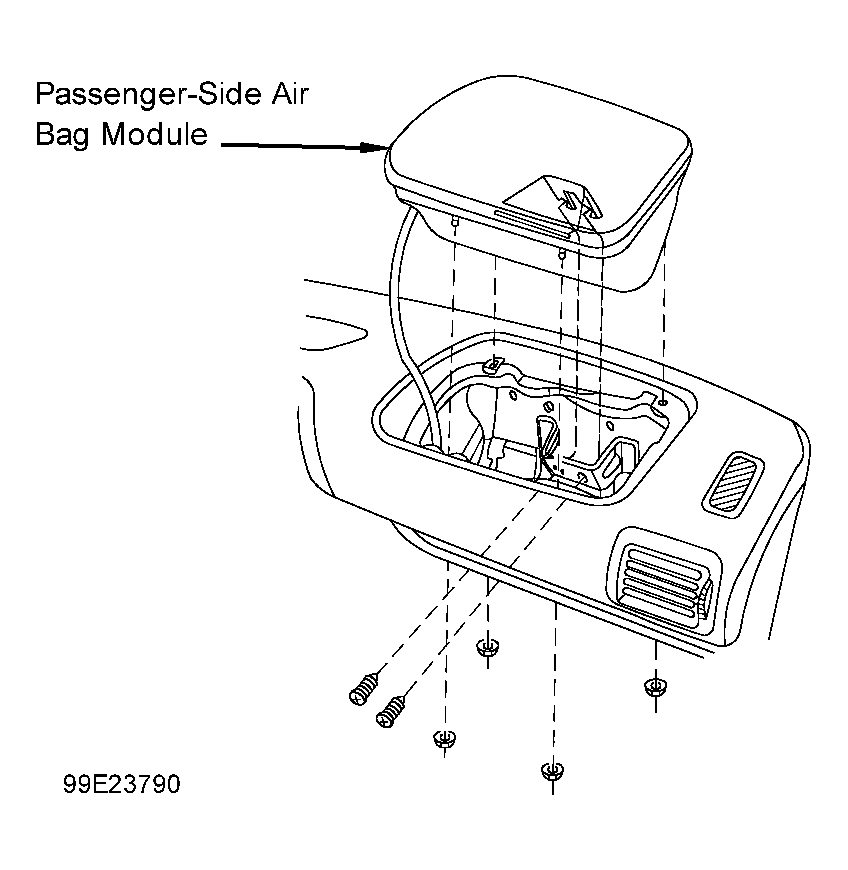

Fig 3: Identifying Passenger-side Air Bag Module

Courtesy of GENERAL MOTORS CORP.
